Display with Touch Screen

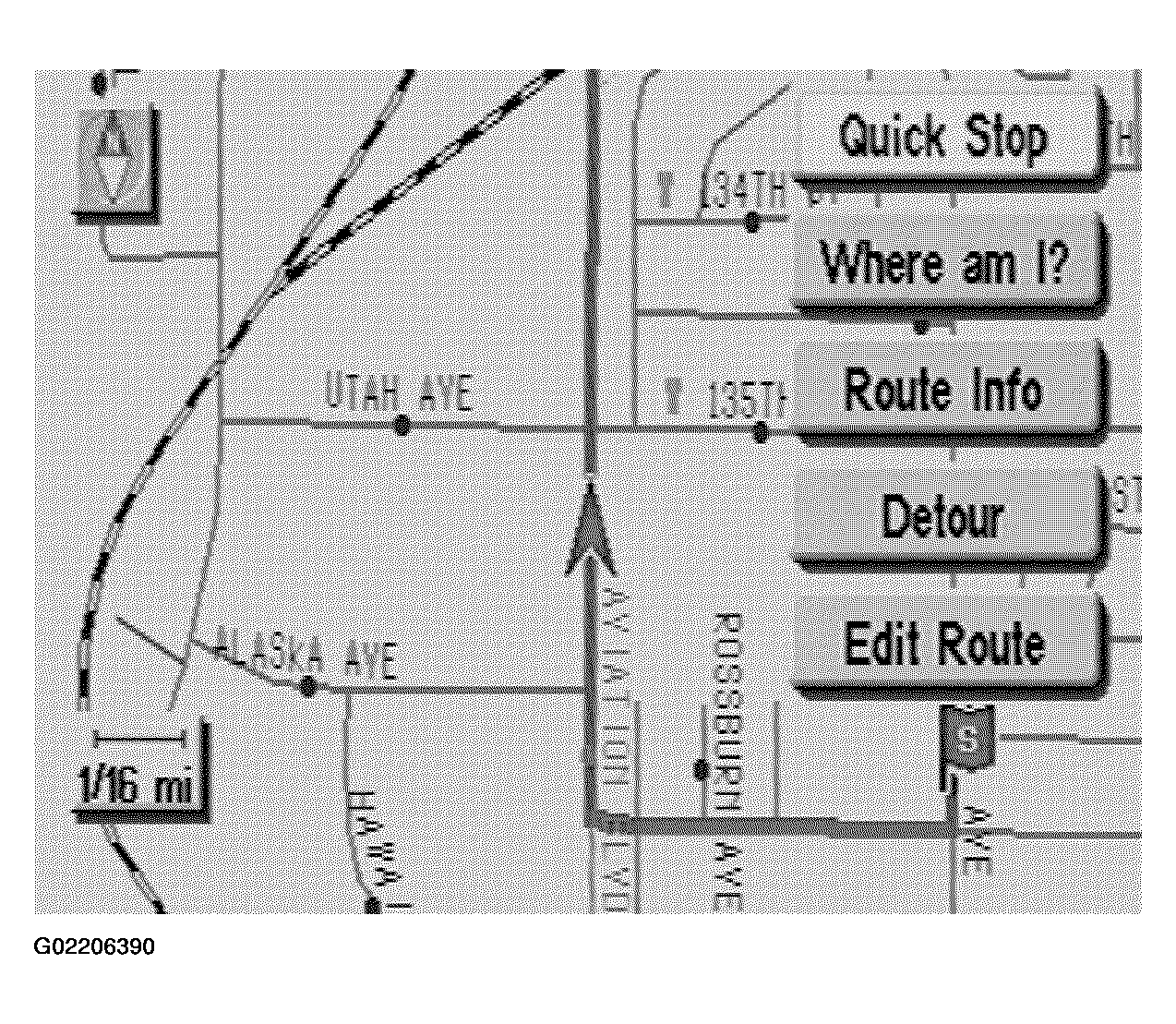

Fig 1: Display With Touch Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
The function of each touch switch is as follows:

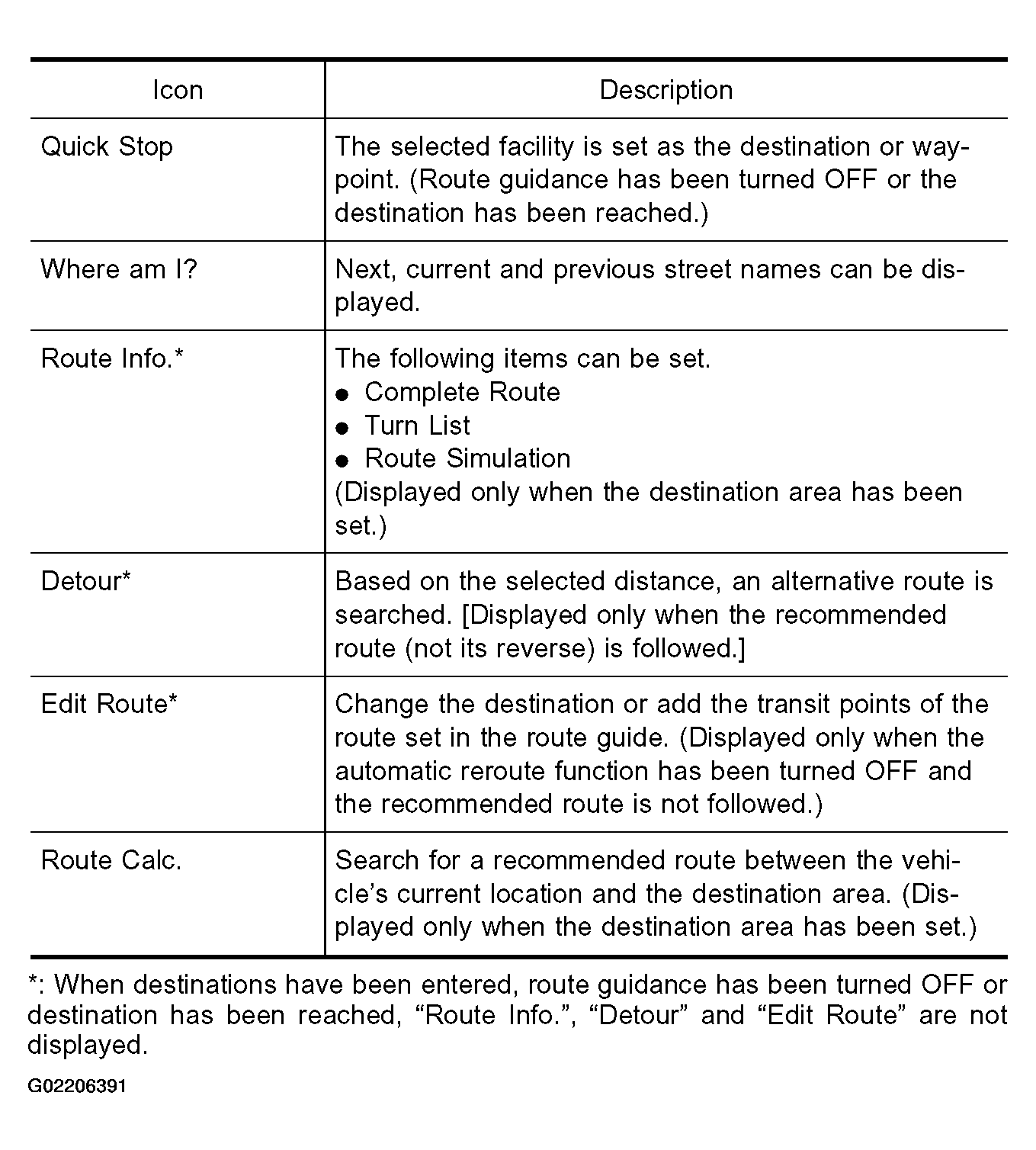

Fig 2: Function Table Of Touch Switch (Touch Screen)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
