Inspection Of Transfer Control Unit

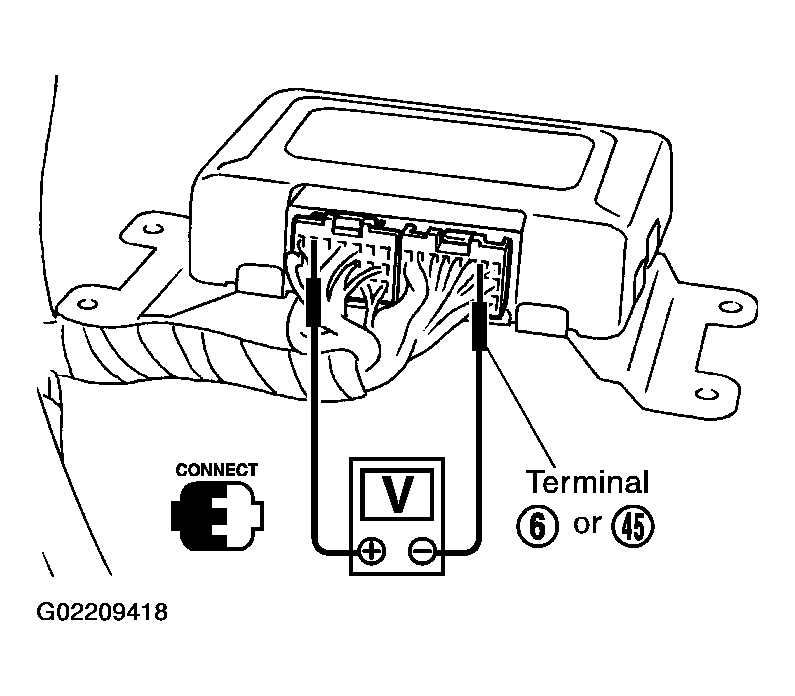

Measure voltage between each terminal and terminal 6 or 45 by following
TRANSFER CONTROL UNIT INSPECTION TABLE
.
Fig 1: Inspecting Transfer Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

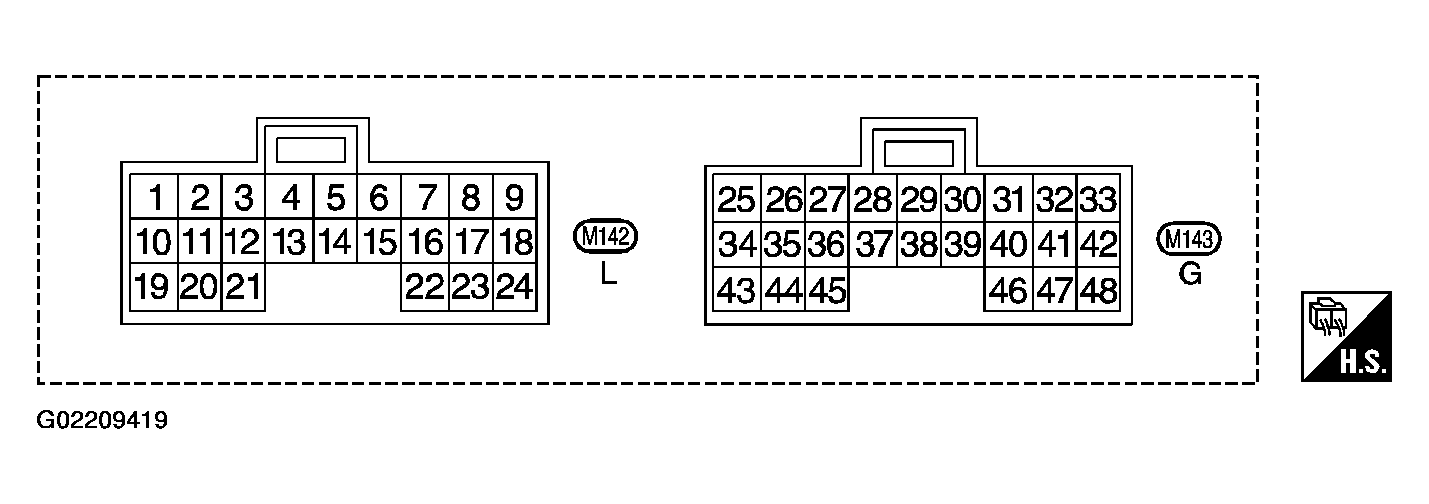

Pin connector terminal layout
Fig 2: Displaying Connectors Terminal Location
Courtesy of NISSAN MOTOR CO., U.S.A.
