Removal And Installation Of Transfer Control Unit: Removal

Turn ignition switch OFF and disconnect negative battery terminal.
Remove console box.
Remove cluster lid C.
Remove audio assembly and A/C control unit.
Remove instrument lower panel on driver side.
Remove glove box.
Remove instrument lower panel on passenger side.
Remove instrument lower center panel.
Remove transfer control unit.
- For steps 2 through 8 above, refer to INSTRUMENT PANEL ASSEMBLY .

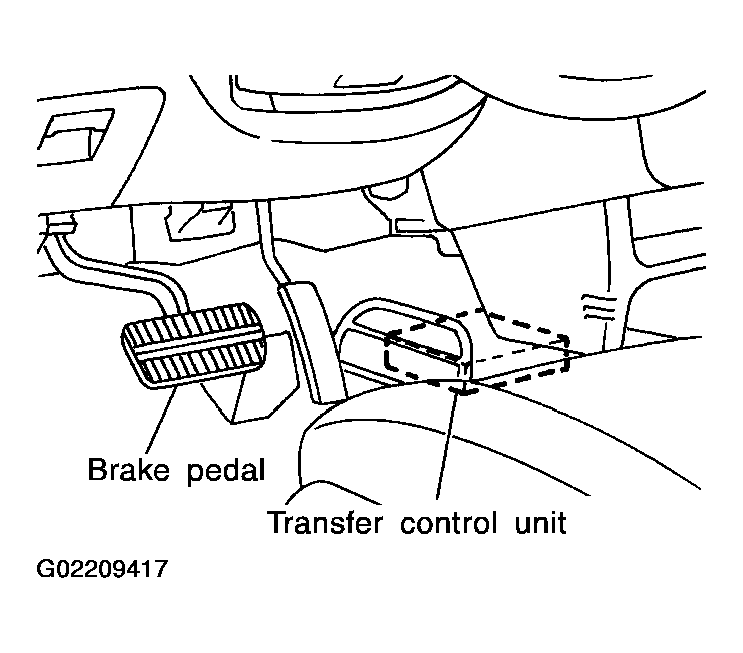

  Fig 1: Locating Transfer Control Unit
  Courtesy of NISSAN MOTOR CO., U.S.A.
