Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector for CONSULT-II.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.

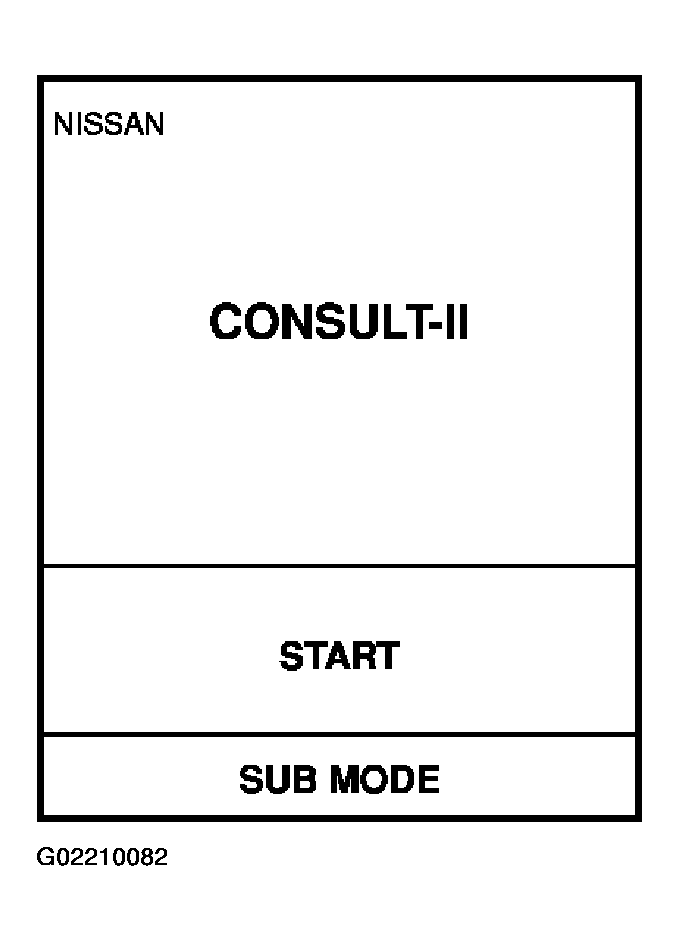

    Fig 1: Displaying "START" Menu On CONSULT-II Screen
    G02210082Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".

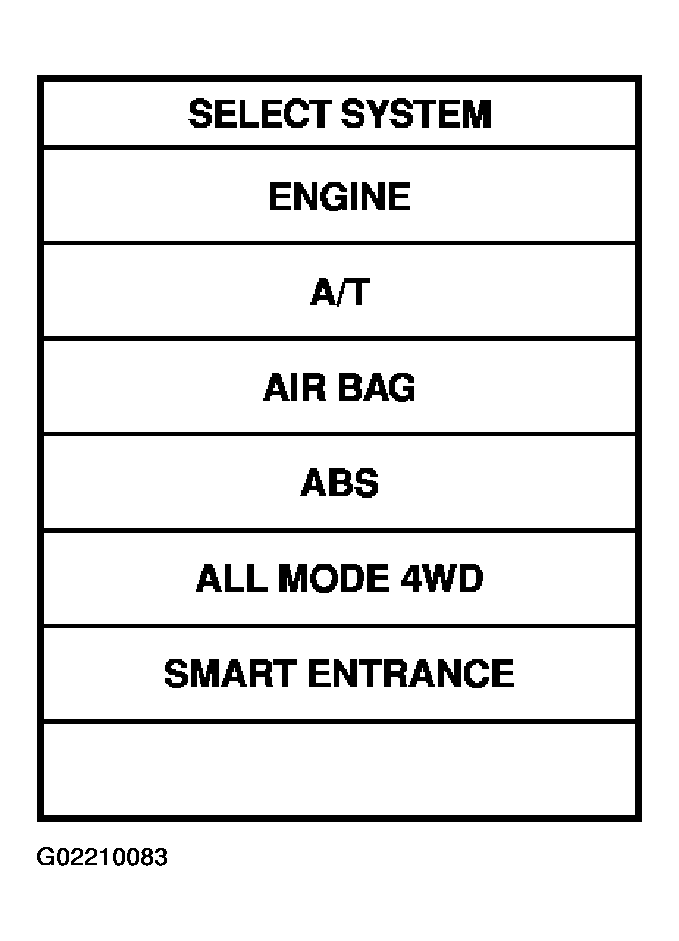

    Fig 2: Displaying Touch "ABS" Menu
    G02210083Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

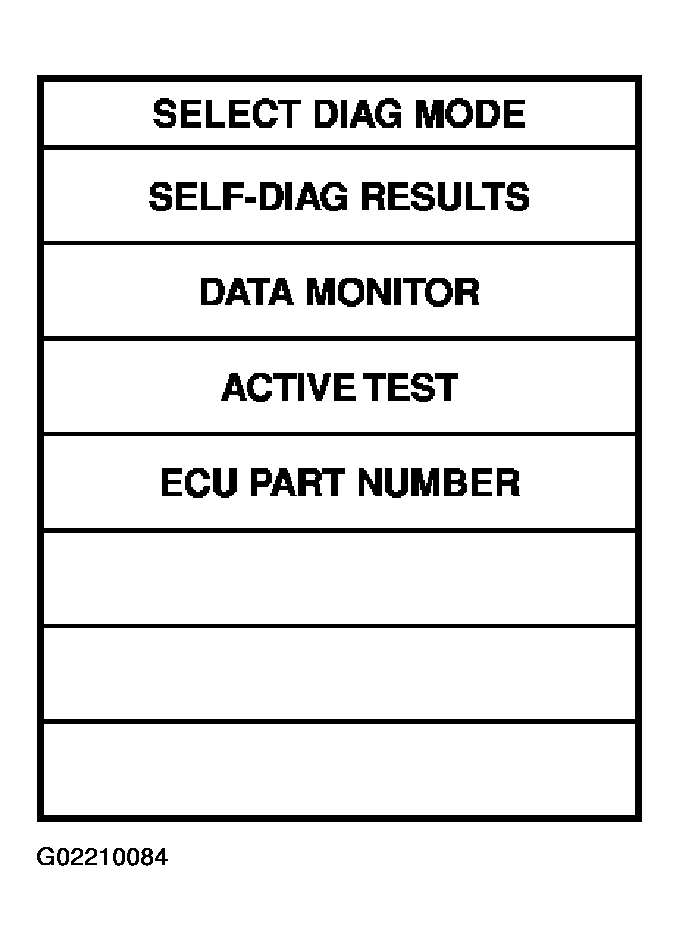

    Fig 3: Displaying Touch "DATA MONITOR" Menu
    G02210084Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.

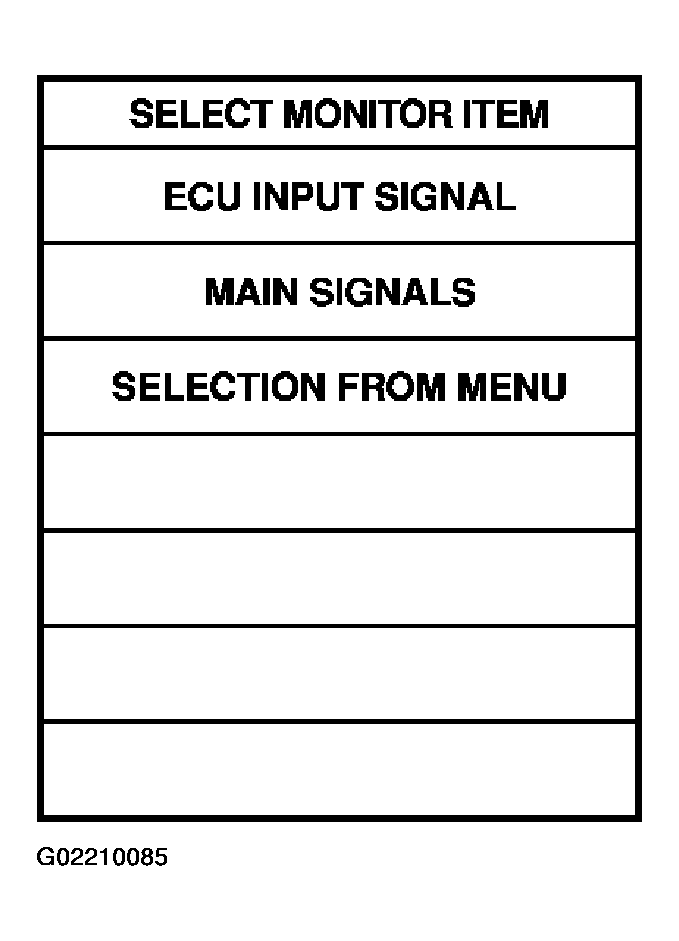

    Fig 4: Displaying Touch "SETTING" On "SELECT MONITOR ITEM" Screen Menu
    G02210085Courtesy of NISSAN MOTOR CO., U.S.A.
