Checking Fluid Level

Check fluid level.

Use the correct range of the dipstick depending on the fluid temperature. Use the "HOT" range at 50 to 80°C (122 to 176°F), or the "COLD" range at 0 to 30°C (32 to 86°F).

CAUTION:
  • Do not overfill.
  • Recommended fluid is Genuine Nissan PSF II or equivalent.

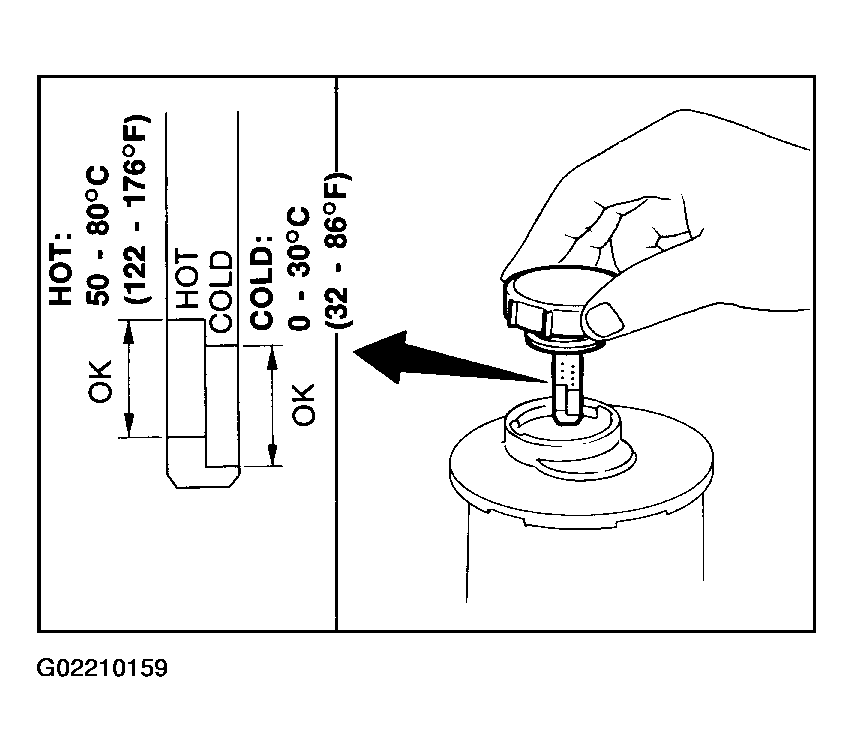

    Fig 1: Checking Fluid Level
    G02210159Courtesy of NISSAN MOTOR CO., U.S.A.
