KEYFOB Battery And Function Check

CHECK KEYFOB BATTERY
Remove battery (refer to KEYFOB BATTERY REPLACEMENT ) and measure voltage across battery positive and negative terminals, (+) and (-).

Voltage [V]:

2.5 - 3.0

NOTE: Keyfob does not function if battery is not set correctly.

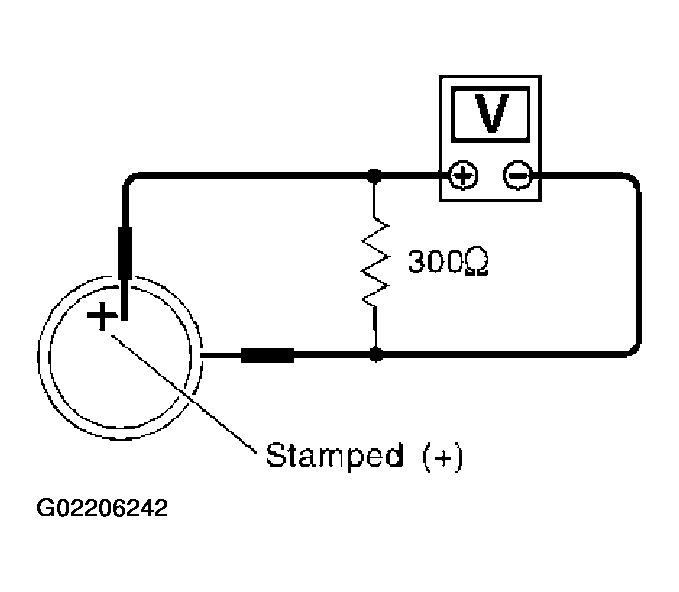

Fig 1: Checking Keyfob Battery
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 2.
2. NG: Replace battery. (Refer to KEYFOB BATTERY REPLACEMENT )
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function ("LK BUTTON/SIG", "UN BUTTON/SIG", "PANIC BTN", "UN BUTTON ON" and "LK/UN BTN ON") in "DATA MONITOR" mode with CONSULT-II.

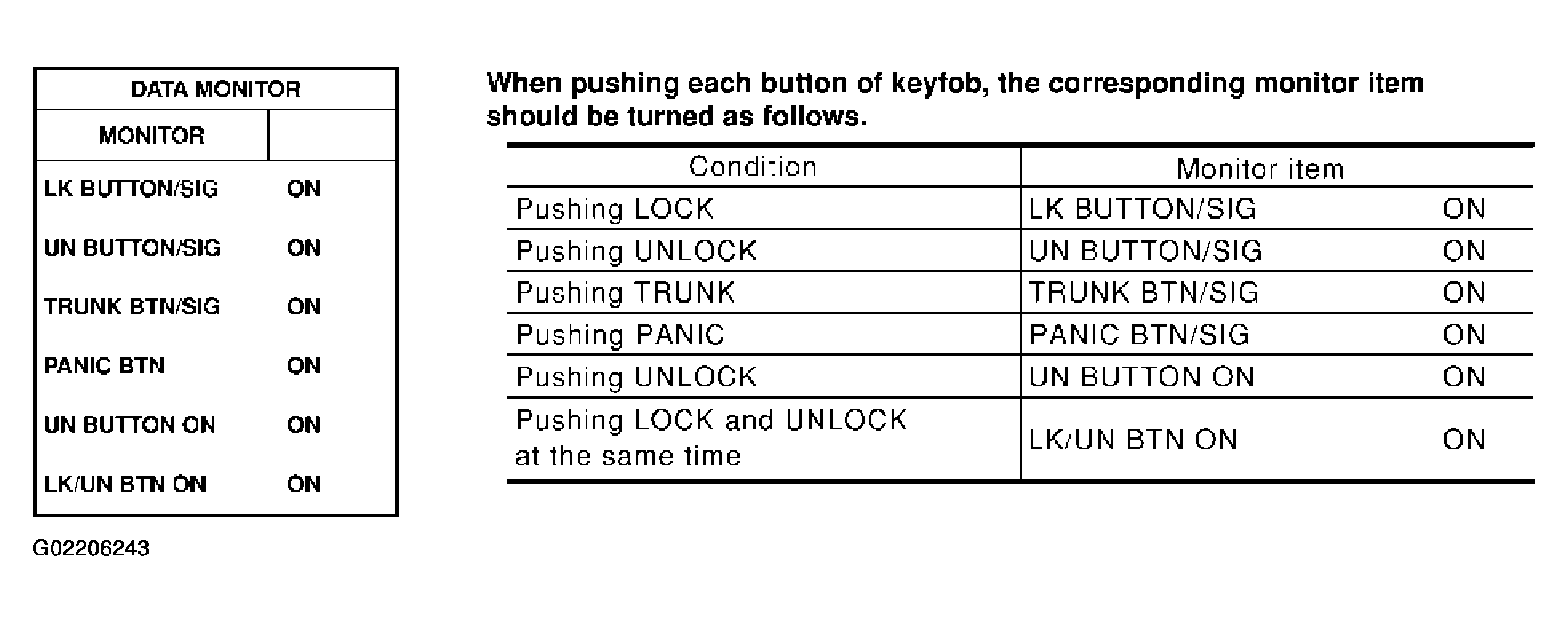

Fig 2: Checking Keyfob Function
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Even though TRUNK BTN/SIG is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.

OK or NG
1. OK: Keyfob is OK. Further inspection is necessary. Refer to "SYMPTOM CHART " .
2. NG: Replace keyfob. Refer to ID Code Entry Procedure. (ID CODE ENTRY PROCEDURE )
