Service Data And Specifications (SDS): Starter

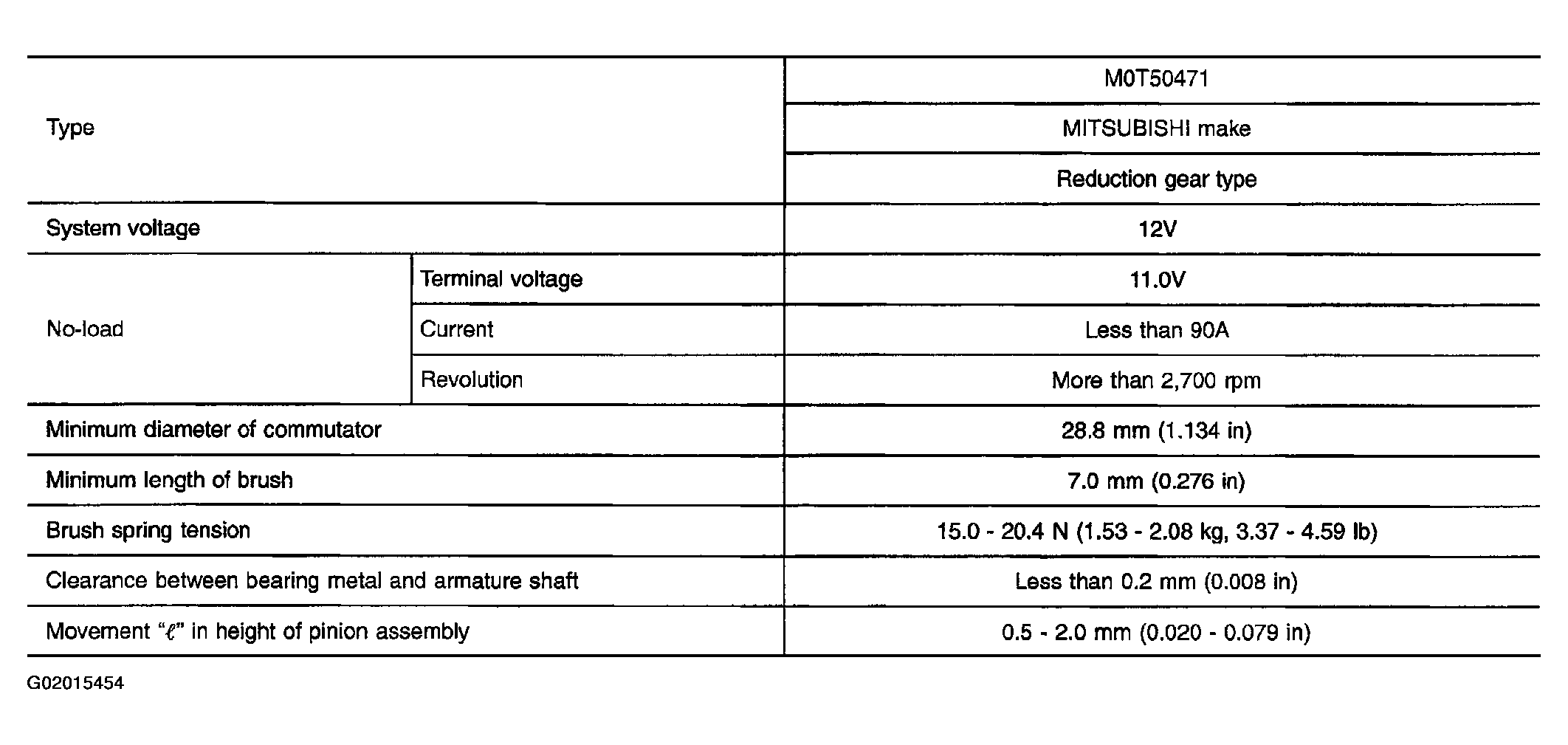

Fig 1: Starter Specifications

G02015454

Courtesy of NISSAN MOTOR CO., U.S.A.
