Selecting The Memorized Position

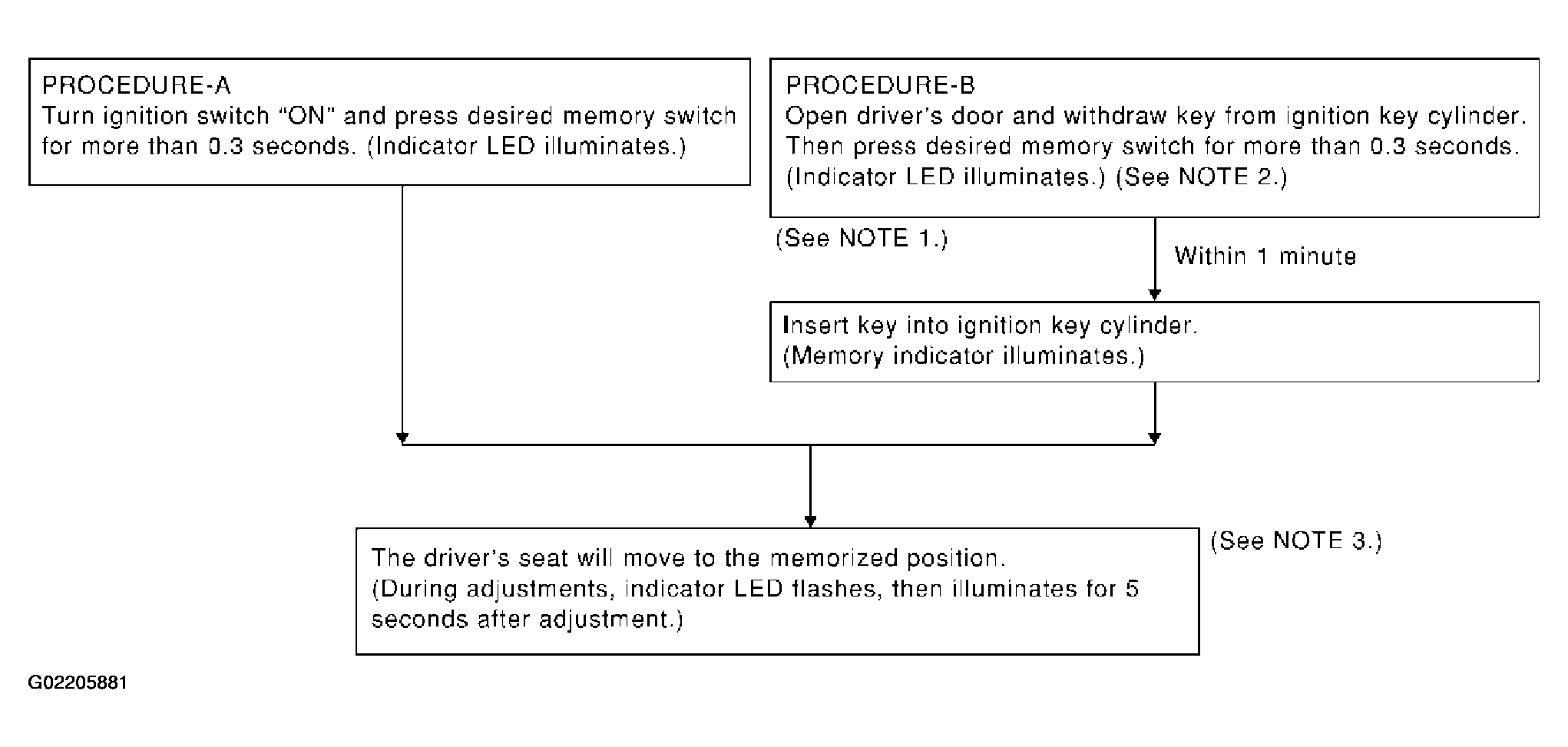

Fig 1: Memorized Position Selection Flow Diagram
G02205881Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  1. Do not keep cancel switch pressed as it will not operate.
  2. Automatic exiting setting will be performed.
  3. The driver's seat position (see the following Table) operates in the order of priority.

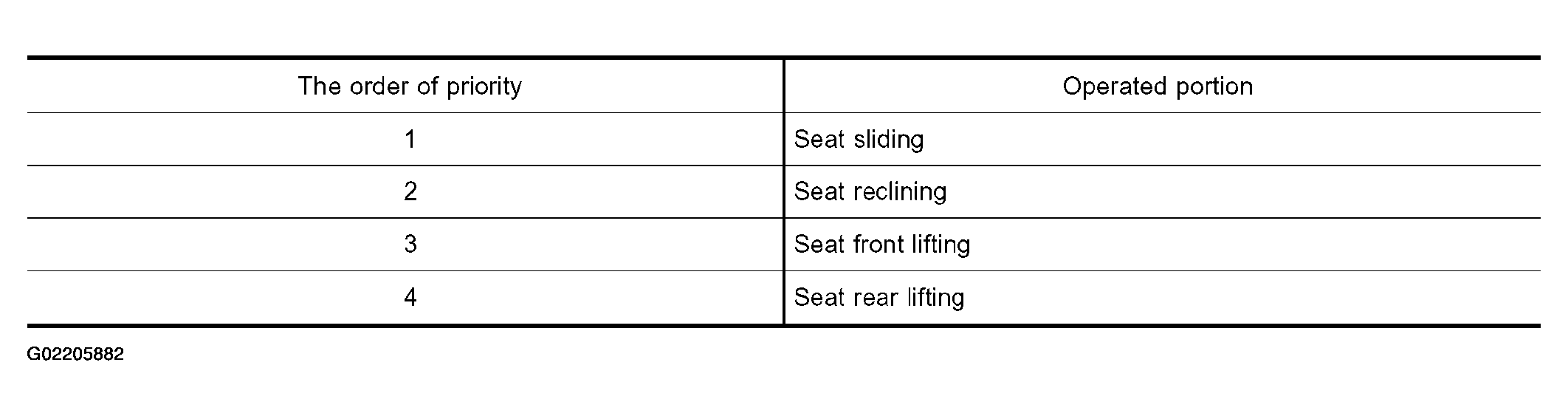

Fig 2: Driver Seat Position Priority Order Chart
G02205882Courtesy of NISSAN MOTOR CO., U.S.A.
