All-Mode 4WD Transfer Basic Control

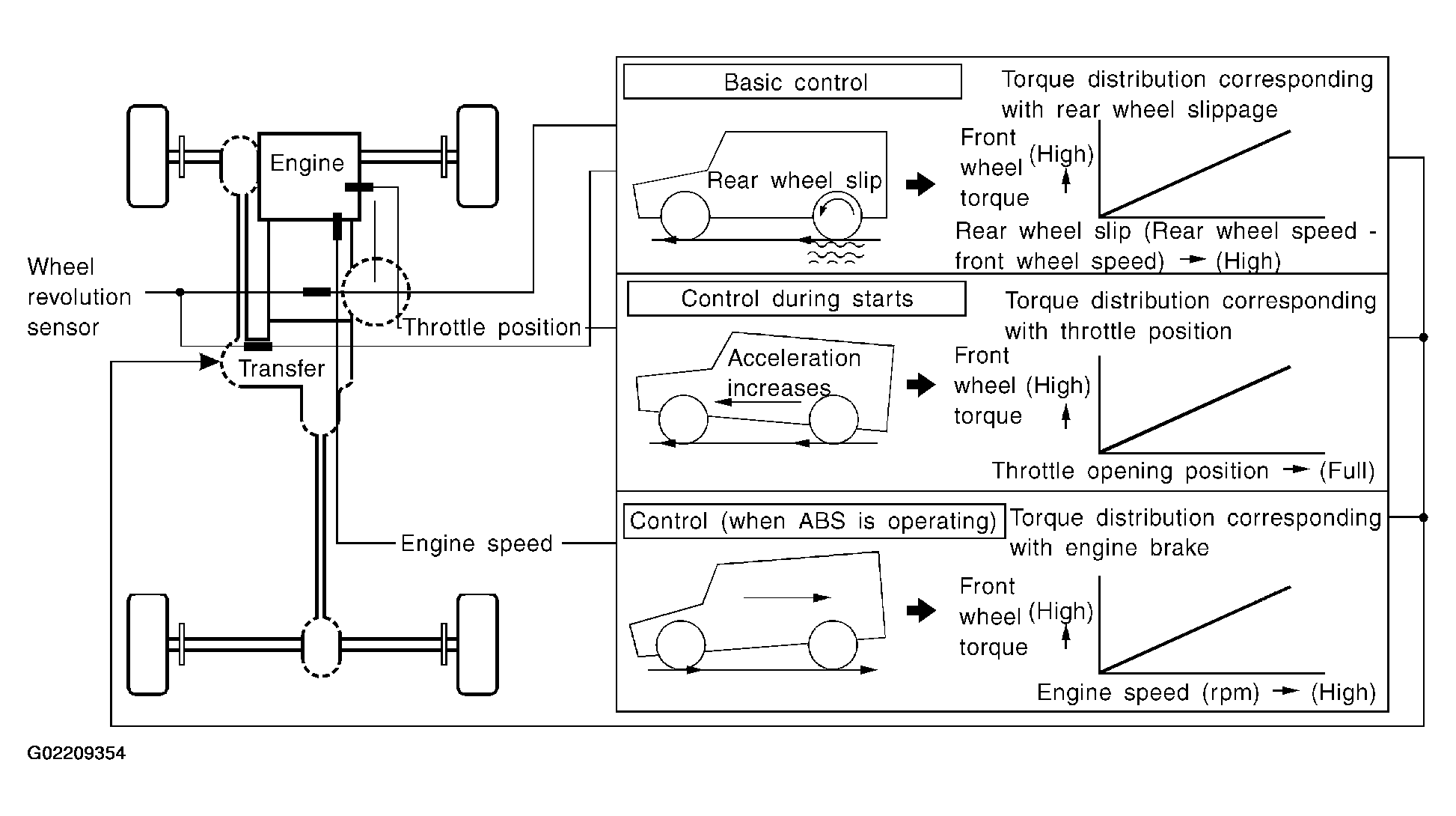

Fig 1: Displaying All-Mode 4WD Transfer Basic Control
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
