Control System: Notes

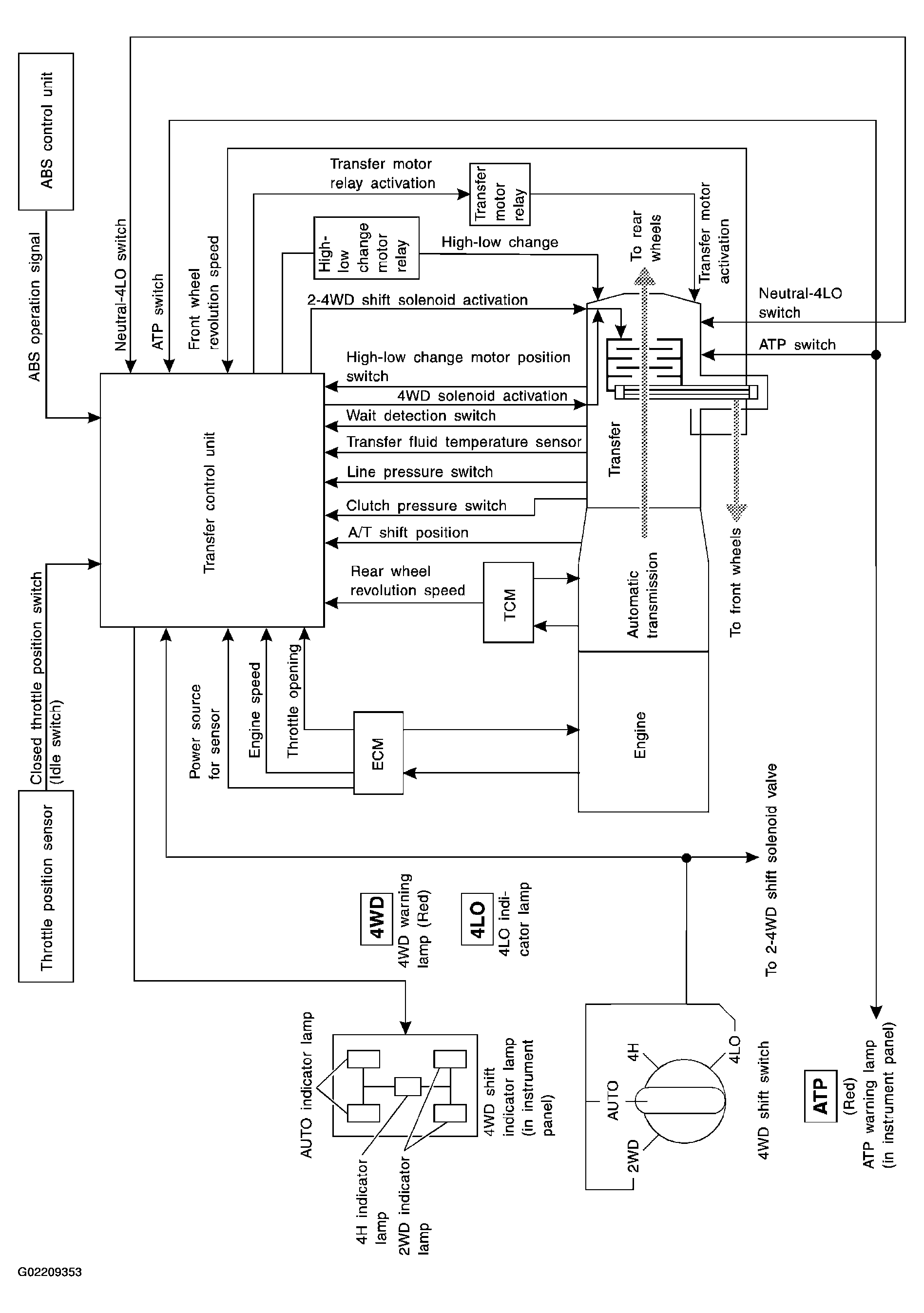

Fig 1: Displaying Control System Of All-Mode 4WD System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
