Front Revolution Sensor

Measure resistance between terminals of front revolution sensor sub-harness connector located on rear-right of transfer unit.

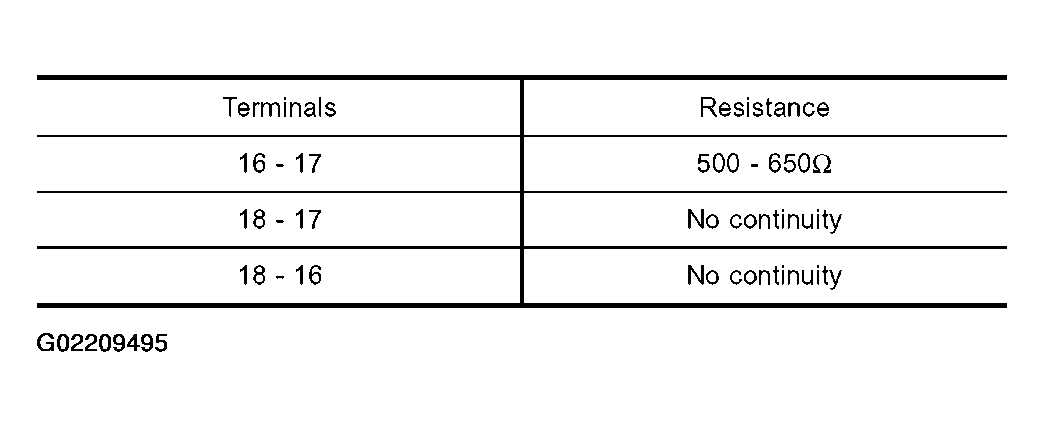

Fig 1: Displaying Terminal Resistance Table

Courtesy of NISSAN MOTOR CO., U.S.A.

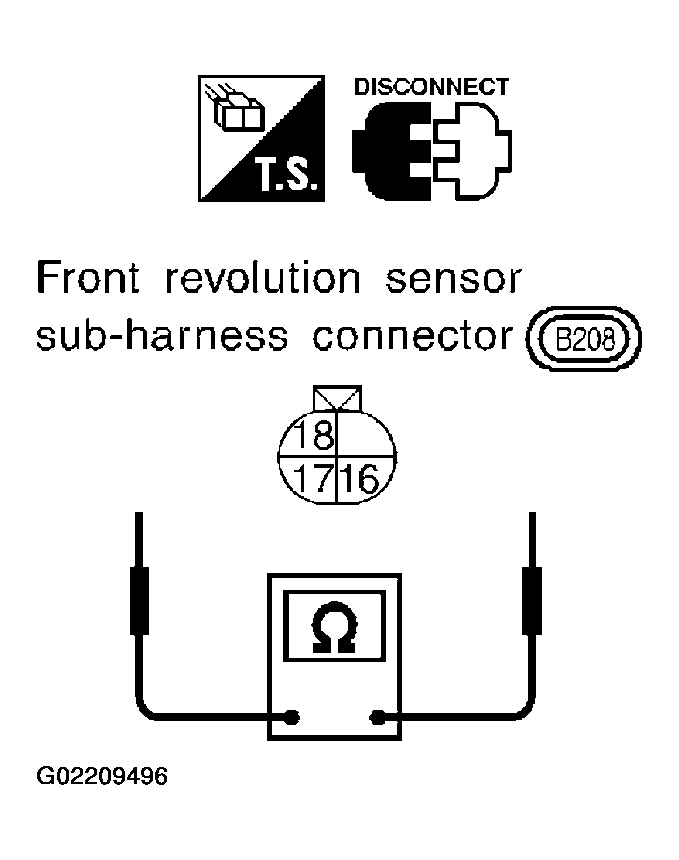

Fig 2: Checking Front Revolution Sensor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
