Control Valve: Valve

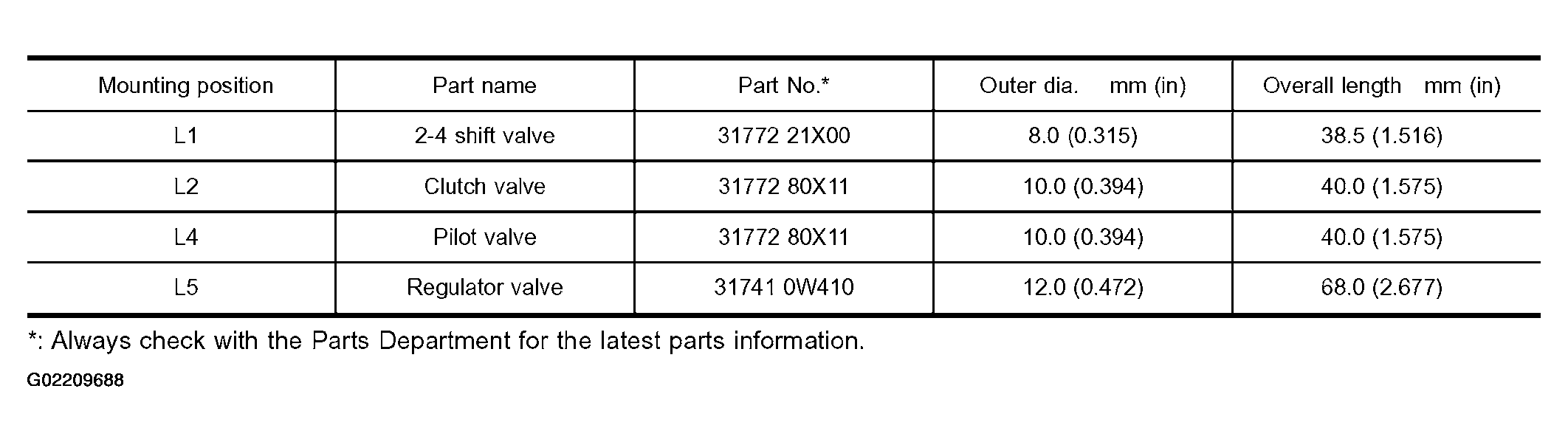

Fig 1: Control Valve Specifications
G02209688Courtesy of NISSAN MOTOR CO., U.S.A.
