Data Are Reference Values

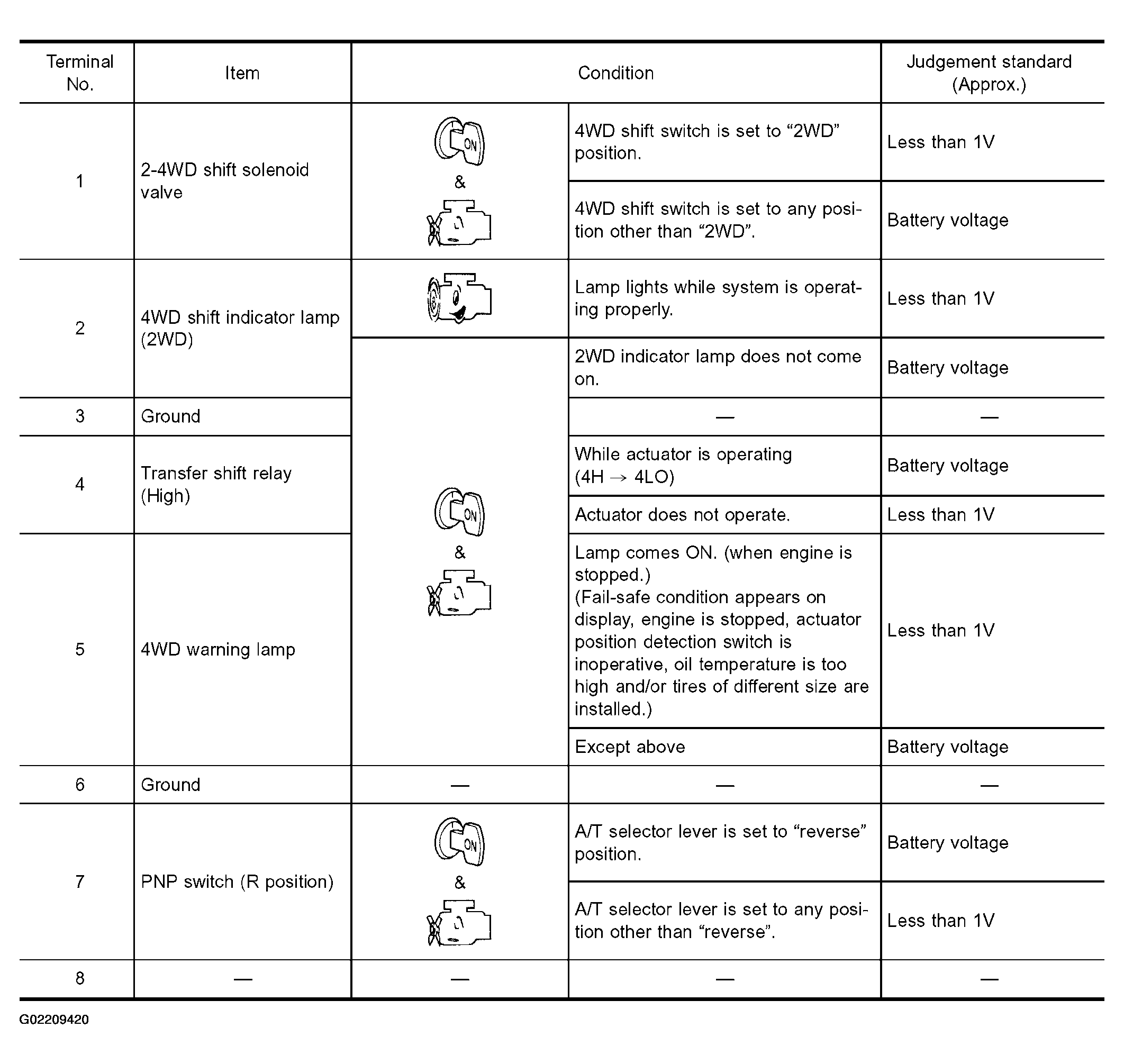

Fig 1: Displaying Transfer Control Unit Inspection Table (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

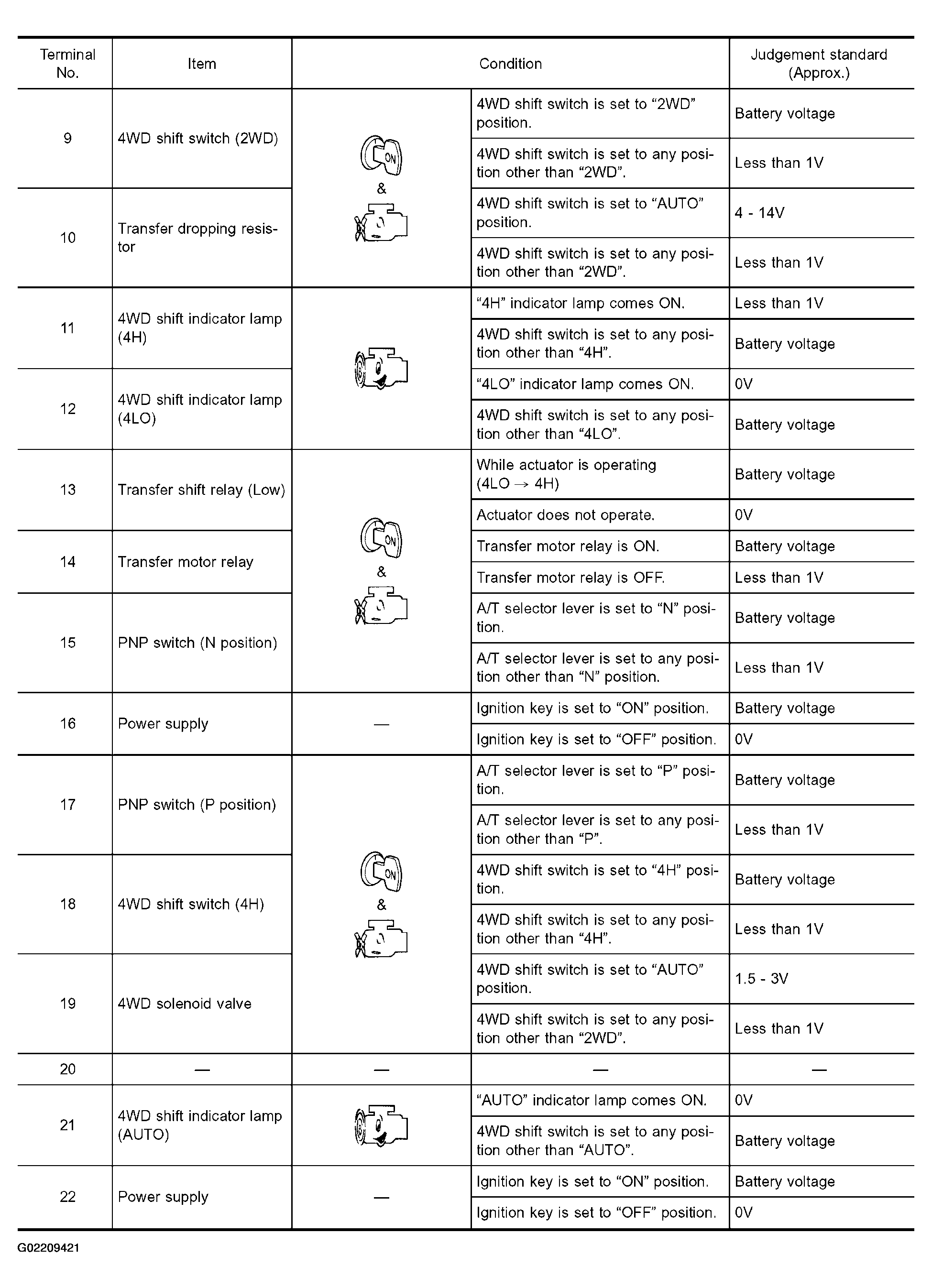

Fig 2: Displaying Transfer Control Unit Inspection Table (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

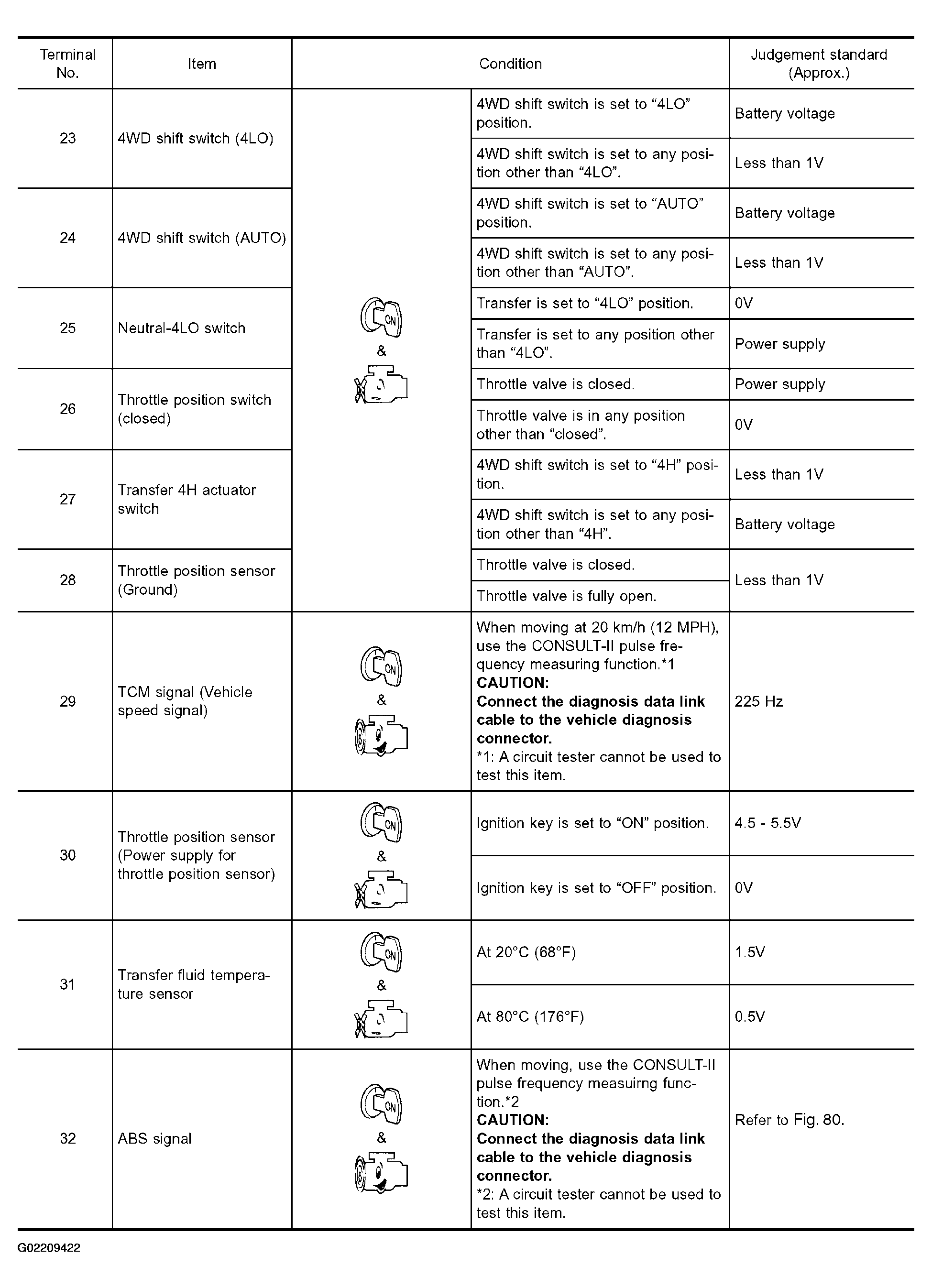

Fig 3: Displaying Transfer Control Unit Inspection Table (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

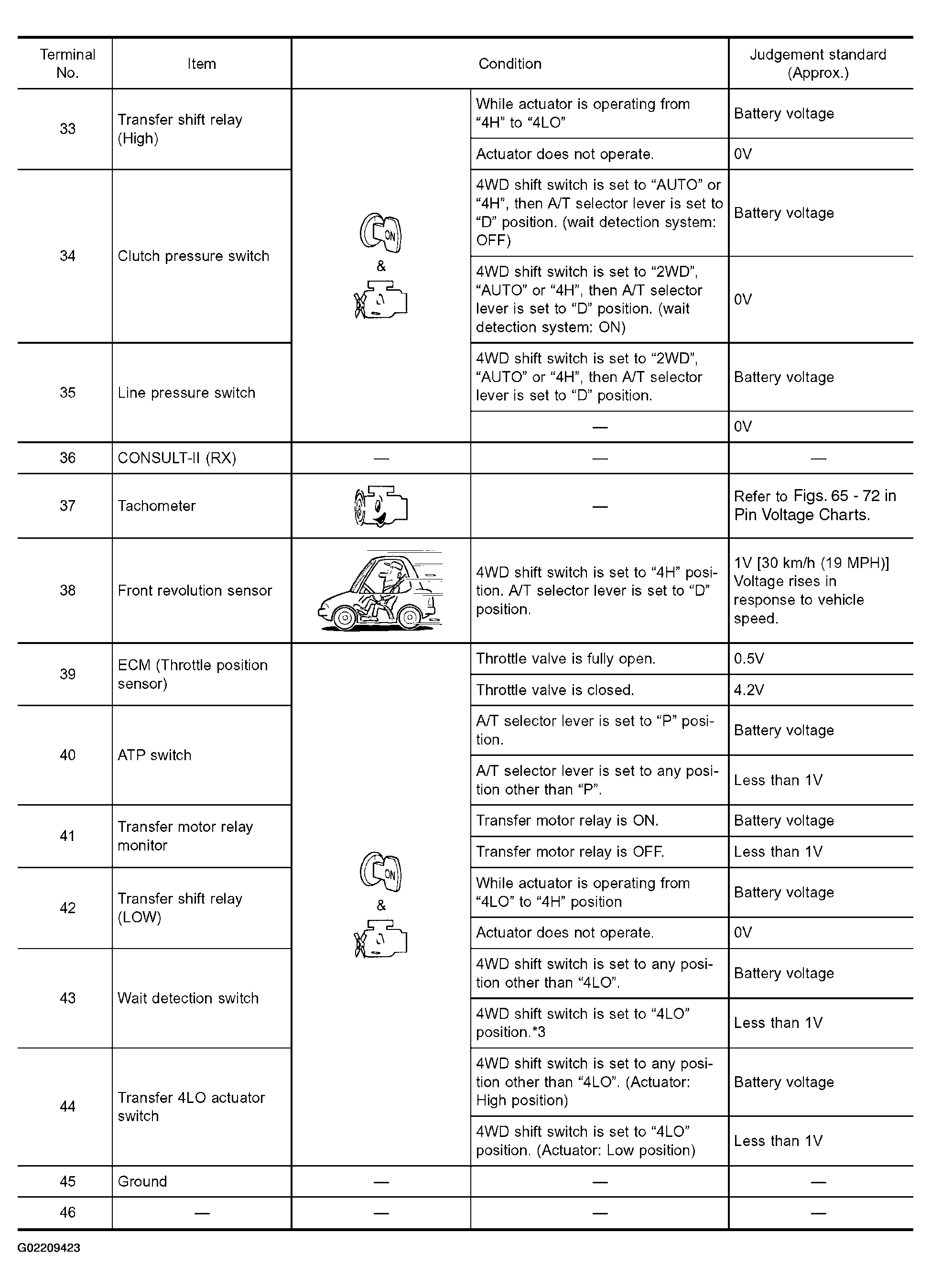

Fig 4: Displaying Transfer Control Unit Inspection Table (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

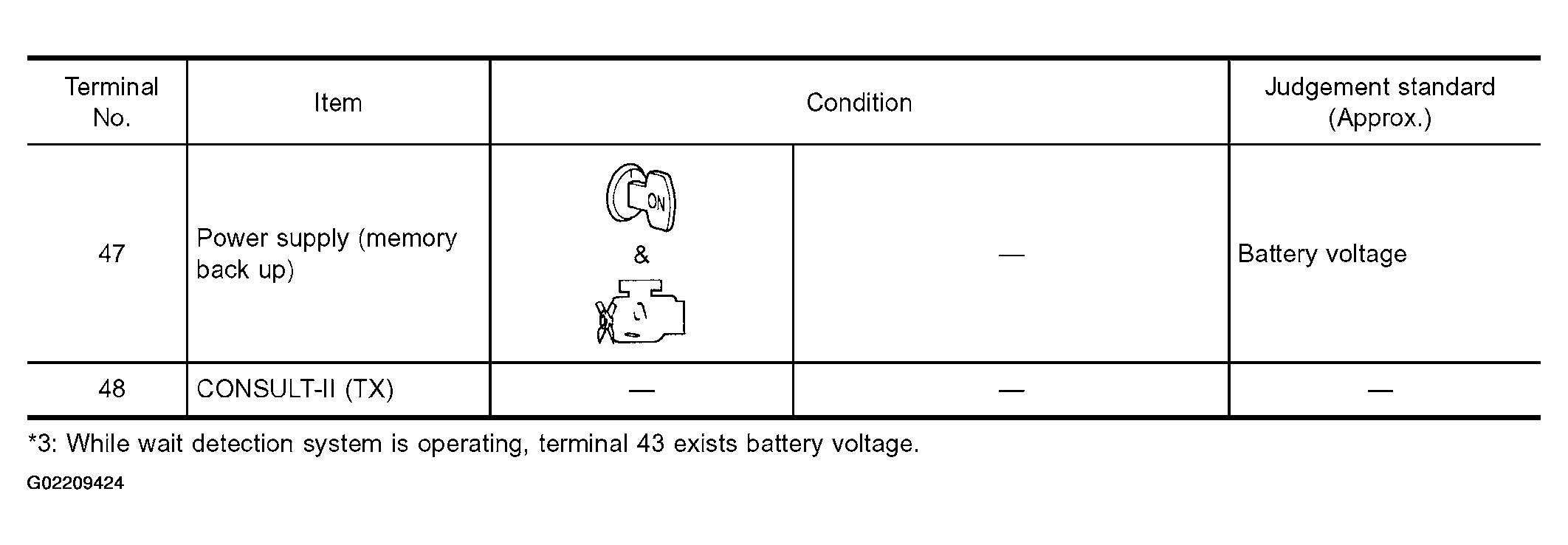

Fig 5: Displaying Transfer Control Unit Inspection Table (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

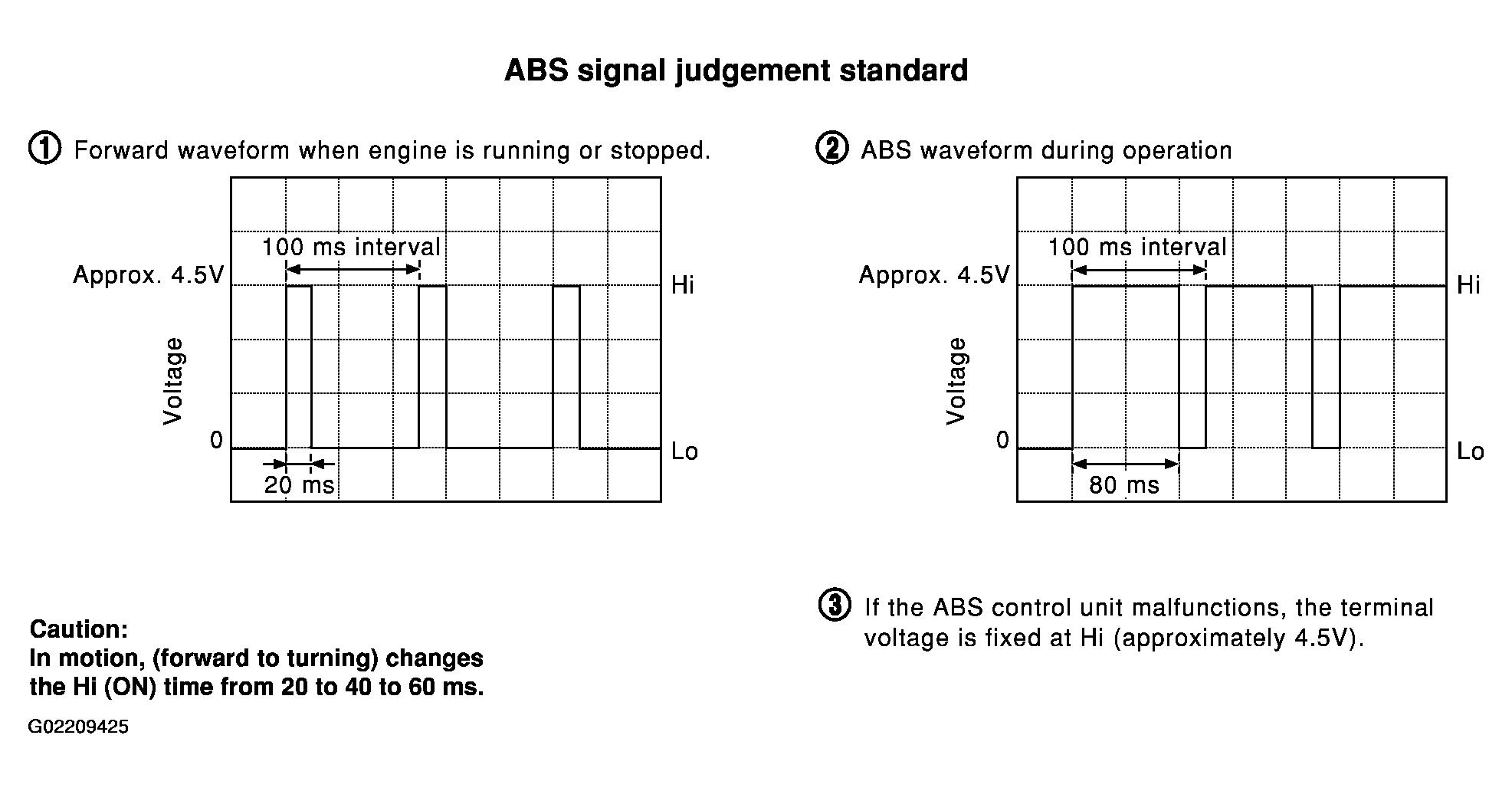

Fig 6: Displaying ABS Signal Judgement Standard Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
