Terminals And Reference Value For Steering Lock Unit

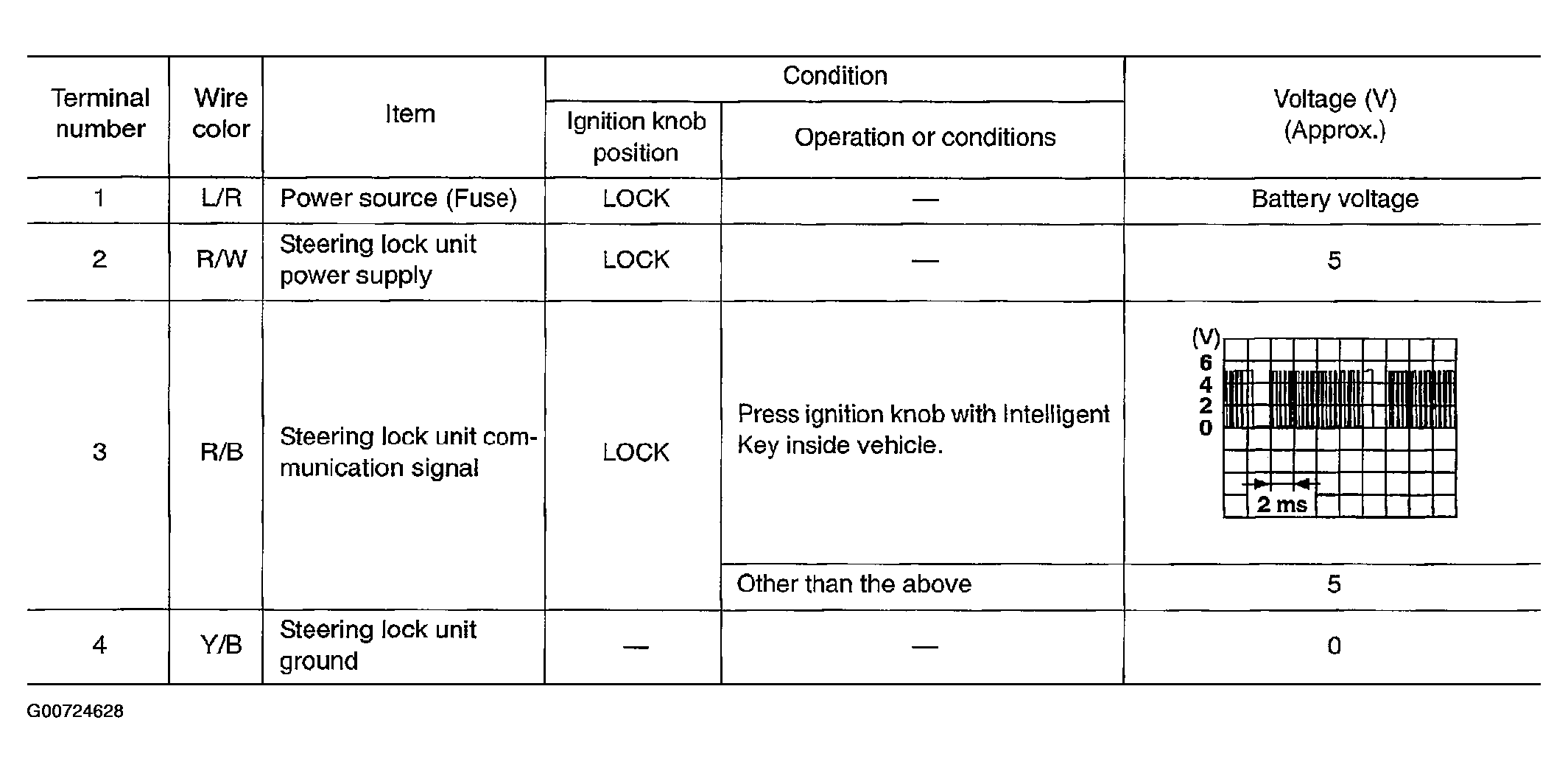

Fig 1: Terminals And Reference Value For Steering Lock Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
