Input/Output Signal Chart

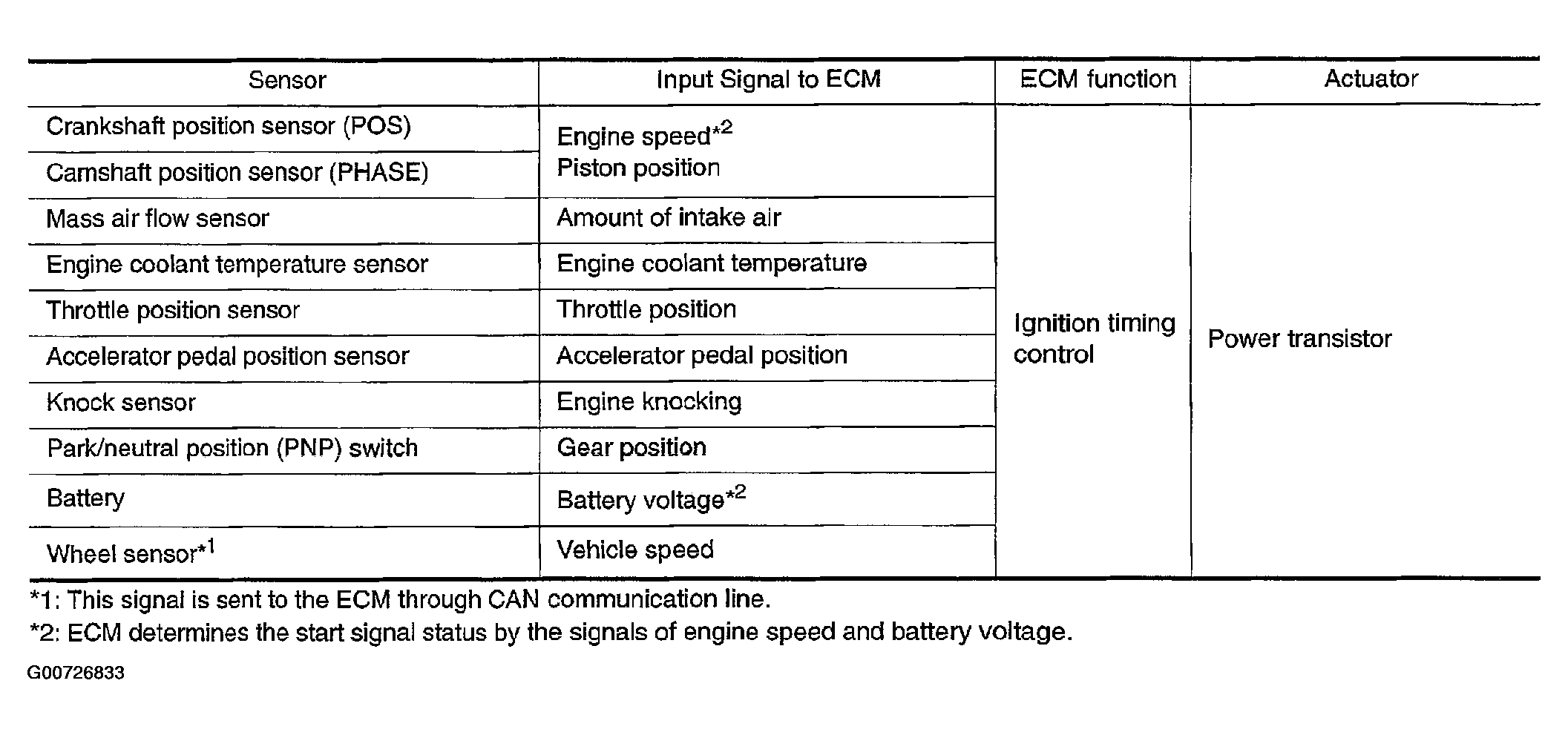

Fig 1: Identifying Sensors Used To Control Power Transistor
G00726833Courtesy of NISSAN MOTOR CO., U.S.A.
