Function Of Control Valve

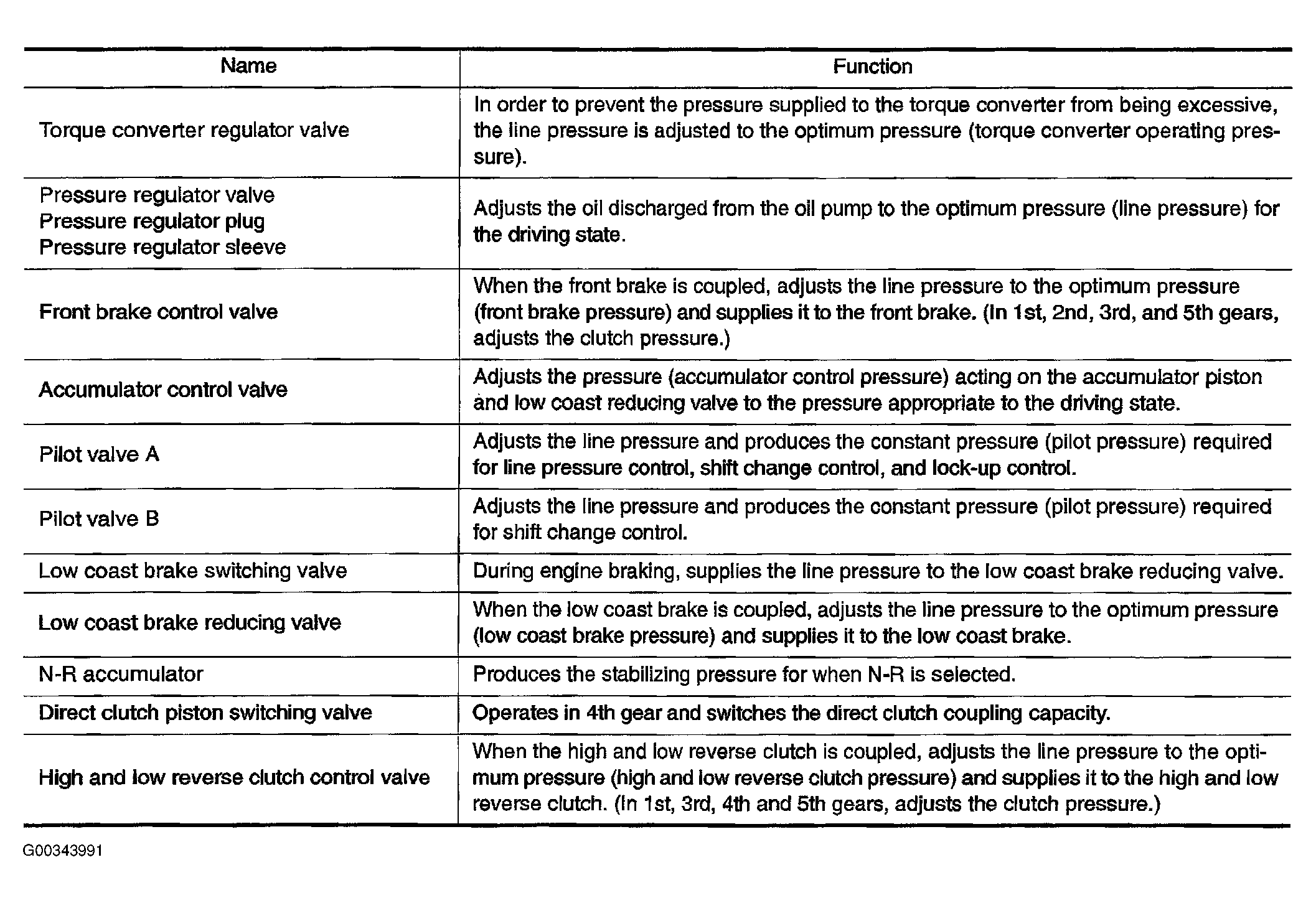

Fig 1: Identifying Control Valve Functions (1 Of 2)
G00343991Courtesy of NISSAN MOTOR CO., U.S.A.

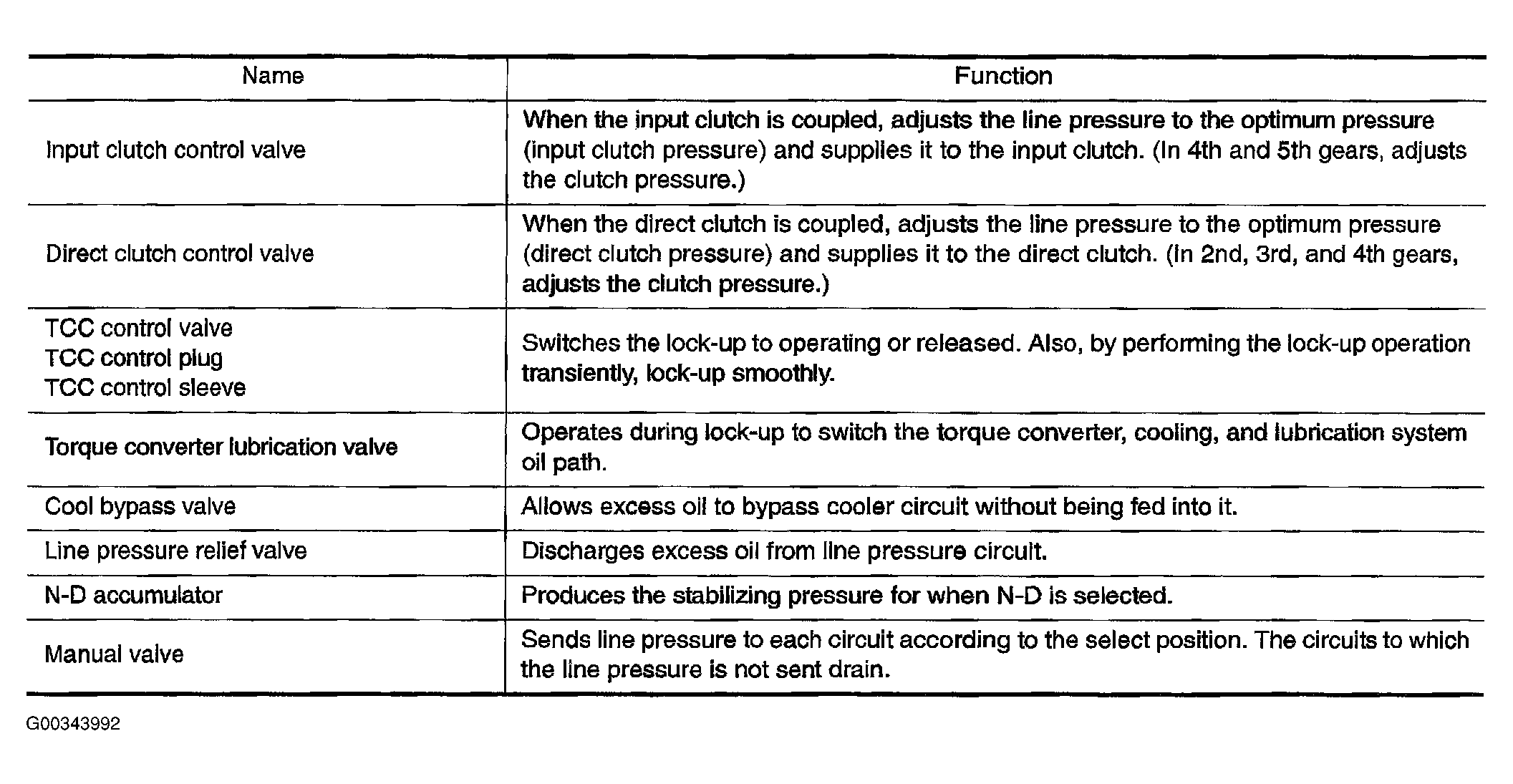

Fig 2: Identifying Control Valve Functions (2 Of 2)
G00343992Courtesy of NISSAN MOTOR CO., U.S.A.
