Removal and Installation of BCM: Removal

Remove the dash side finisher (LH). Refer to BODY SIDE TRIM .
Disconnect BCM connector.
Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

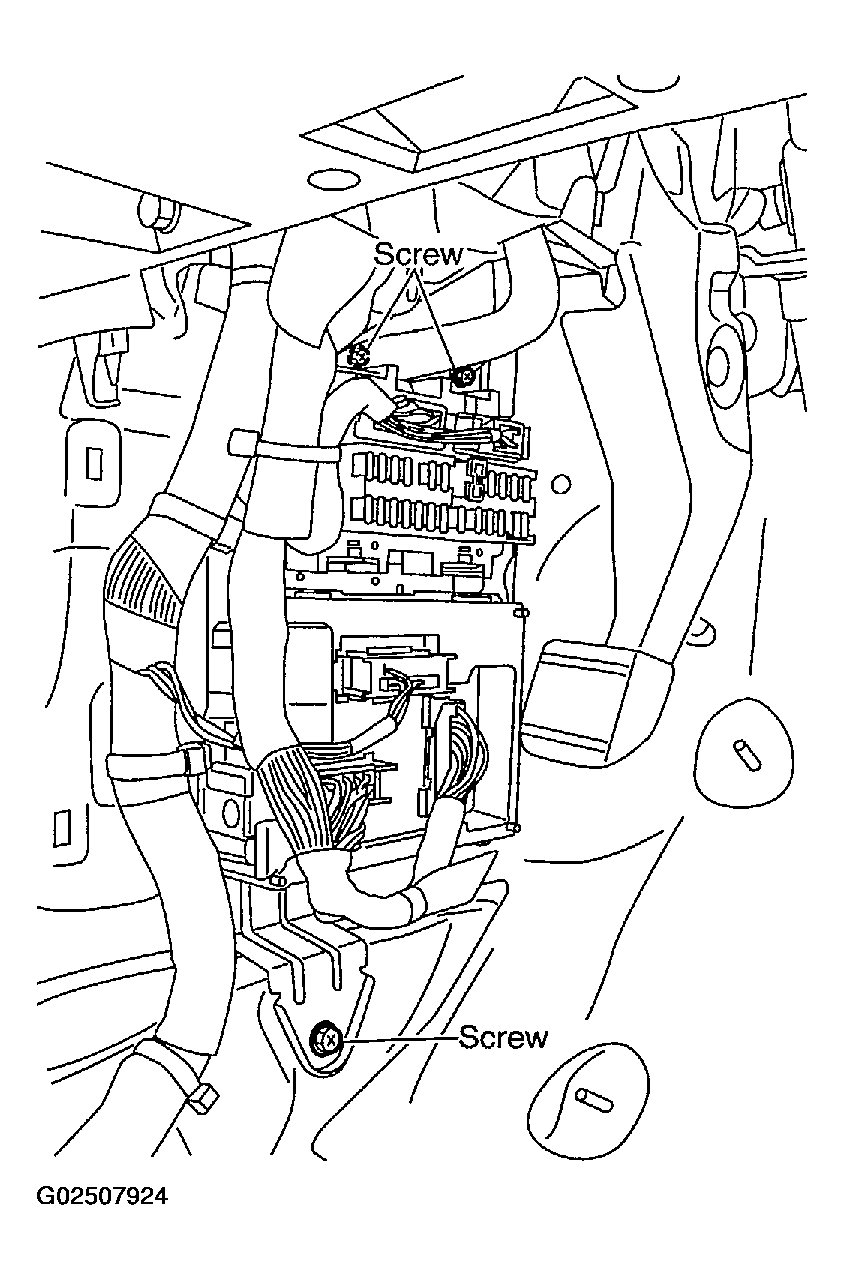

Fig 1: View Of Fuse Panel & BCM (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

Fig 2: View Of Fuse Panel & BCM (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
