1. Check Detention Switch Input Signal

1. Turn ignition knob LOCK position.
2. Check voltage between Intelligent Key unit connector and ground.

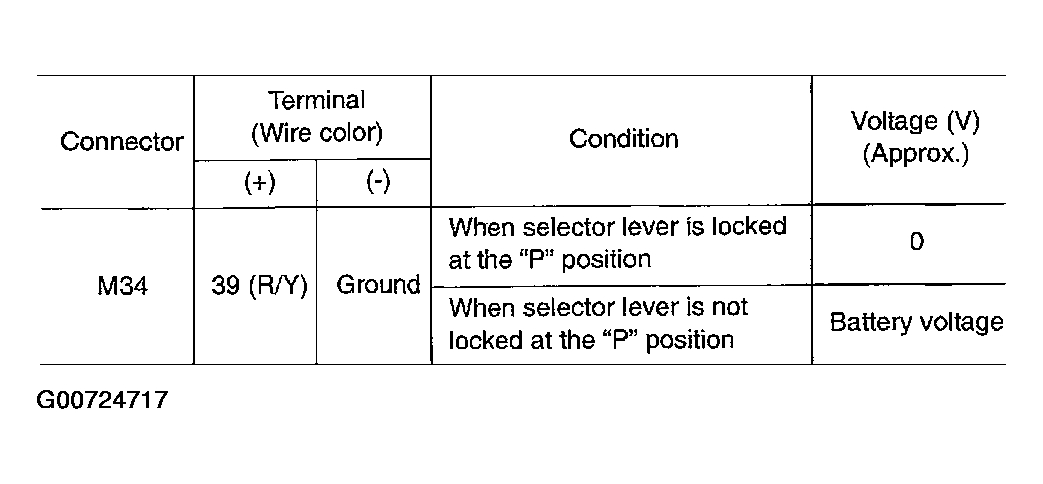

Fig 1: Signal Reference Value - Detention Switch Input Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

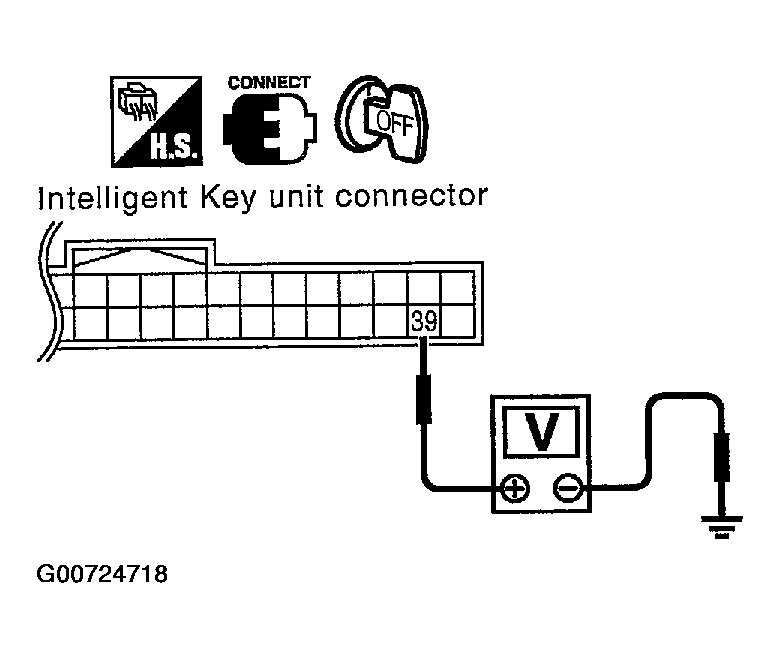

Fig 2: Checking Voltage Between Intelligent Key Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Door switch circuit is OK.

NG : GO TO 2.
