4. Detention Switch Ground Circuit Inspection

Check continuity between A/T device (detention switch) connector M67 terminal 2 (B) and ground.

1. 2 (B) - Ground : Continuity should exist.

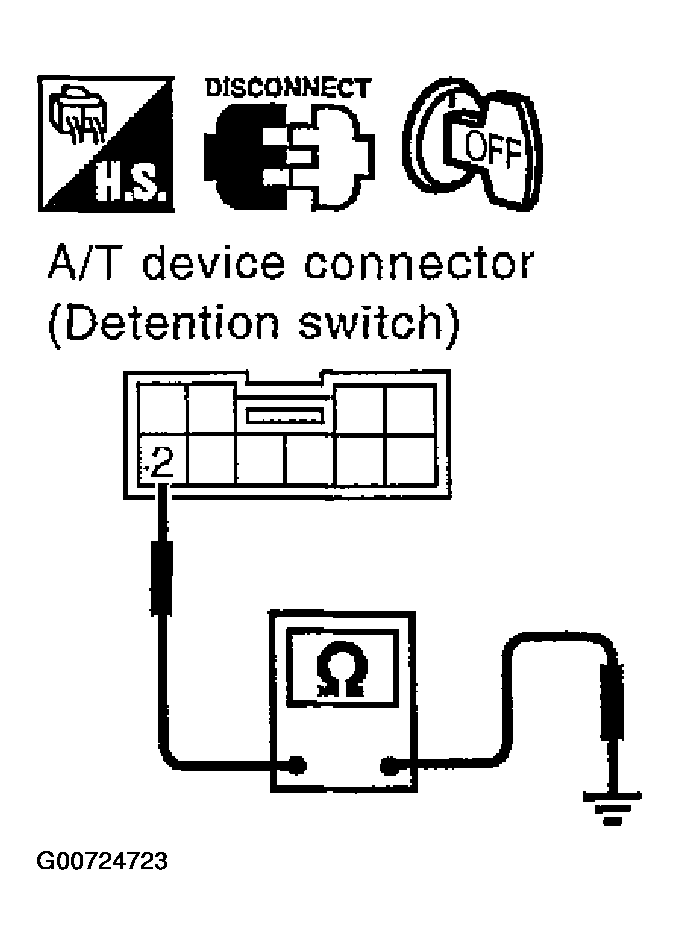

Fig 1: Checking Continuity Between A/T Device (Detention Switch) Connector M67 Terminal 2 (B) And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Check harness connection.

NG : Repair or replace harness.
