Removal And Installation Of Intelligent Key Unit: Removal

  1. Remove the instrument lower driver panel. Refer to LOWER DRIVER INSTRUMENT PANEL .
  2. Disconnect the Intelligent Key unit connector, remove the screw and Intelligent Key unit.

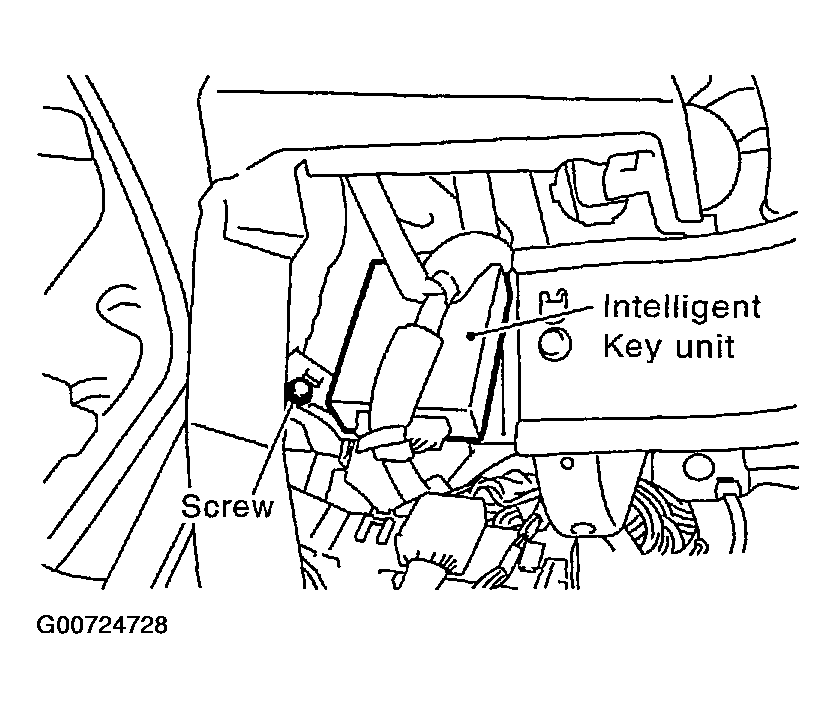

Fig 1: Locating Intelligent Key Unit
G00724728Courtesy of NISSAN MOTOR CO., U.S.A.
