Engine Start Function Malfunction

Intelligent Key Operation Inspection

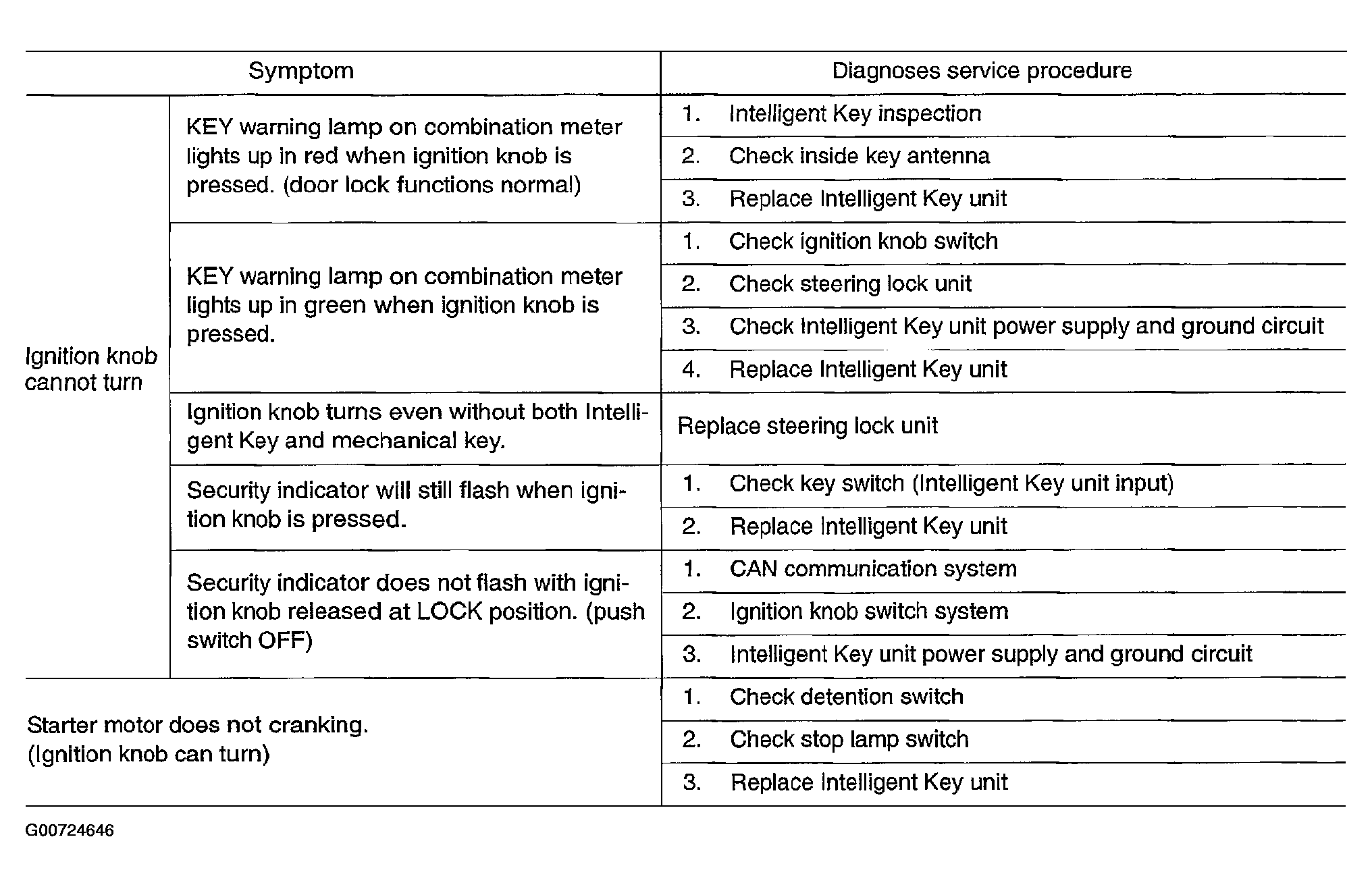

Fig 1: Trouble Diagnosis Symptom Chart - Engine Start Function Malfunction (Intelligent Key Operation Inspection)

Courtesy of NISSAN MOTOR CO., U.S.A.

Mechanical Key Operation Inspection

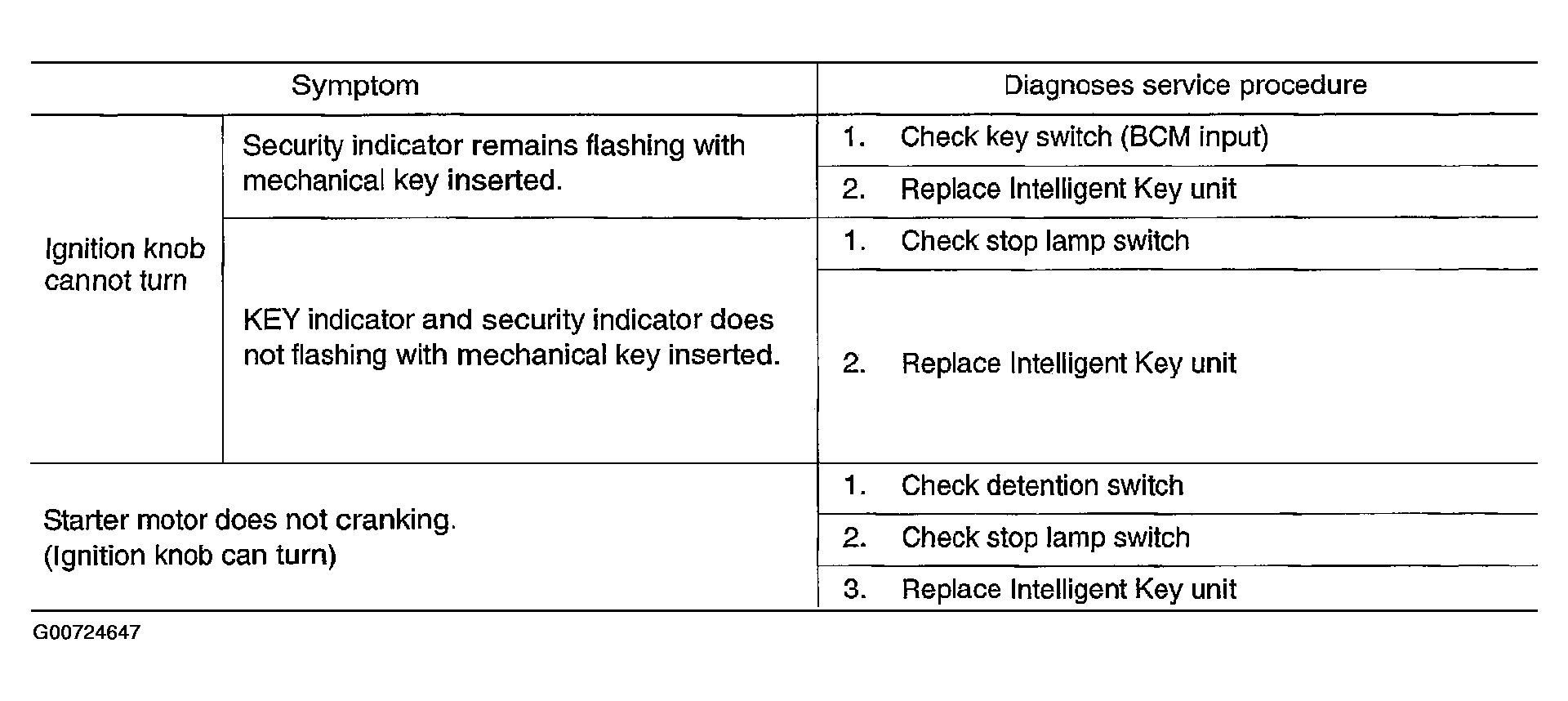

Fig 2: Trouble Diagnosis Symptom Chart - Engine Start Function Malfunction (Mechanical Key Operation Inspection)

Courtesy of NISSAN MOTOR CO., U.S.A.
