1. Check ACC Switch

With CONSULT-II

Check ACC switch ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

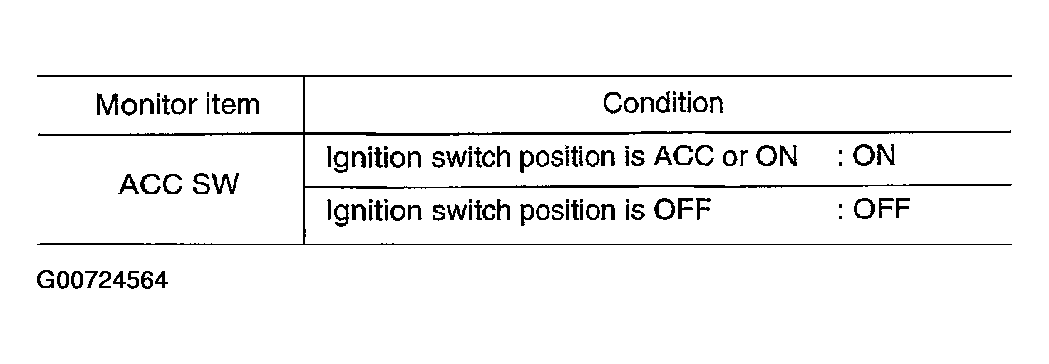

Fig 1: ACC Switch Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking ACC Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

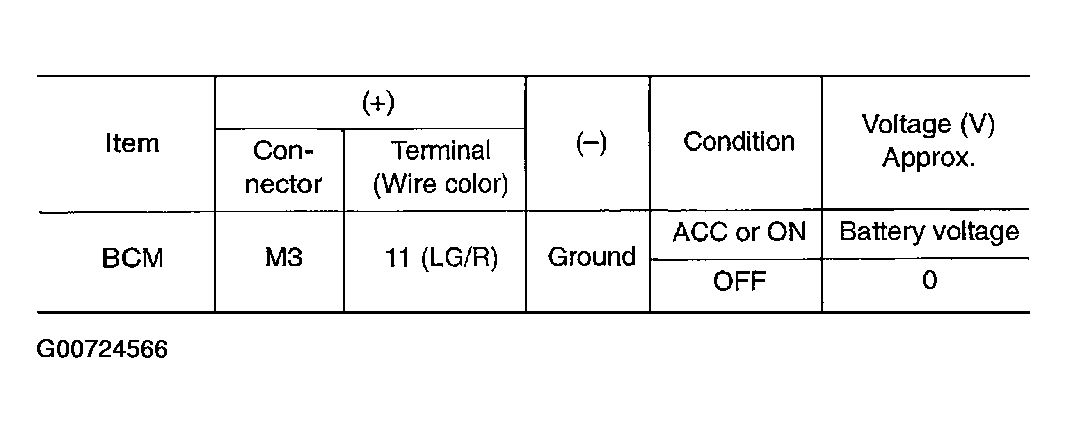

Fig 3: BCM connector Voltage Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking ACC Switch With Consult-II

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : ACC switch is OK.

NG : Check the following.

• 10A fuse [No. 6, located in fuse block (J/B)]
• Harness for open or short between BCM and fuse.
