Front Power Window Motor (Driver Side) Circuit Check

Check Power Window Main Switch Output Signal
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.

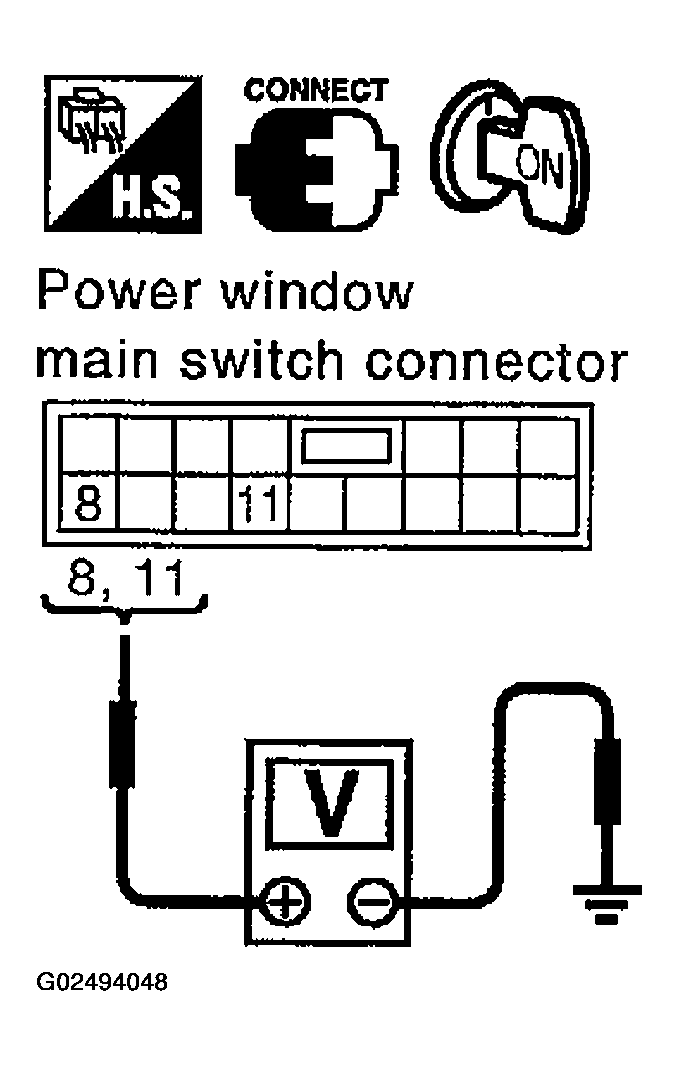

  Fig 1: Checking Voltage At Power Window Main Switch Connector B6 Terminals 8 & 9
  Courtesy of NISSAN MOTOR CO., U.S.A.

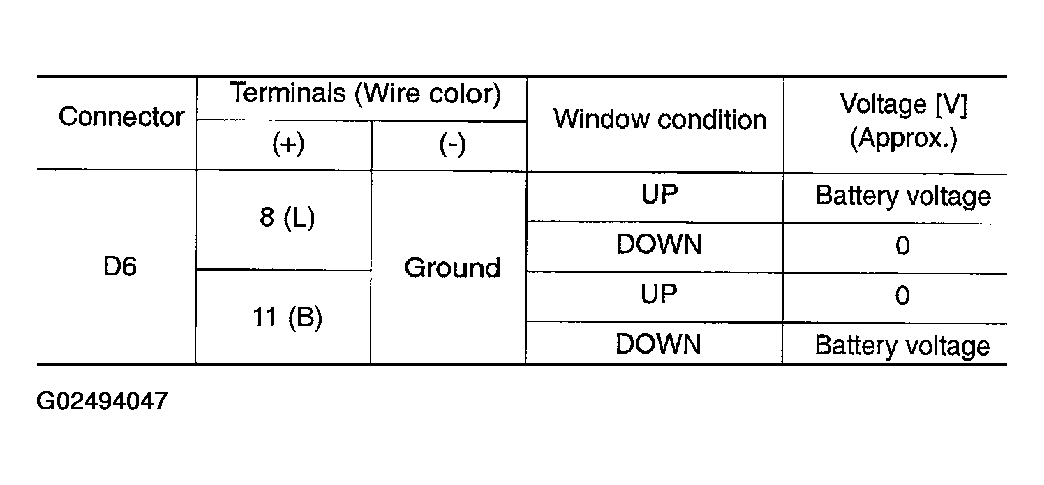

  Fig 2: Power Window Main Switch Terminal 8 & 11 Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Go to 2.
2. NG: Replace power window main switch.
Check Harness Continuity
1. Turn ignition switch OFF.
2. Disconnect power window main switch and front power window motor (driver side) connector.
3. Check continuity between power window main switch connector D6 terminal 8, 11 and front power window motor (driver side) connector D8 terminal 1, 2.

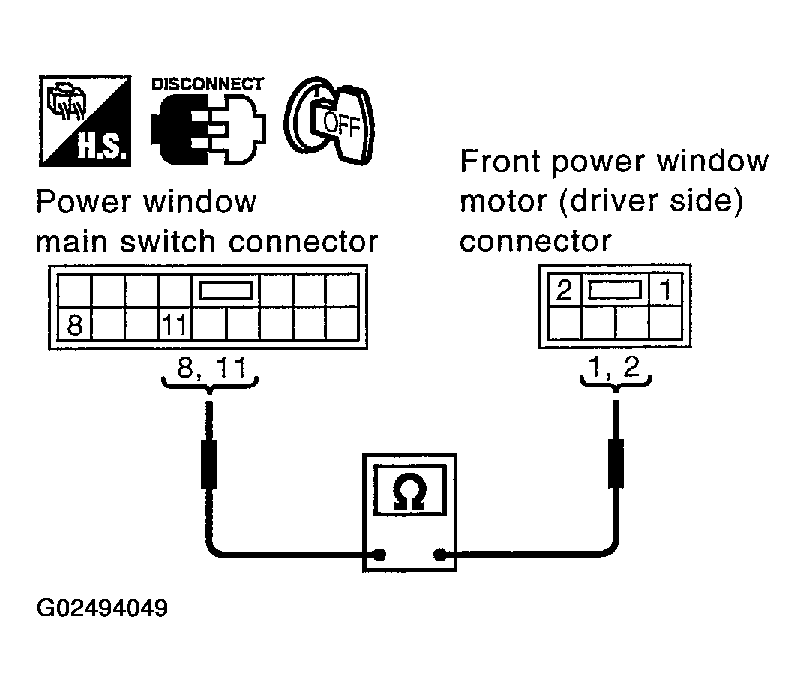

  Fig 3: Checking Continuity Power Window Main Switch Connector D6 Terminals 8 & 11 To Front Power Window Motor (Driver Side) Connector D8 Terminals 1 & 2
  Courtesy of NISSAN MOTOR CO., U.S.A.

  8 (L) - 2 (L): Continuity should exist .

  11 (B) - 1 (B): Continuity should exist .
OK or NG
1. OK: Replace front power window motor (driver side).
2. NG: Repair or replace harness between power window main switch and front power window motor (driver side).
