ABS Motor

Touch "ON" and "OFF" on the screen. Make sure ABS motor relay operates as shown in Fig 1.

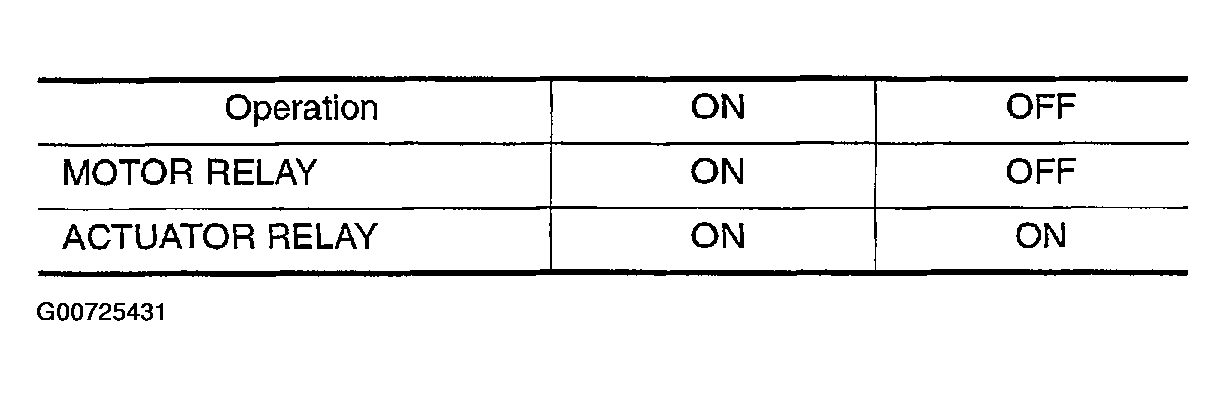

Fig 1: Displaying ABS Motor Relay Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.

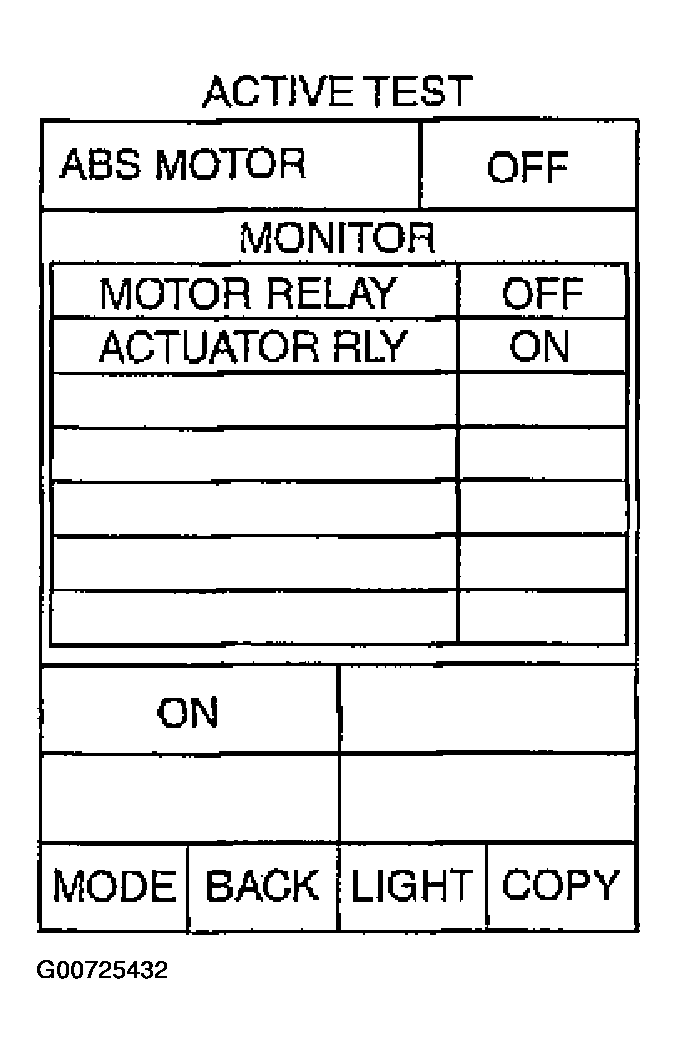

Fig 2: Displaying ABS Motor ACTIVE TEST Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
