CONSULT-II Basic Operation Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
NOTE: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

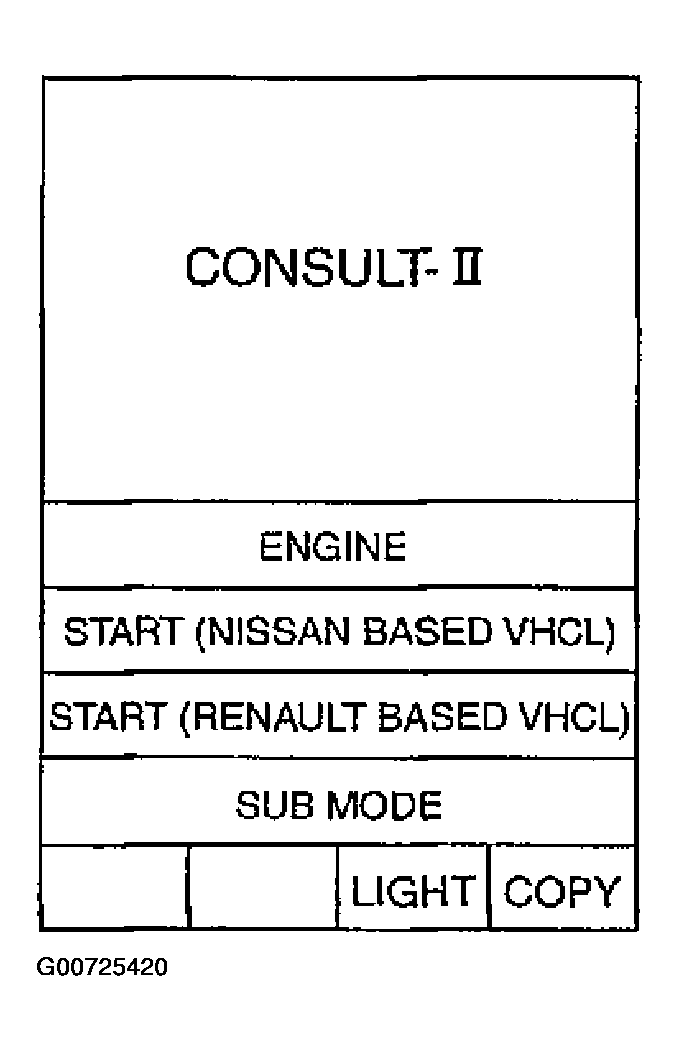

Fig 1: Viewing CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS" in the "SELECT SYSTEM" screen.
If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ,

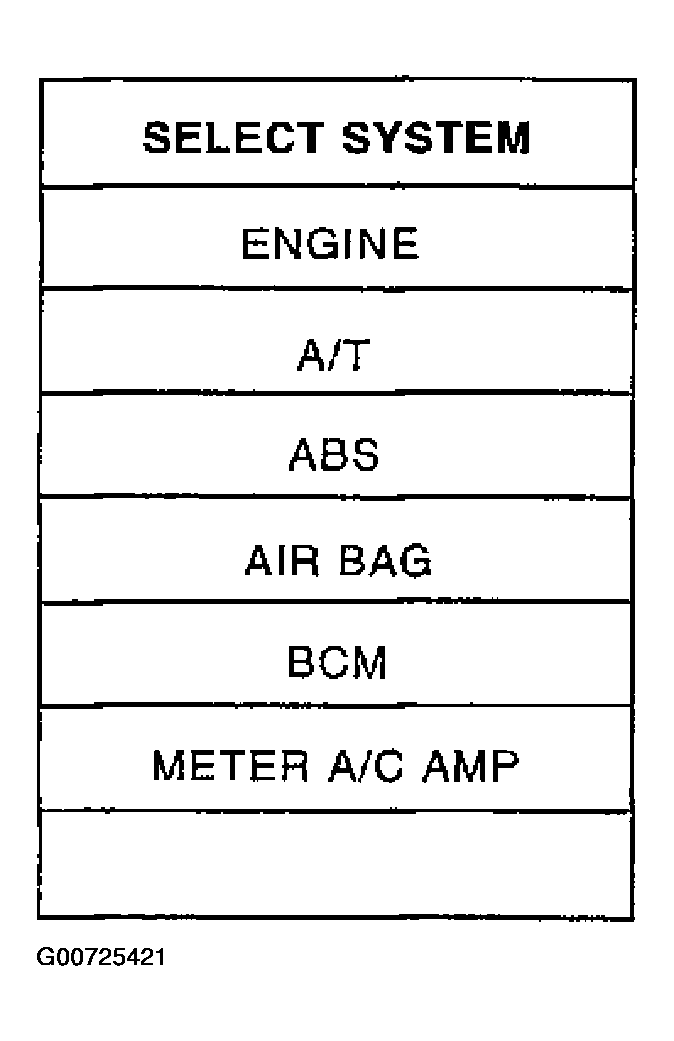

Fig 2: Viewing SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the required diagnostic location from the "SELECT DIAG MODE" screen.
For further information, see CONSULT-II Operation Manual.

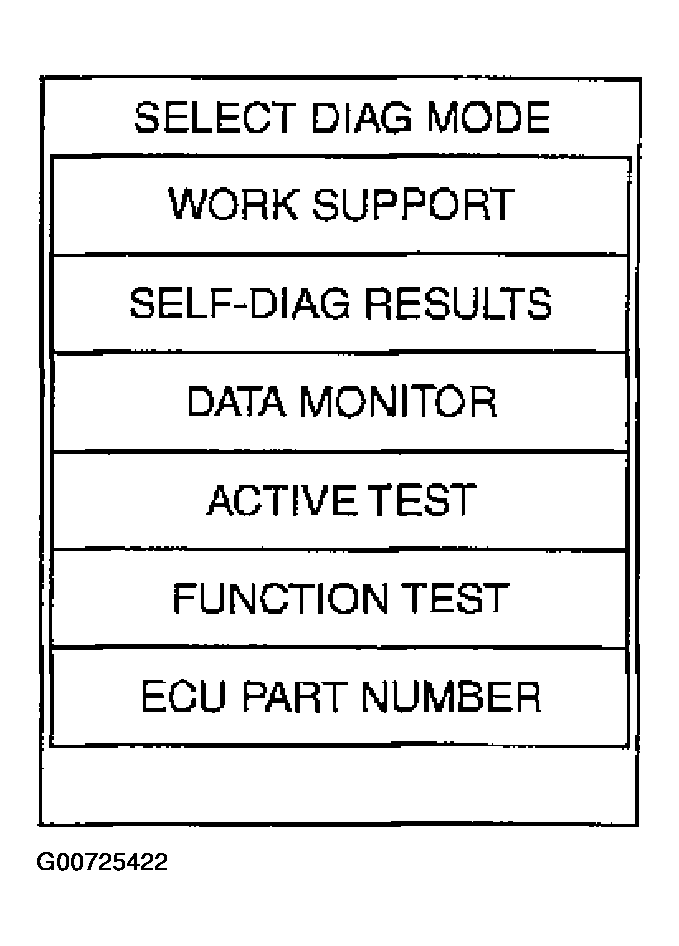

Fig 3: Viewing SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
