Removal And Installation: Notes

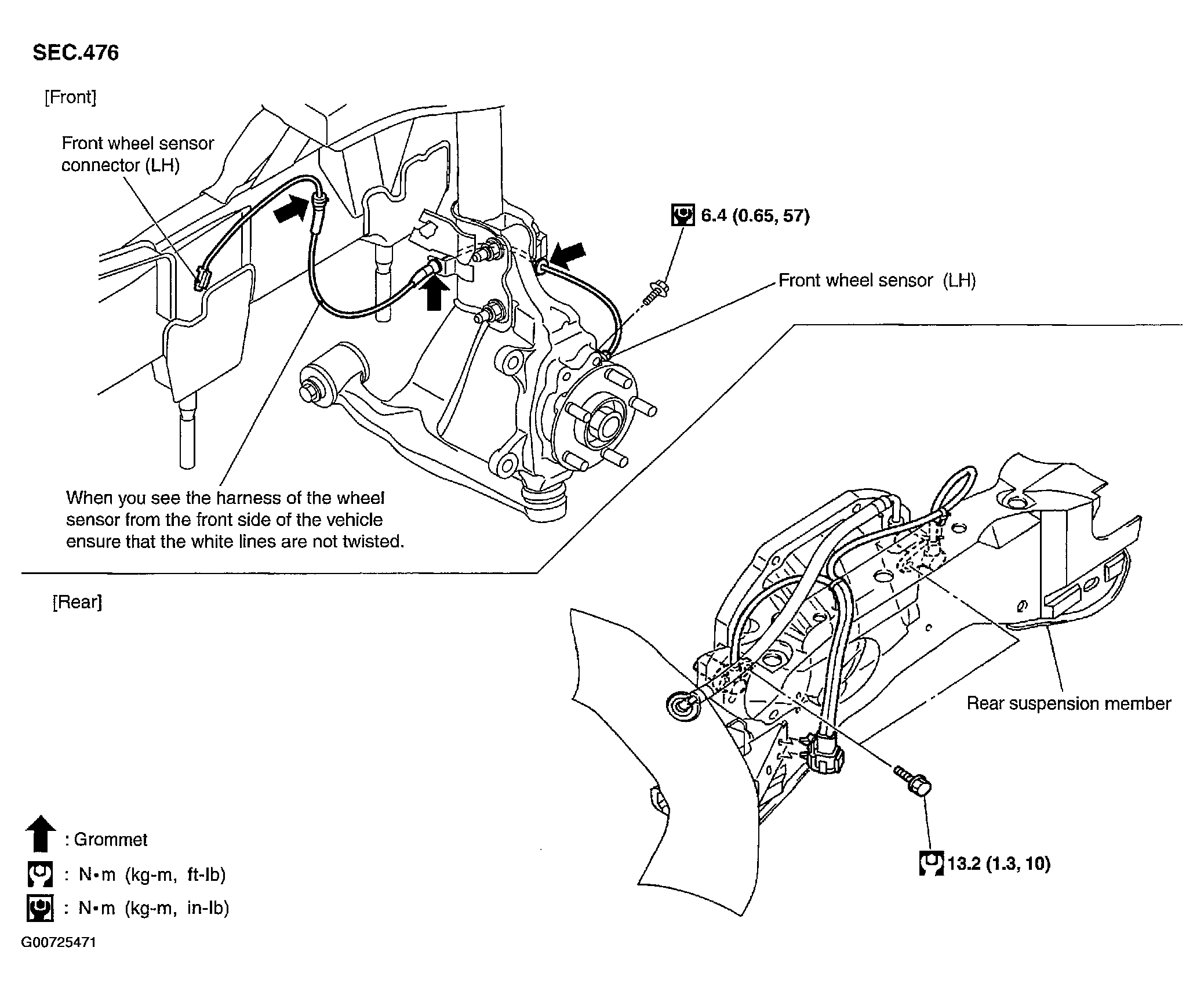

Fig 1: Displaying Brake Control System Wheel Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
