On Board Diagnosis Logic

These self-diagnoses have the one trip detection logic  .

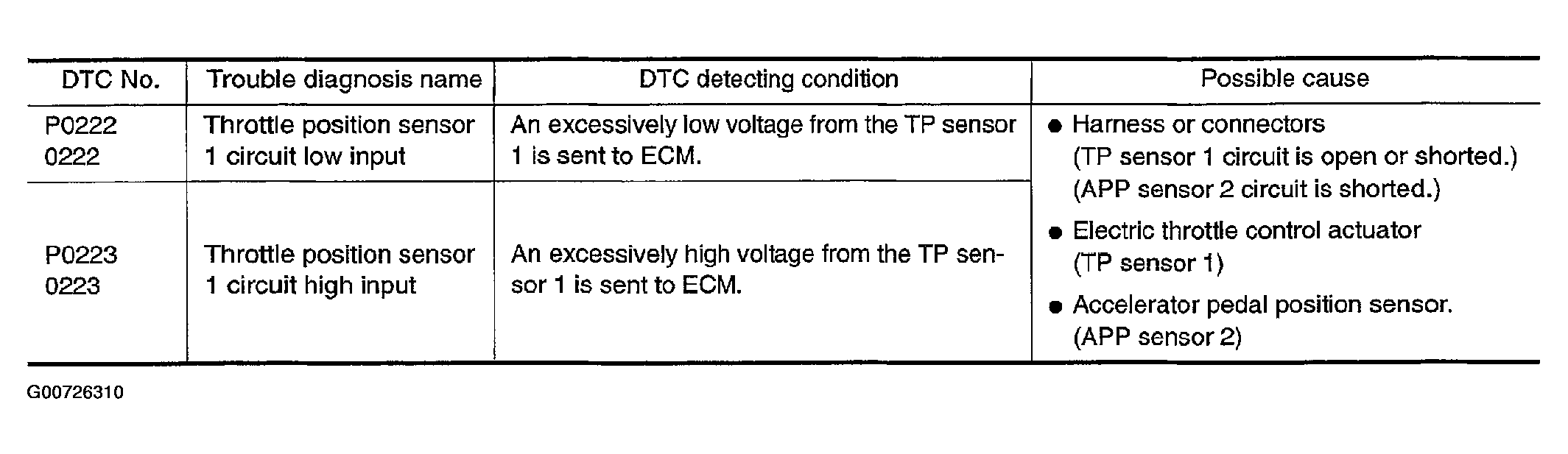

Fig 1: Identifying DTC P0222 & P0223 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.

Fail-Safe Mode

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

Engine operation condition in fail-safe mode.

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10 degrees.

The ECM regulates the opening speed of the throttle valve to beslower than the normal condition.

So, the acceleration will be poor.
