Crankshaft Position Sensor (POS)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect crankshaft position sensor (POS) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.
  5. Check resistance as shown in Fig 2.

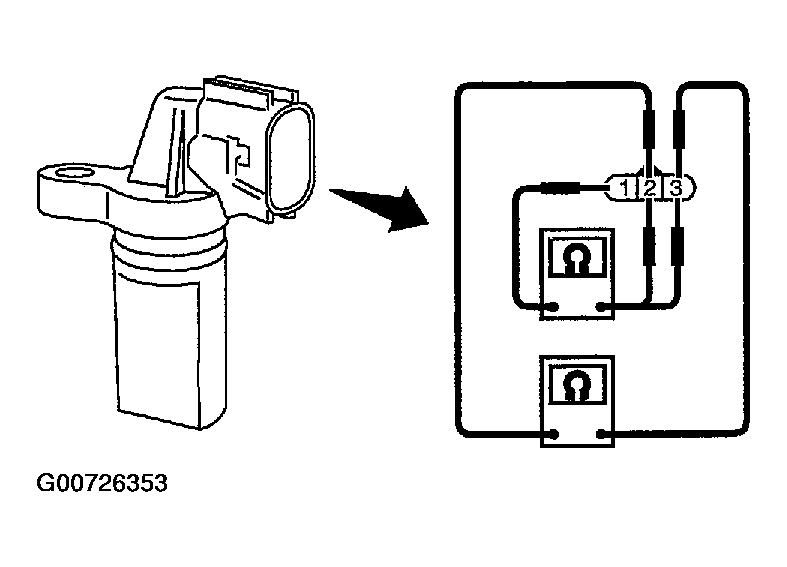

    Fig 1: Testing Crankshaft Position Sensor Resistance
    G00726353Courtesy of NISSAN MOTOR CO., U.S.A.

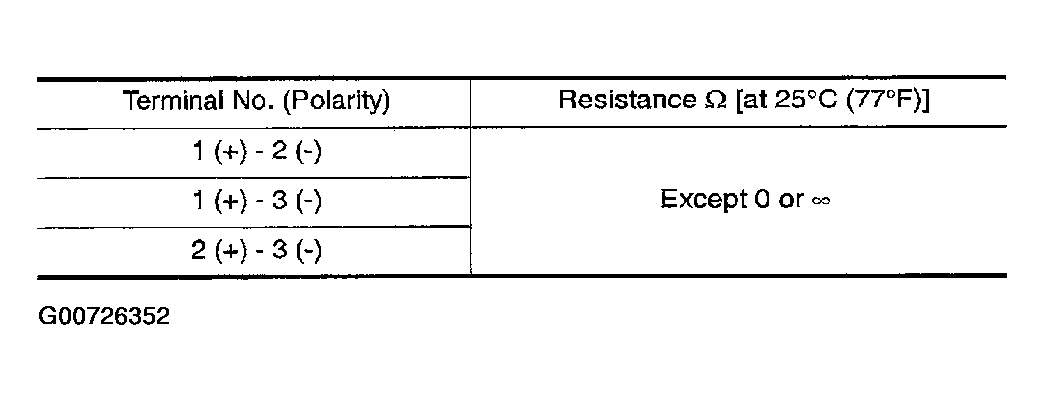

    Fig 2: Identifying Crankshaft Position Sensor Terminal Specifications
    G00726352Courtesy of NISSAN MOTOR CO., U.S.A.
