Bank 1

NOTE: These are circuit specific wiring diagrams. For system wiring diagrams, see SYSTEM WIRING DIAGRAMS . For wiring diagram references to PG-POWER , see POWER DISTRIBUTION . For component locations, see ELECTRICAL COMPONENT LOCATOR .

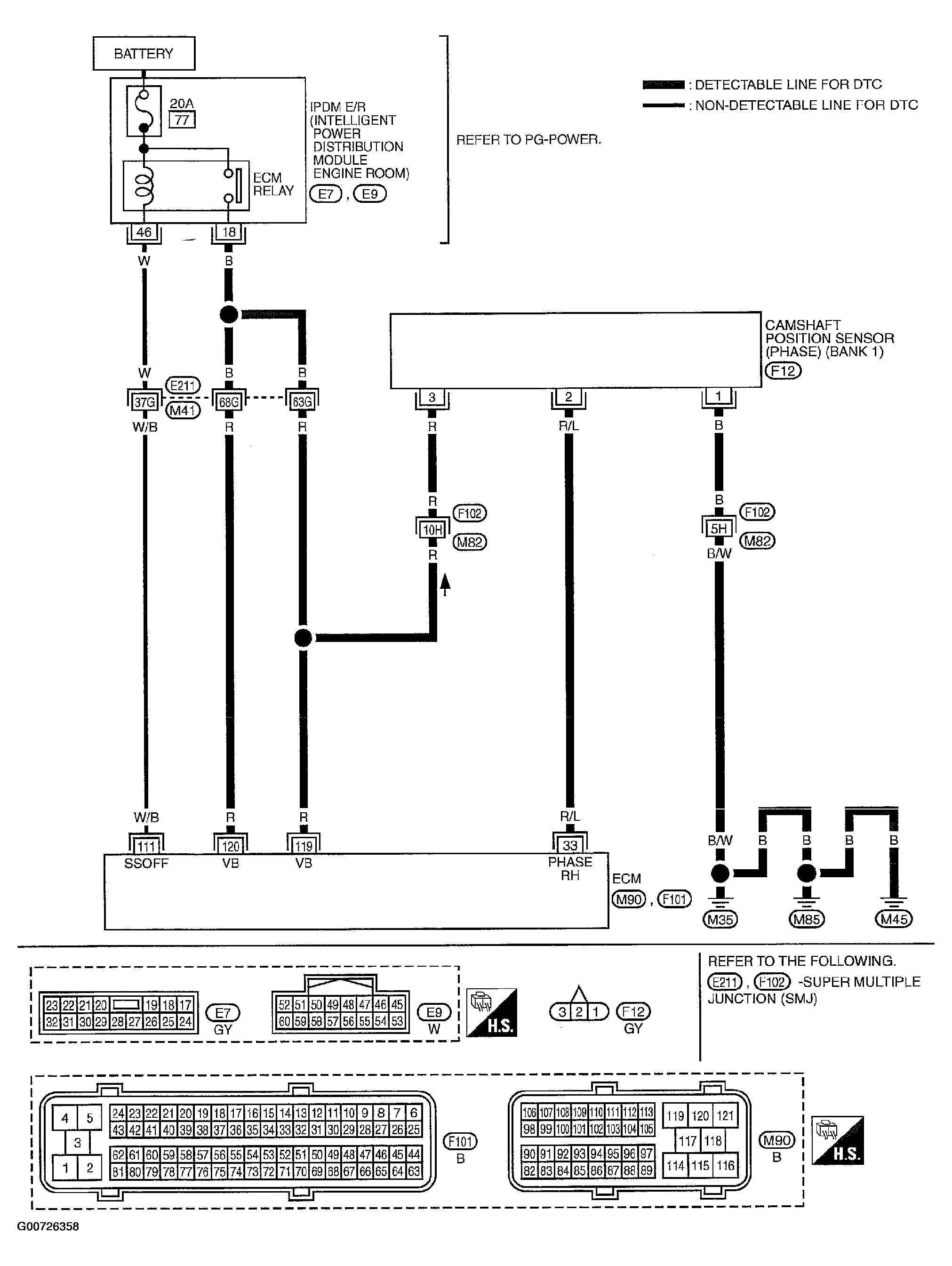

Fig 1: Camshaft Position Sensor Circuit (Bank 1)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

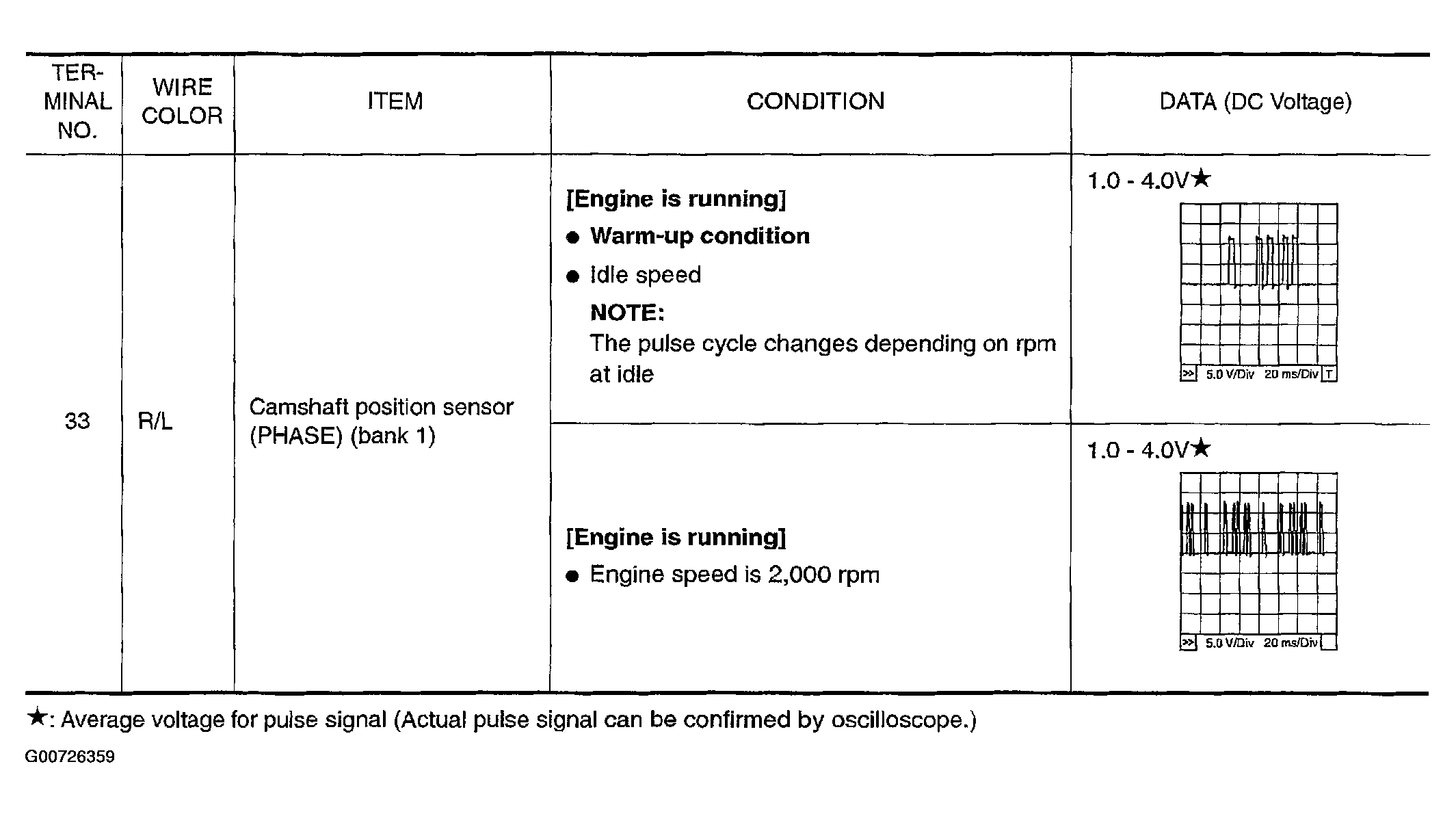

Fig 2: ECM Terminal 33 Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
