Cooling Fan Motor

The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.

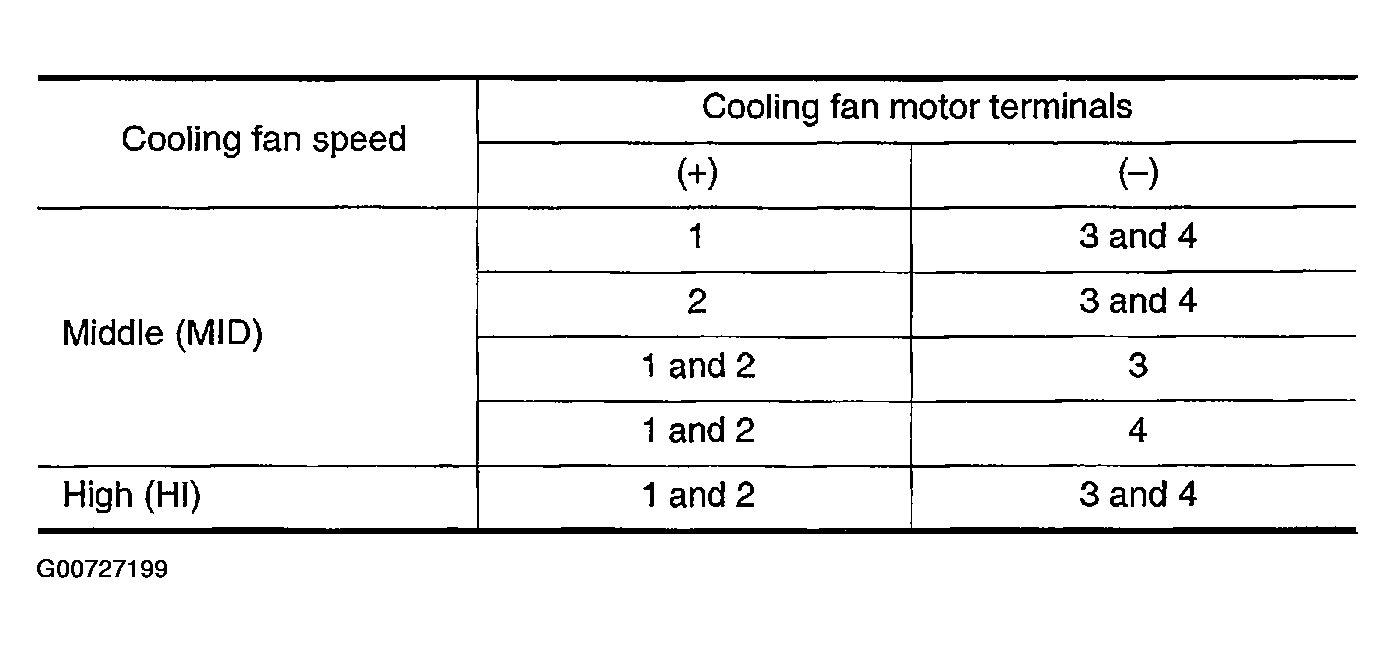

Fig 1: Determining Specifications For Cooling Fan Terminals By Fan Speed

Courtesy of NISSAN MOTOR CO., U.S.A.

The cooling fan operates at low (LOW) speed when cooling fan motors-1 and -2 are circuited in series under middle speed condition.
