ICC Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

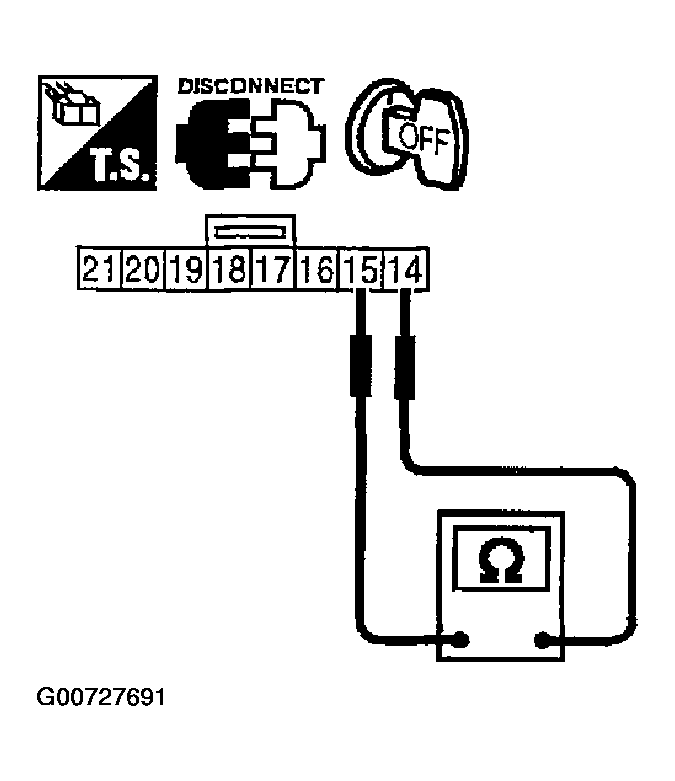

    Fig 1: Testing ICC Steering Switch Circuit Resistance (W/DVOM)
    G00727691Courtesy of NISSAN MOTOR CO., U.S.A.

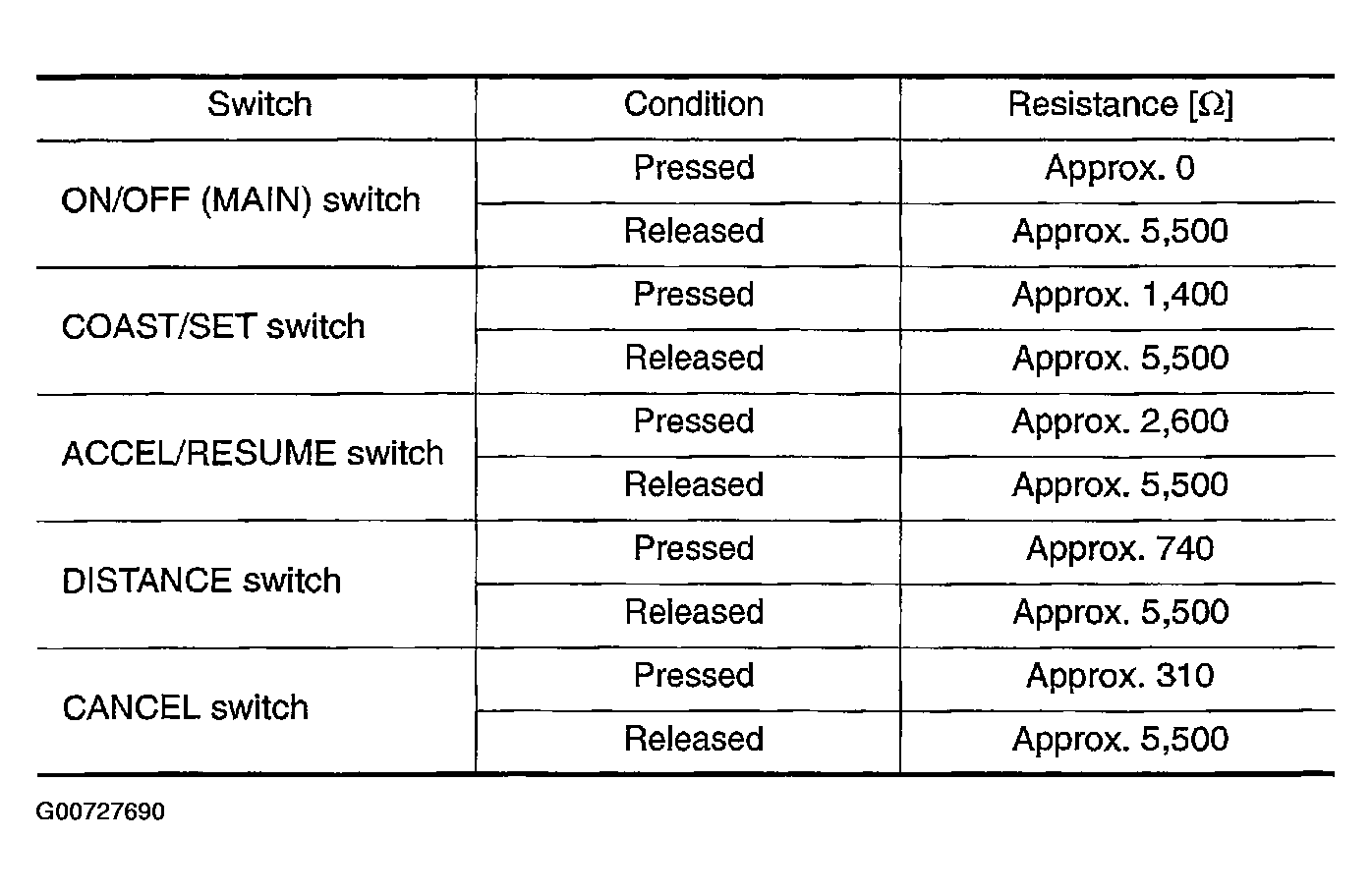

    Fig 2: ICC Steering Switch Resistance Specifications
    G00727690Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, replace ICC steering switch.
