Diagnostic Procedure

Check ICC Steering Switch Circuit
With CONSULT-II
1. Turn ignition switch ON.
2. Select MAIN SW, RESUME/ACC SW, SET SW, DIST SW and CANCEL SW in DATA MONITOR mode with CONSULT-II.
3. Check each item indication under the following conditions.

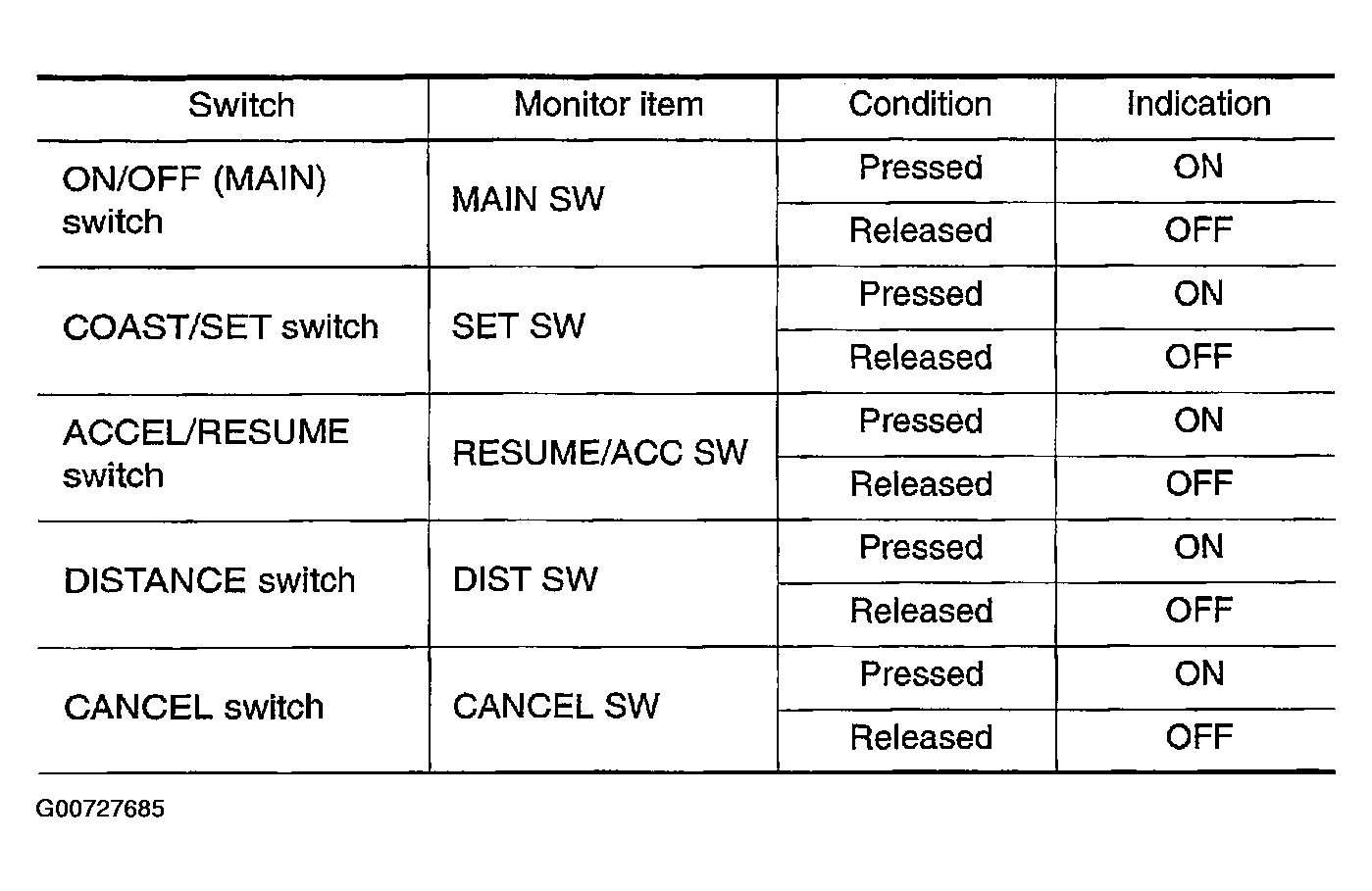

  Fig 1: ICC Steering Switch Circuit Testing Specifications (CONSULT-II)
  Courtesy of NISSAN MOTOR CO., U.S.A.

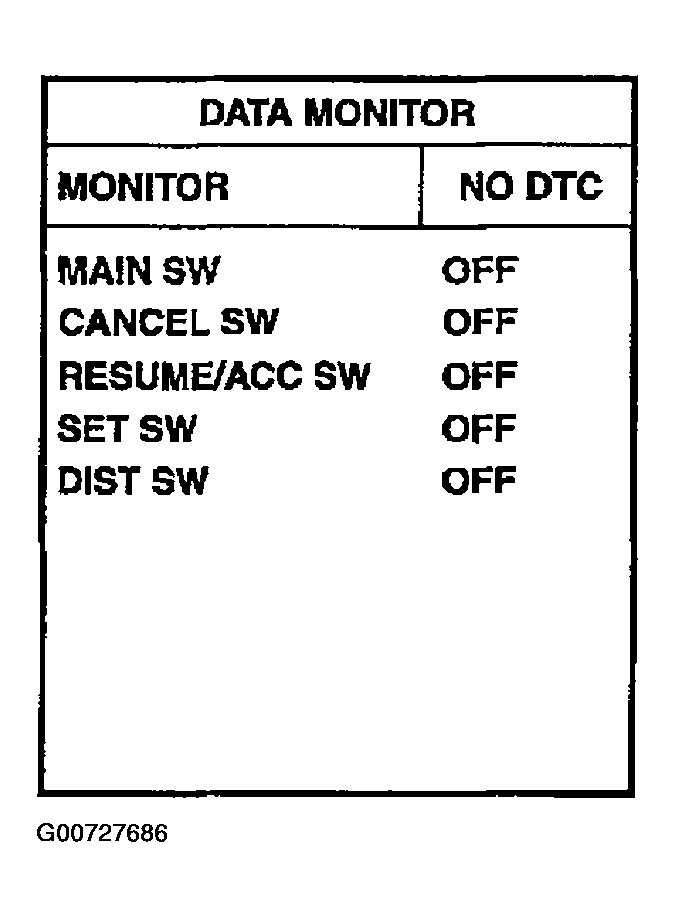

  Fig 2: Monitoring ICC Steering Switch Circuit With CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with pressing each button.

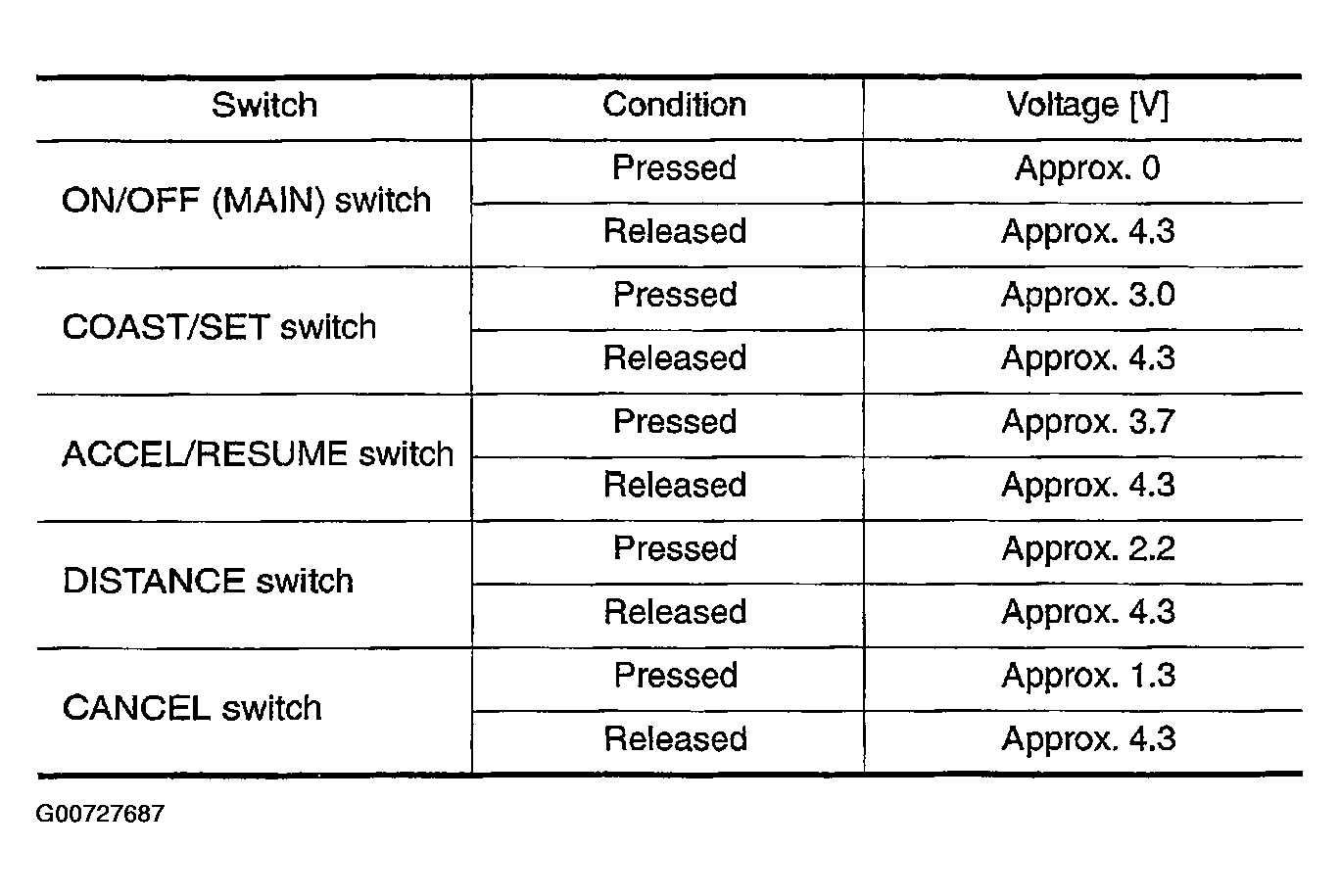

  Fig 3: ICC Steering Switch Circuit Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

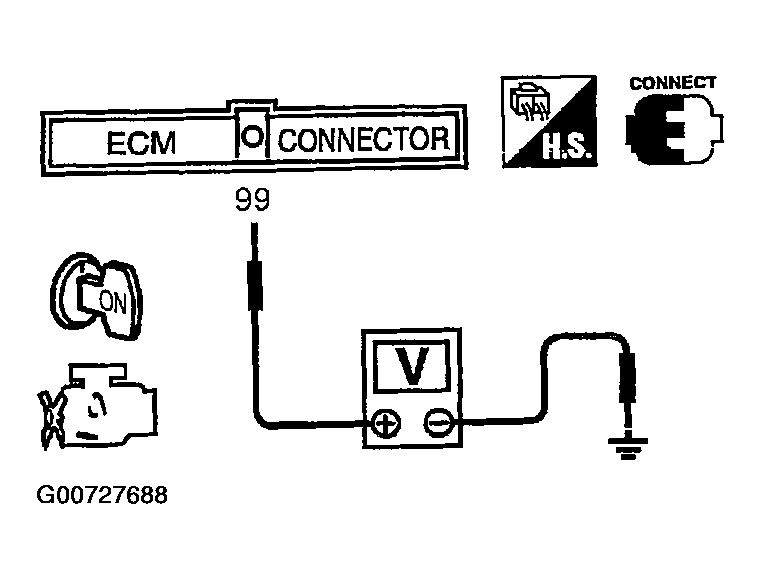

  Fig 4: Testing ICC Steering Switch Circuit Voltage (W/DVOM)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Go to 7.
2. NG: Go to 2.
Check ICC Steering Switch Ground Circuit For Open And Short
1. Turn ignition switch OFF.
2. Disconnect combination switch harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between combination switch terminal 15 and ECM terminal 82.
  Refer to wiring diagram. See WIRING DIAGRAM .
  1. Continuity should exist .
5. Also check harness for short to ground and short to power.
OK or NG
1. OK: Go to 4.
2. NG: Go to 3.
Detect Malfunctioning Part
Check the following.
- Combination switch (spiral cable)
- Harness for open and short between ECM and combination switch
1. Repair open circuit or short to ground or short to power in harness or connectors.
Check ICC Steering Switch Input Signal Circuit For Open And Short
1. Check harness continuity between ECM terminal 99 and combination switch terminal 14.
  Refer to wiring diagram. See WIRING DIAGRAM .
  1. Continuity should exist .
2. Also check harness for short to ground and short to power.
OK or NG
1. OK: Go to 6.
2. NG: Go to 5.
Detect Malfunctioning Part
Check the following.
- Combination switch (spiral cable)
- Harness for open and short between ECM and combination switch
1. Repair open circuit or short to ground or short to power in harness or connectors.
Check ICC Steering Switch
Refer to COMPONENT INSPECTION .

OK or NG
1. OK: Go to 7.
2. NG: Replace ICC steering switch.
Check Intermittent Incident
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
1. Inspection end
