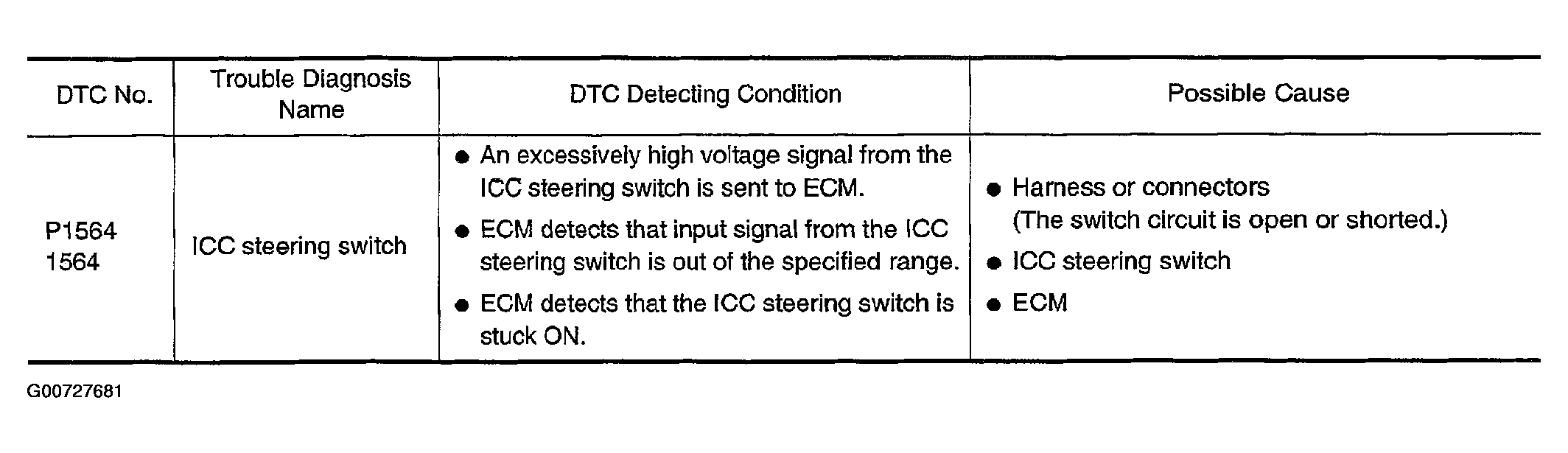

On Board Diagnosis Logic
- This self-diagnosis has the one trip detection logic .
- The MIL will not light up for this self-diagnosis .
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .
