Eng Speed, Mas A/F Se-B1, THRTL Sen 1, Ho2S2 (B1), INJ Pulse-B1

Below is the data for ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1) and INJ PULSE-B1 when revving engine quickly up to 4,800 RPM under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.

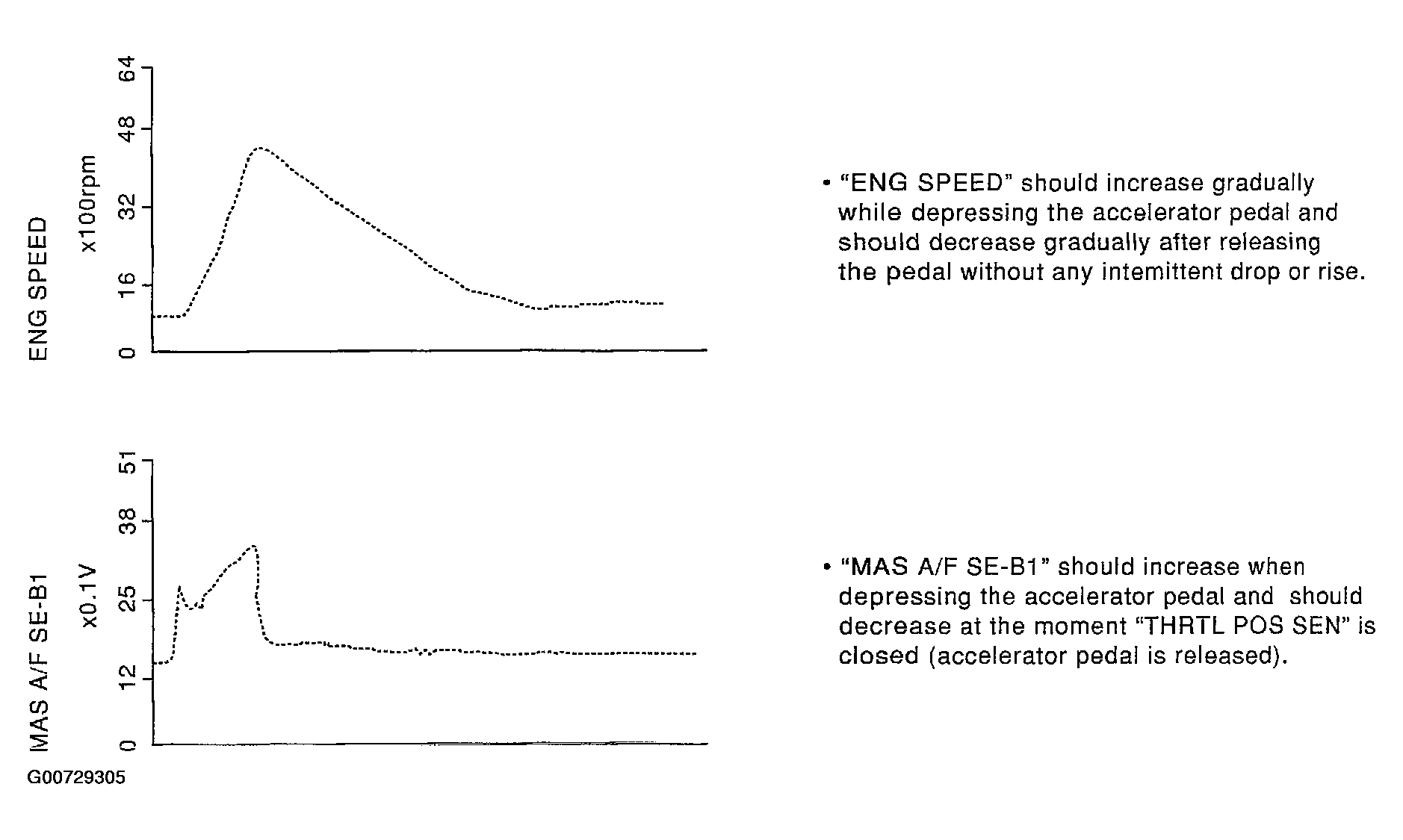

Fig 1: Identifying Signal Graphs For ENG SPEED & MAS A/F SE-B1

Courtesy of NISSAN MOTOR CO., U.S.A.

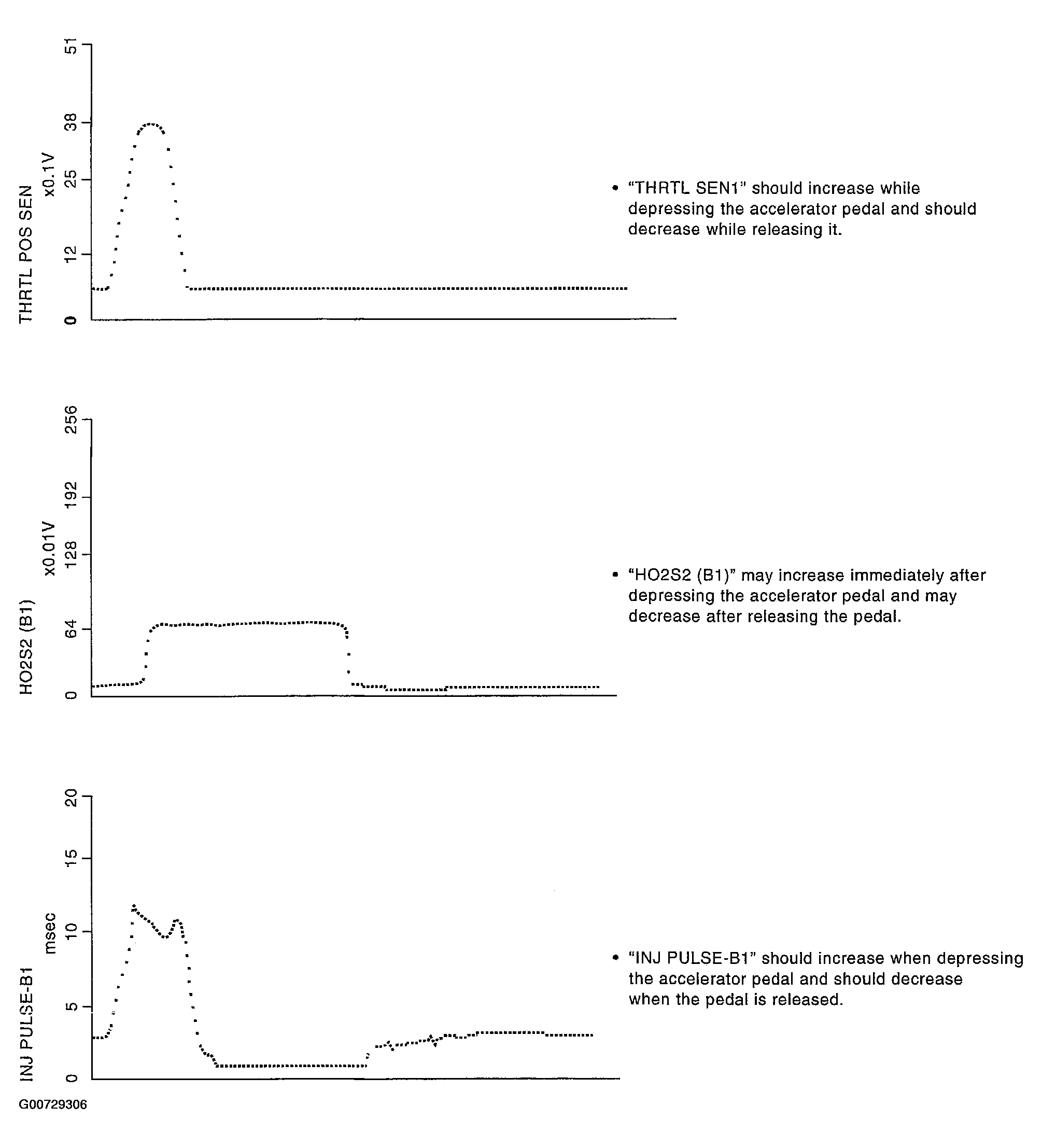

Fig 2: Identifying Signal Graphs For INJ PULSE-B1, HO2S1 (B1), HO2S2 (B1) & THRTL SEN 1

Courtesy of NISSAN MOTOR CO., U.S.A.
