ICC Brake Switch

  1. Turn ignition switch OFF.
  2. Disconnect ICC brake switch harness connector.

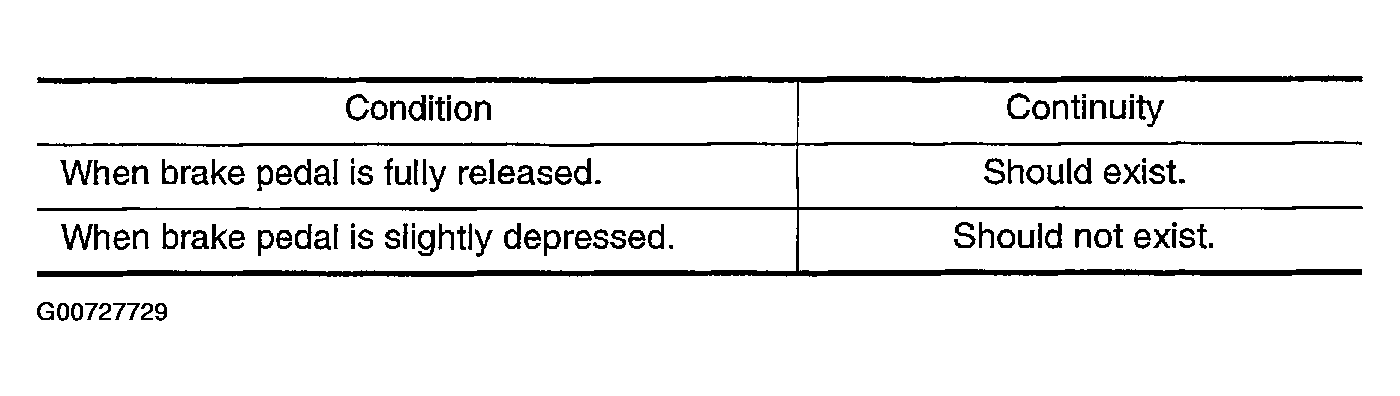

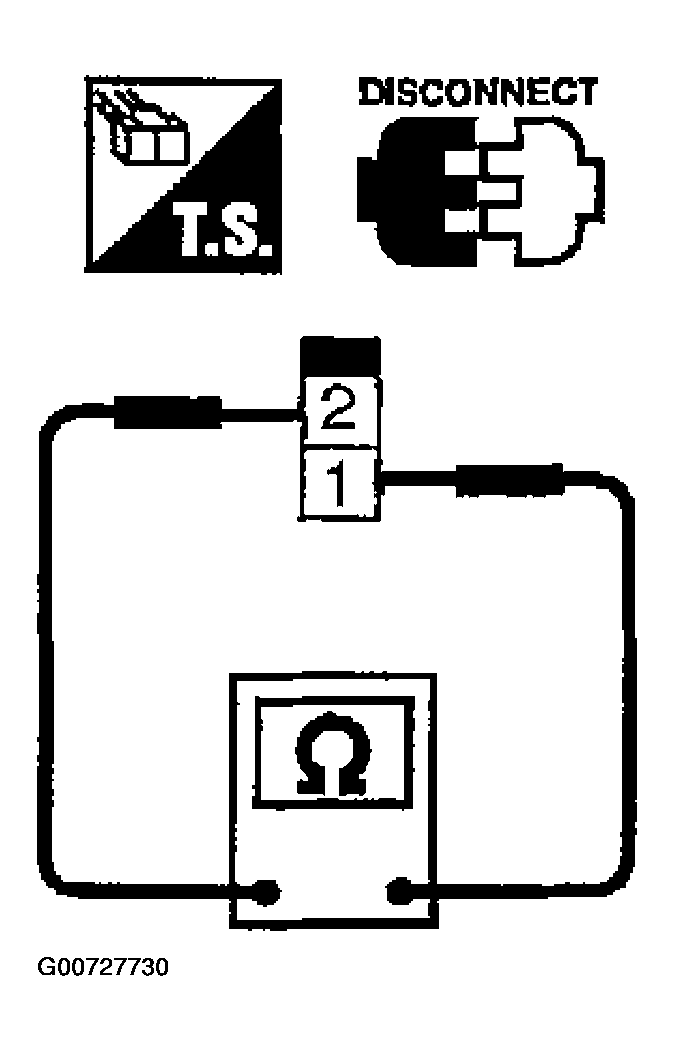

  3. Check continuity between ICC brake switch terminals 1 and 2 under the following conditions. See Figure and Figure.

If NG, adjust ICC brake switch installation, Refer to brake pedal under ON-VEHICLE SERVICE , and perform step 3 again.
