CONSULT-II Start Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

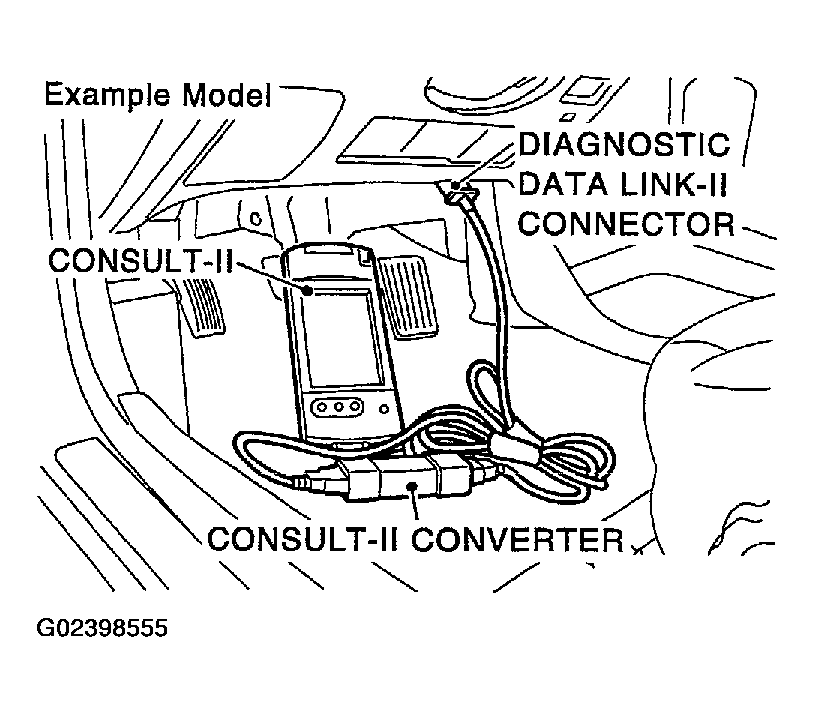

Fig 1: Connecting CONSULT-II & CONSULT-II CONVERTER To DLC2
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch OFF.
Touch "START (NISSAN BASED VHCL)" or "System Shortcut" (eg: Engine) on the screen.

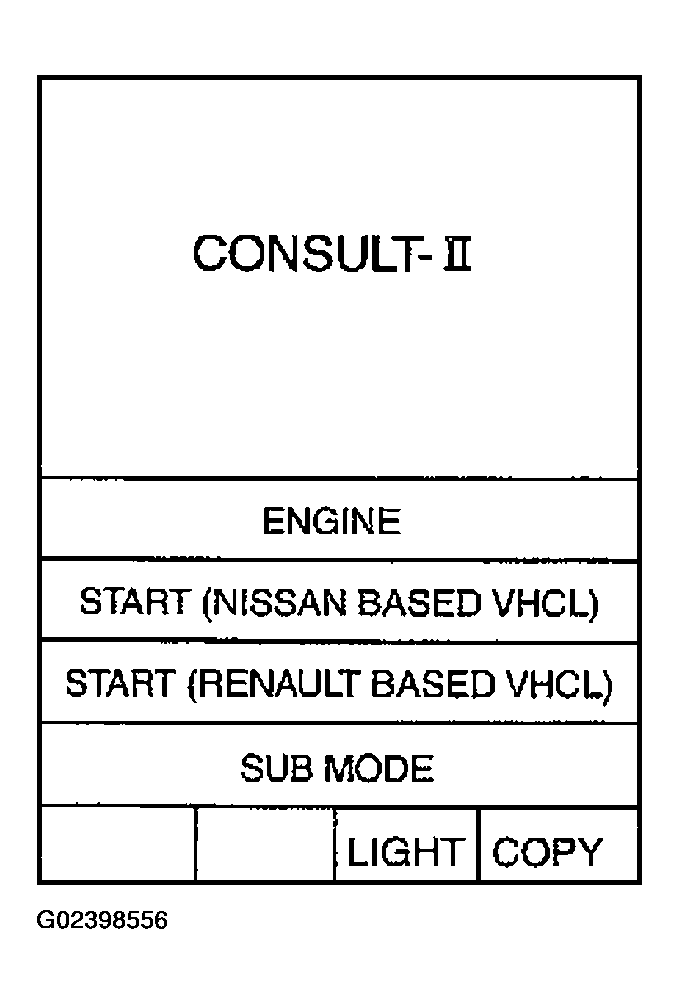

Fig 2: Displaying CONSULT-II Main Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
