Removal And Installation: Notes

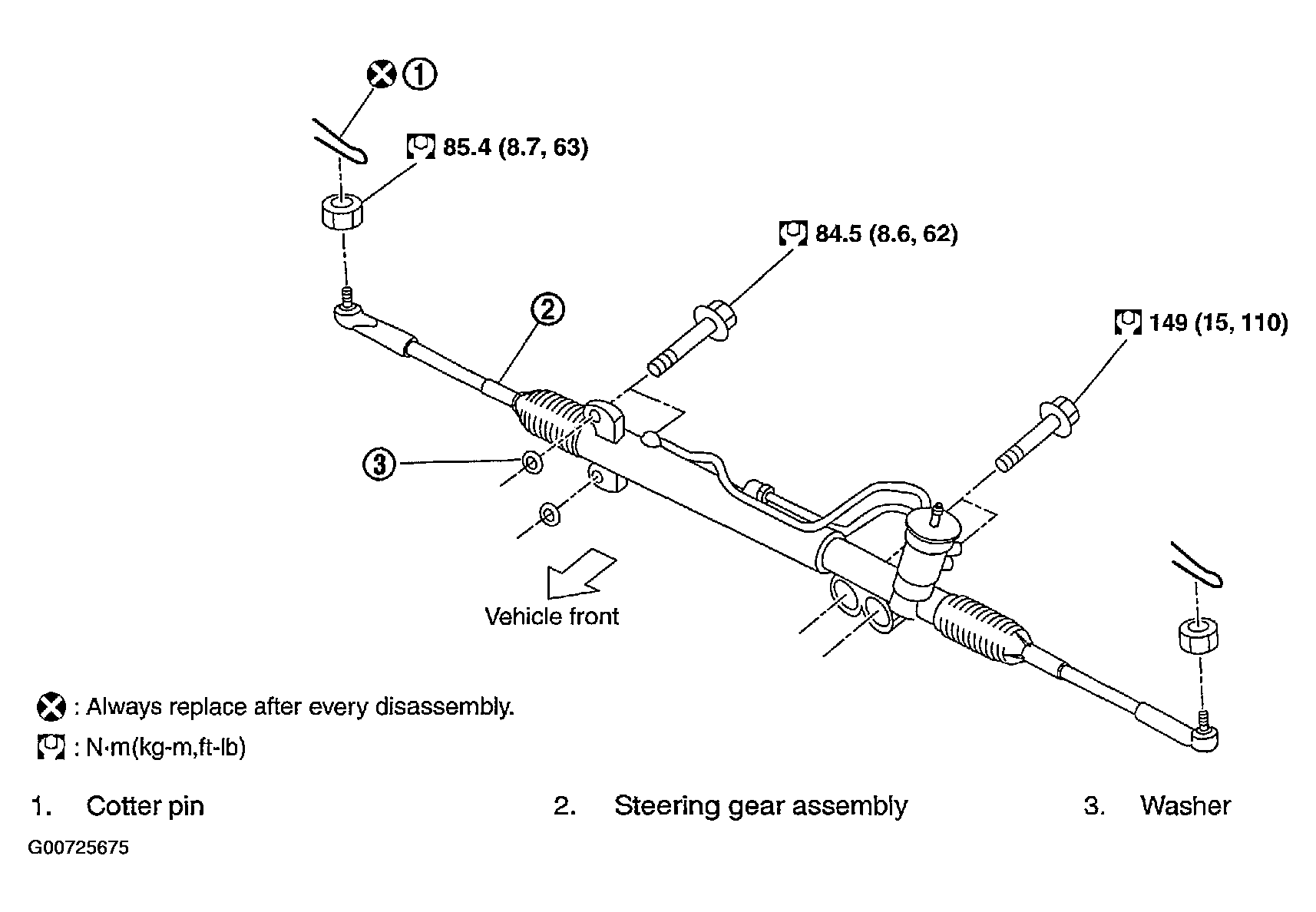

Fig 1: Displaying Power Steering Gear & Linkage

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Spiral cable may snap due to steering operation if steering column is separated from steering gear assembly. Therefore fix steering wheel with a string to avoid turns.
