Removal And Installation (AWD Models): Installation

Install the removed parts in the reverse order of the removal, while paying attention to the following work.

• When installing transmission assembly to the engine, attach the fixing bolts in accordance with the following standard.

  For VQ35DE models:

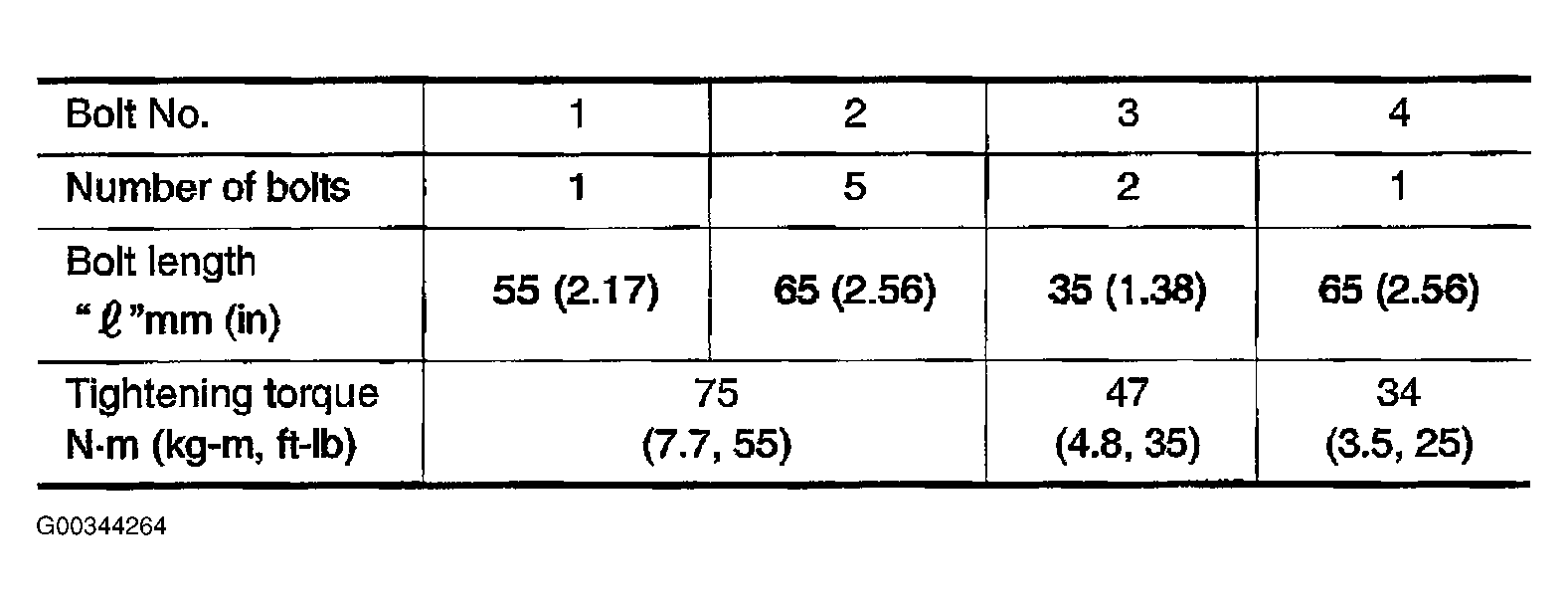

  Fig 1: Identifying Bolt Length & Torque

  Courtesy of NISSAN MOTOR CO., U.S.A.

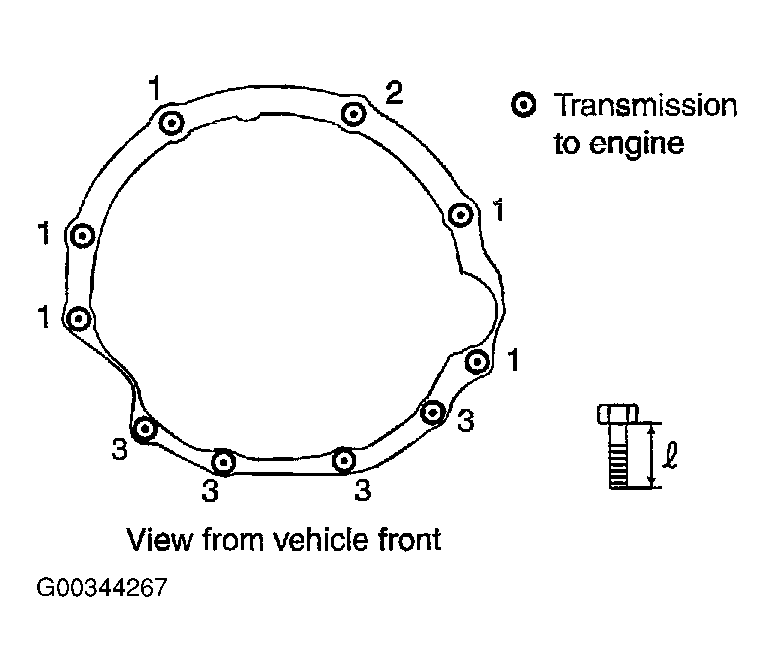

  Fig 2: Identifying Bolt Location

  Courtesy of NISSAN MOTOR CO., U.S.A.

  For VK45DE models:

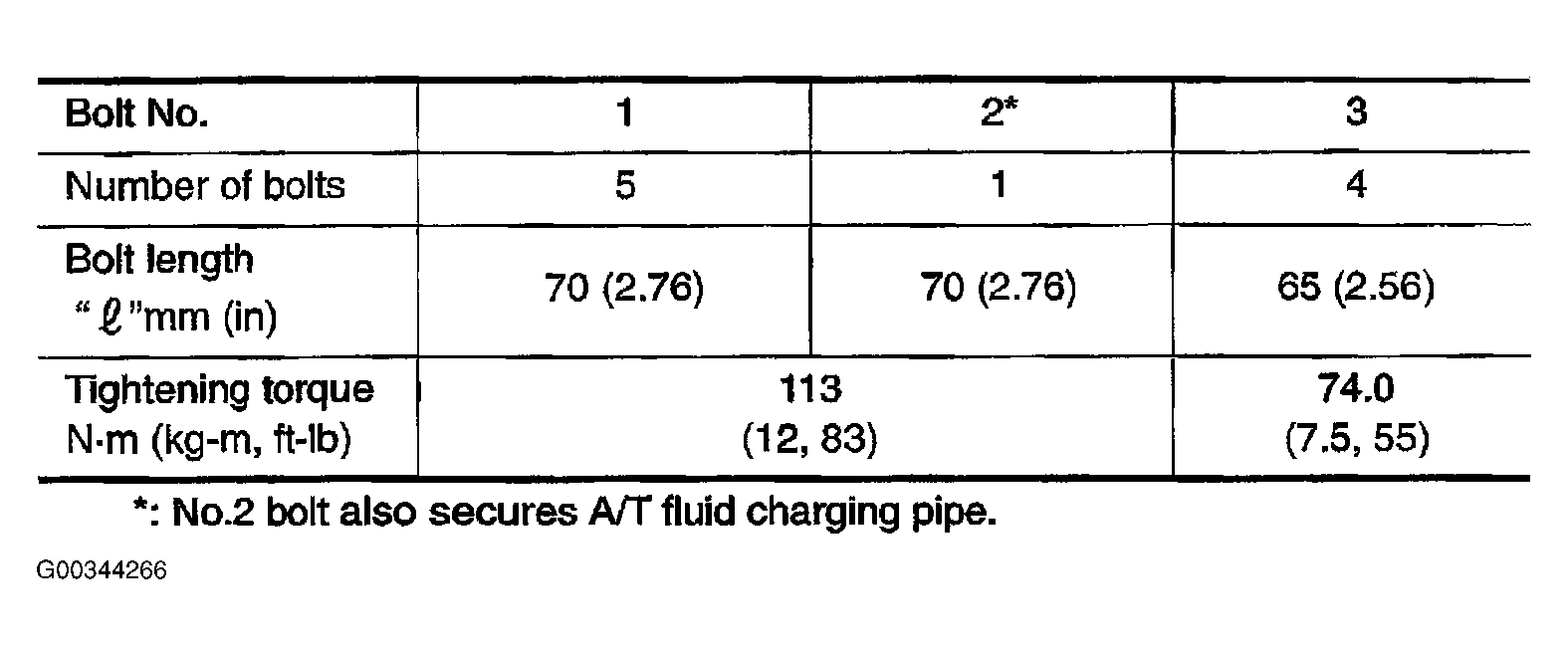

  Fig 3: Identifying Bolt Length & Torque

  Courtesy of NISSAN MOTOR CO., U.S.A.

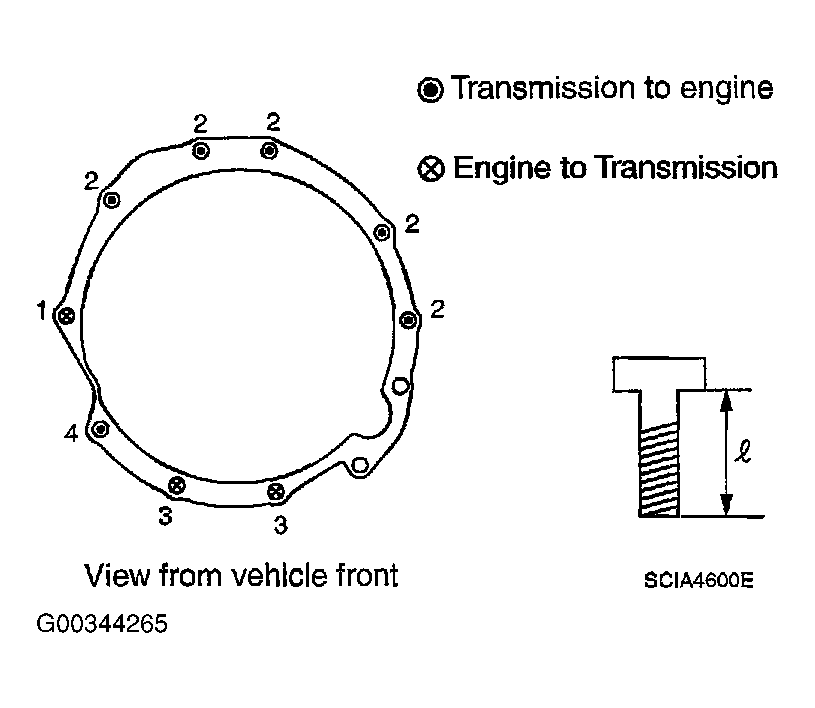

  Fig 4: Identifying Bolt Location

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Align the positions of tightening bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then, tighten the bolts with the specified torque.

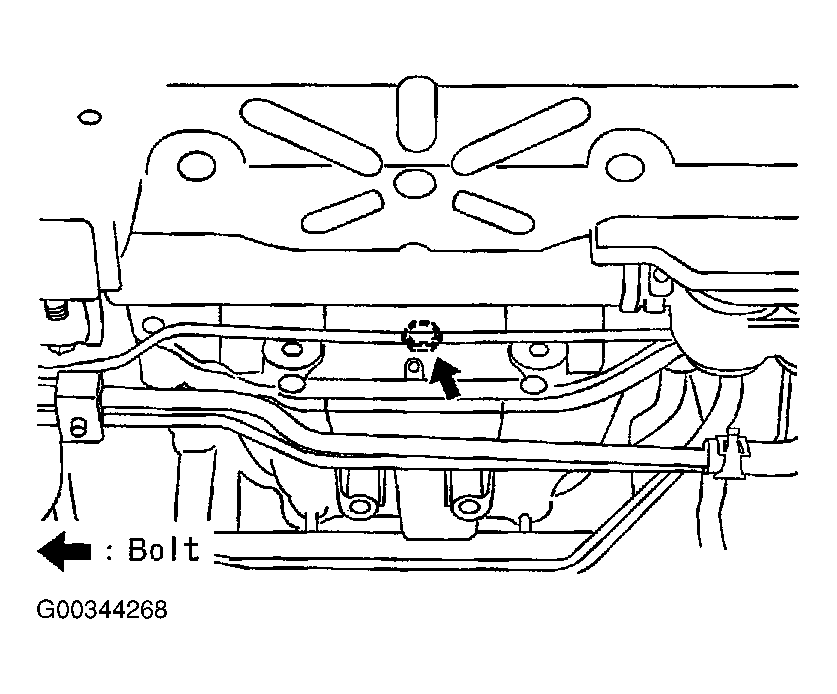

  Fig 5: Locating Torque Converter Bolts

  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:

  • When turning crankshaft, turn it clockwise as viewed from the front of the engine.
  • When tightening the bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts.
  • After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.
• Install crankshaft position sensor (POS). Refer to following:
  1. For FX35, see REMOVAL AND INSTALLATION .
  2. For FX45, see REMOVAL AND INSTALLATION .
  .
• After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to DRAINING & REFILLING , ADJUSTMENT OF A/T POSITION and CHECKING OF A/T POSITION .
