AWD Warning Lamp Indication

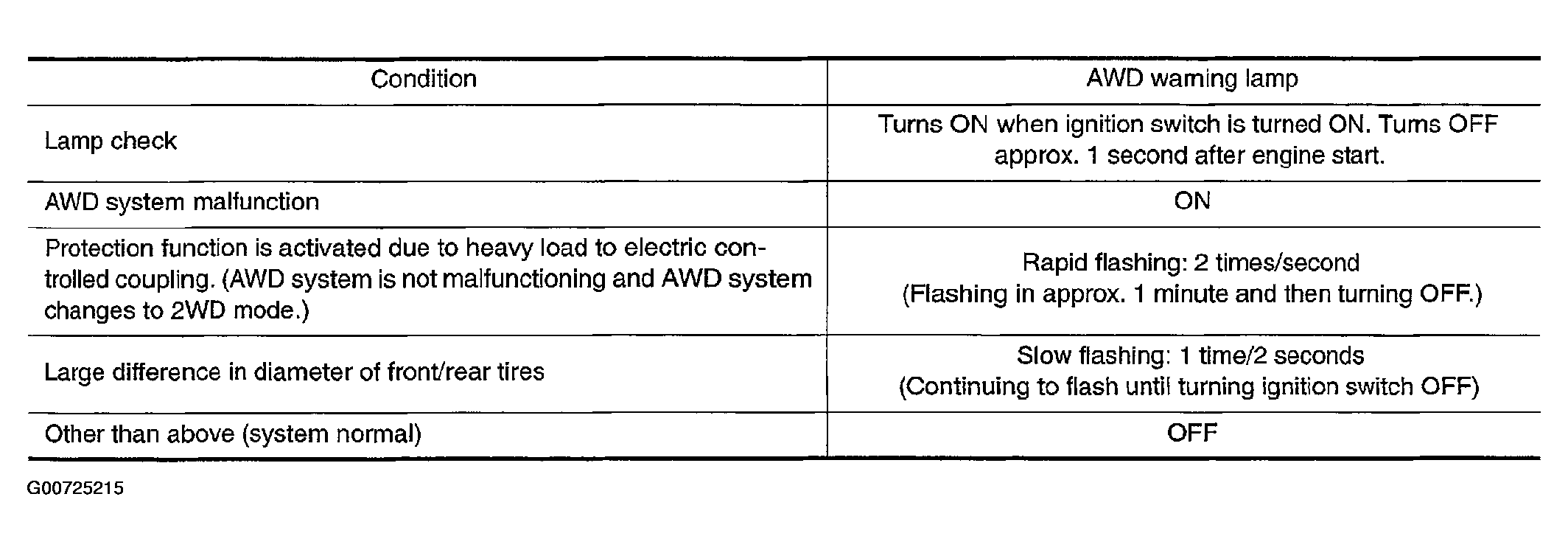

Fig 1: Displaying AWD Warning Lamp Indication
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
