Mainshaft assembly

  1. Separate front case and rear case, then remove mainshaft assembly. Refer to FRONT CASE AND REAR CASE .
  2. Remove snap ring from mainshaft.
  3. Remove spacer from mainshaft.
  4. Remove electric controlled coupling and sprocket from mainshaft.
  5. Remove needle bearing from mainshaft.

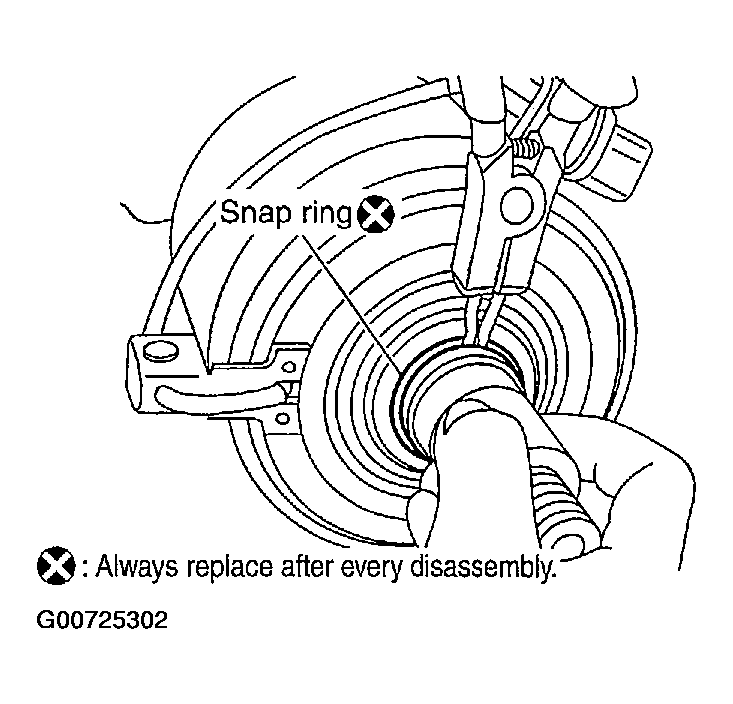

    Fig 1: Removing Snap Ring
    G00725302Courtesy of NISSAN MOTOR CO., U.S.A.
