3. Check Unlock Sensor Ground Circuit

Check continuity between front door lock assembly (driver side) connector D10 terminal 5 (B) and ground.

  1. 5 (B) - Ground : Continuity should exist.

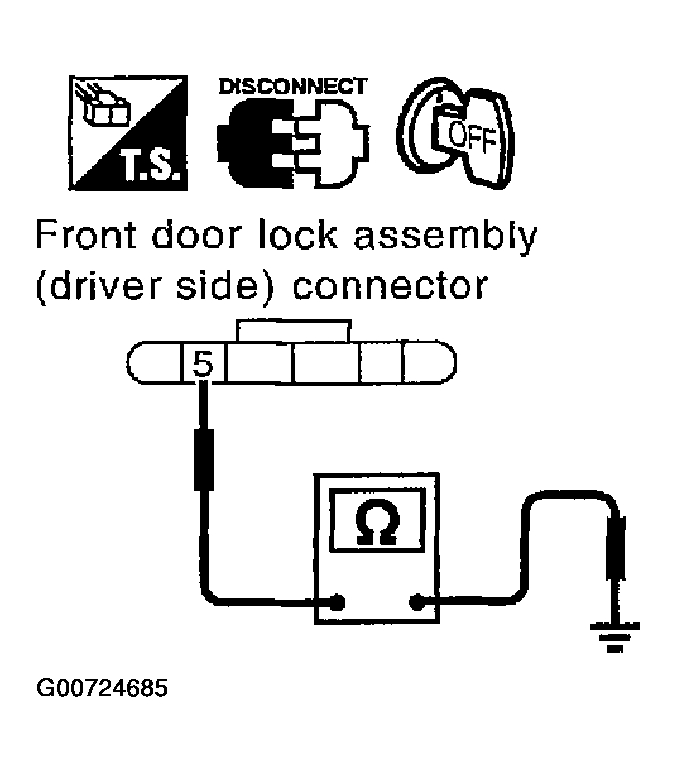

Fig 1: Checking Continuity Between Front Door Lock Assembly (Driver Side) Connector D10 Terminal 5 (B) And Ground
G00724685Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4.

NG : Repair or replace harness.
