Basic Operation

Turn ignition knob to LOCK position.
Connect CONSULT-II CONVERTER and CONSULT-II to data link connector.

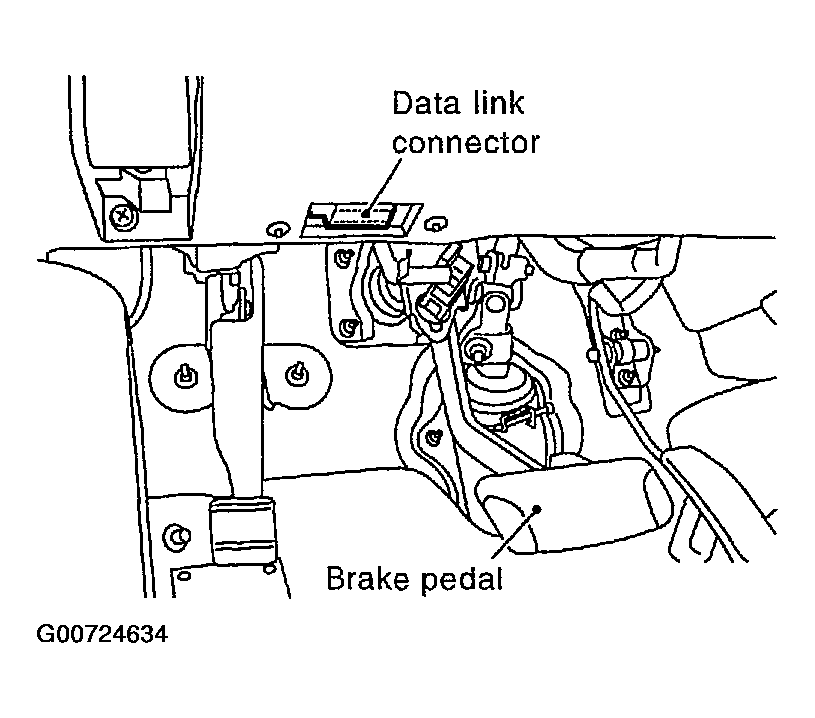

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Use mechanical key to turn ignition switch to ON.
Touch START (NISSAN BASED VHCL) .

Fig 2: CONSULT-II Start Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch INTELLIGENT KEY on SELECT SYSTEM screen.
- If INTELLIGENT KEY is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
Fig 3: CONSULT-II Select System Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode. WORK SUPPORT , SELF-DIAG RESULTS , DATA MONITOR , ACTIVE TEST and ECU PART NUMBER are available.

Fig 4: CONSULT-II Select Diagnosis Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
