Remote Controller Battery Inspection

Check by connecting a resistance (approximately 300ohm) so that the current value becomes about 10 mA.

1. Standard : Approx. 2.5V - 3.0V

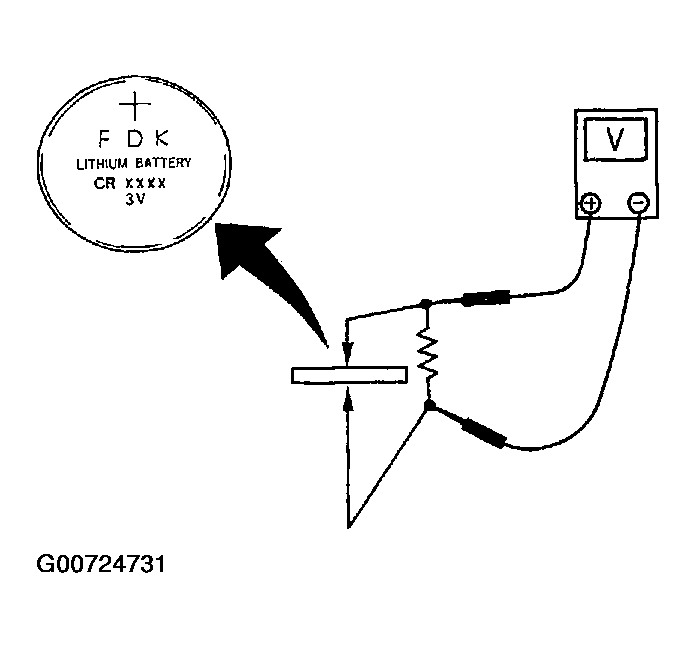

Fig 1: Inspecting Remote Controller Battery

Courtesy of NISSAN MOTOR CO., U.S.A.
