Key Reminder Function

The hazard lamps will flash and the Intelligent Key warning buzzer will sound several times when the door lock is locked or unlocked by door request switch operation.

When ignition switch ON or any door is opened, key reminder function is not operate.

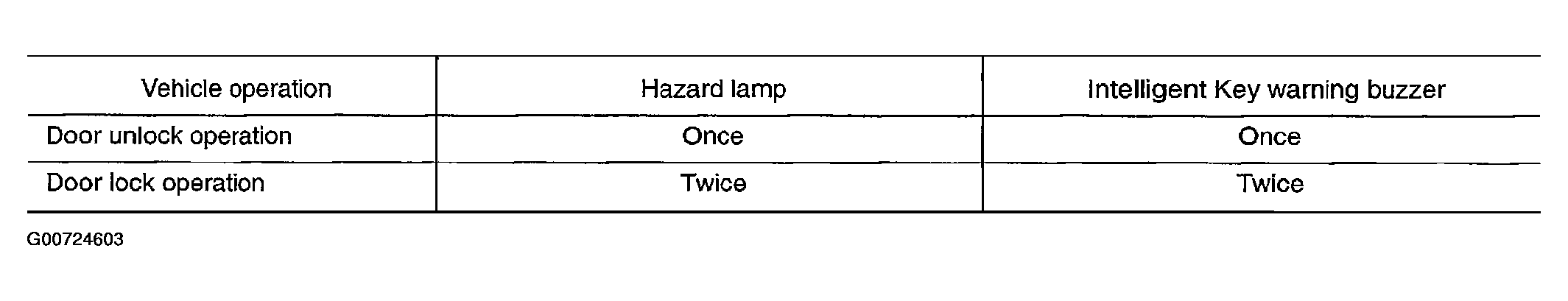

Fig 1: Key Reminder Function Table
G00724603Courtesy of NISSAN MOTOR CO., U.S.A.
