Trouble Diagnosis: Schematic

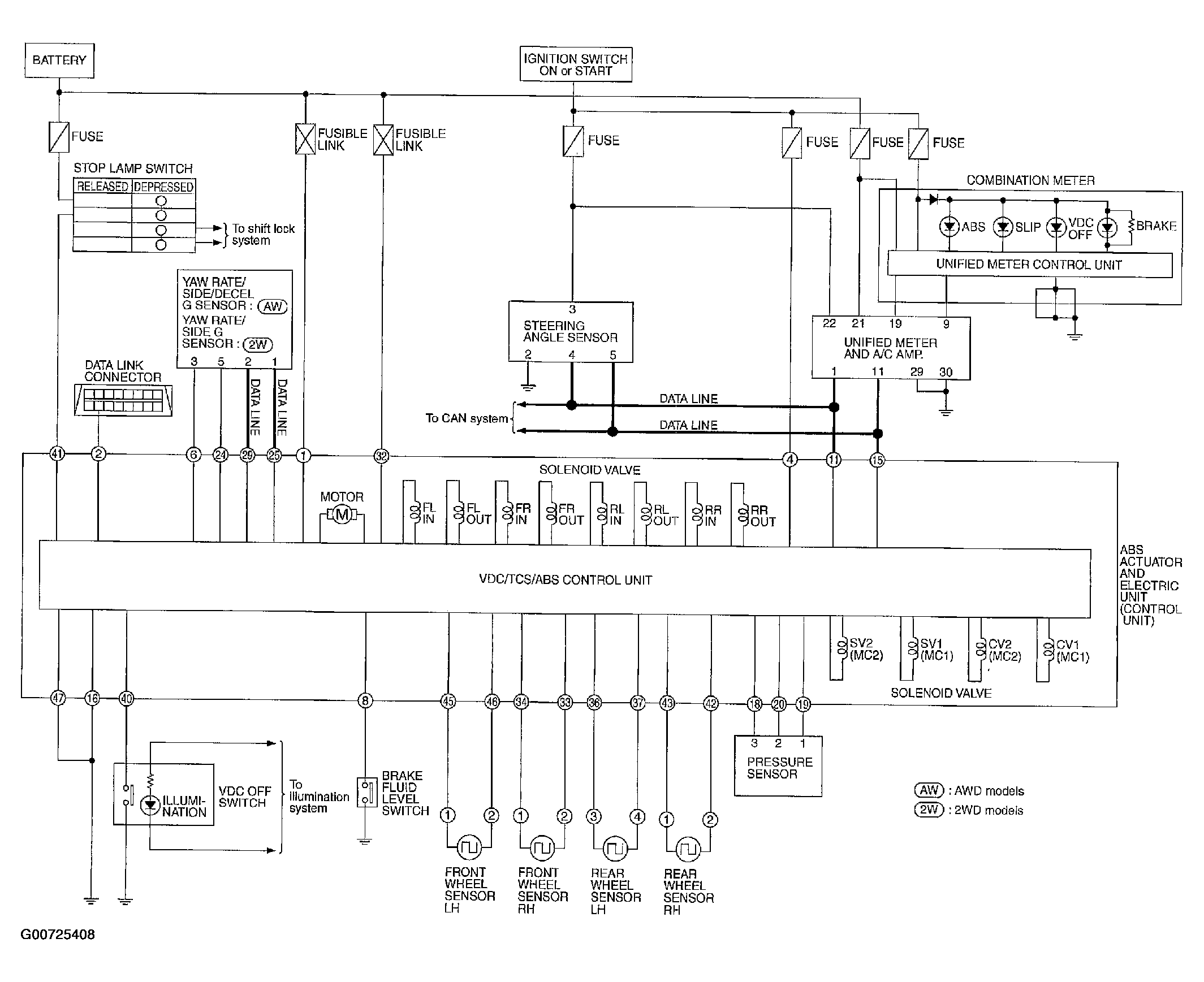

Fig 1: Displaying Brake Control System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
