Fuel Pressure Check

WARNING: This page is about a different car, the 2004 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger .

NOTE:

Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pressure cannot be completely released because S50 models do not have fuel return system .
Use Fuel Pressure Gauge Kit (J-44321) to check fuel pressure .
Do not perform fuel pressure check with system operating. Fuel pressure gauge may indicate false readings .

Release fuel pressure to zero. Refer to FUEL PRESSURE RELEASE .
Install the inline fuel quick disconnected fitting between fuel damper and injector tube.

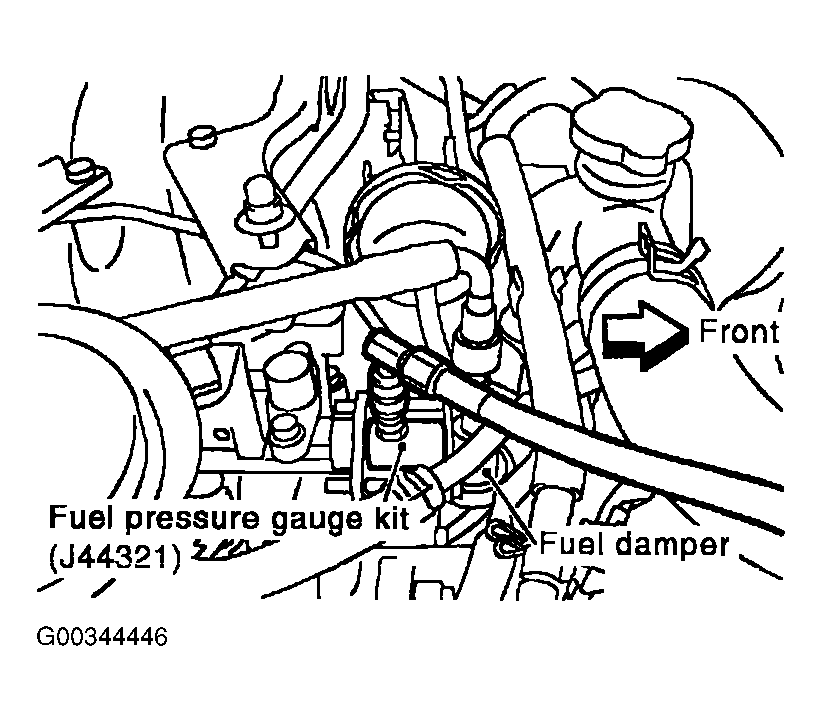

Fig 1: Identifying Fuel Pressure Gage Kit & Fuel Damper
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect the fuel pressure test gauge (quick connector adapter hose) to the inline fuel quick disconnected fitting.

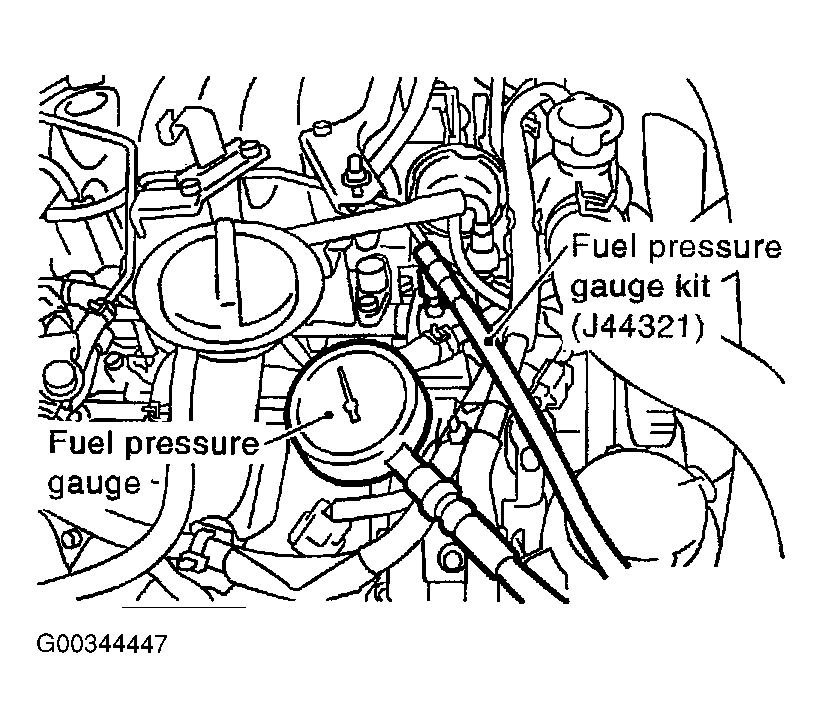

Fig 2: Locating Fuel Pressure Gauge & Kit
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON and check for fuel leakage.
Start engine and check for fuel leakage.
Read the indication of fuel pressure gauge.
1. At idling: Approximately 350 kPa (3.57 kg/cm2, 51 psi)
If result is unsatisfactory, go to next step.
Check the following.
- Fuel hoses and fuel tubes for clogging
- Fuel filter for clogging
- Fuel pump
- Fuel pressure regulator for clogging
  1. If OK, replace fuel level sensor unit, fuel filter and fuel pump assembly.
  2. If NG, repair or replace.
