2. Check Key Fob Function

With CONSULT-II

Check key fob function in "DATA MONITOR" mode with CONSULT-II. When pushing each button of key fob, the corresponding monitor item should be turned as follows.

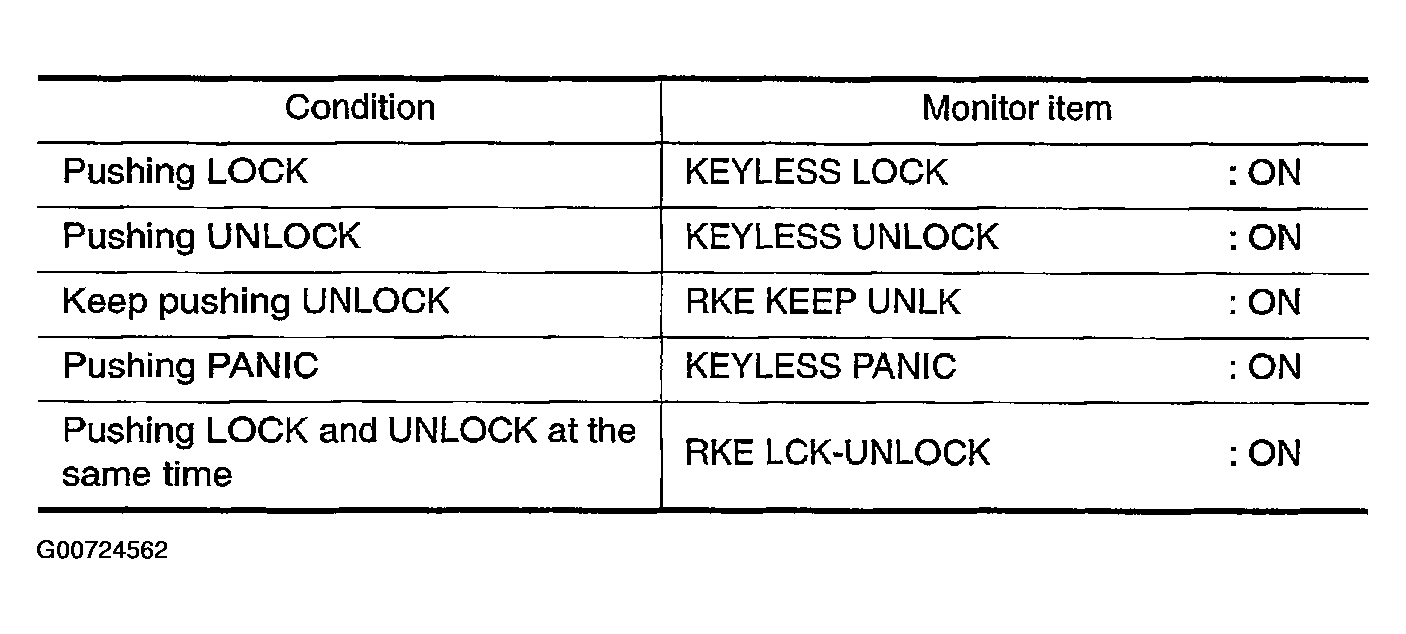

Fig 1: Check Key Fob Function Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

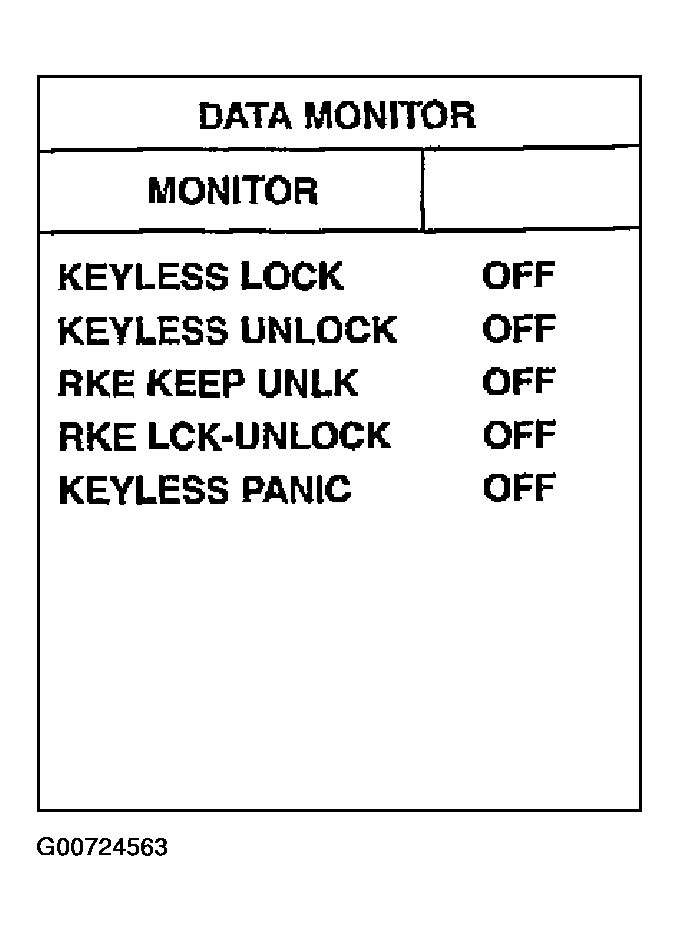

Fig 2: Checking Key Fob Function

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Key fob is OK.

NG : Replace key fob.
