Ignition Signal Check for Display Control Unit

CHECK IGNITION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between display control unit harness connector M75 terminal 12 (G/R) and ground.
  Battery voltage should exist.
OK or NG
1. OK: Replace display control unit.
2. NG: Check harness for open or short between display control unit and fuse.

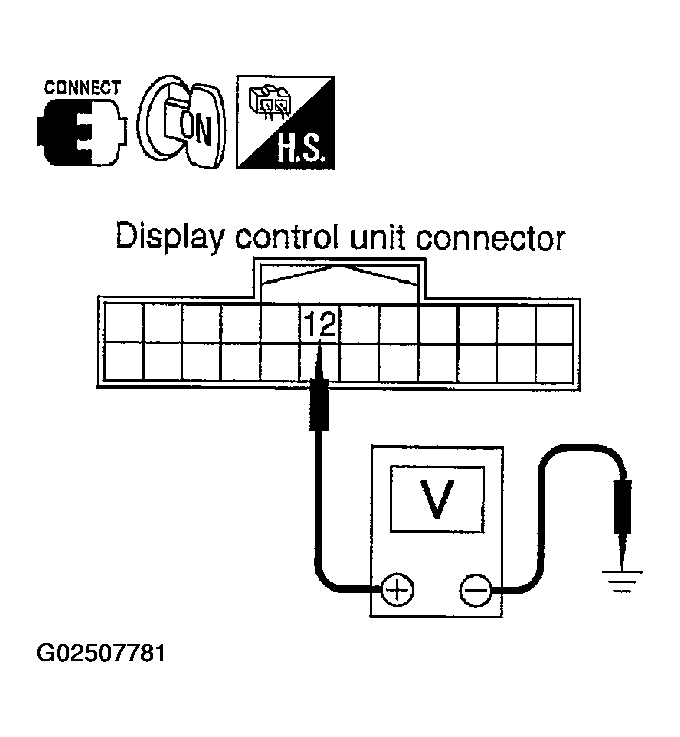

  Fig 1: Checking Voltage Between Display Control Unit Harness Connector M75 Terminal 12 (G/R) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
