Terminals and Reference Value for Display Control unit

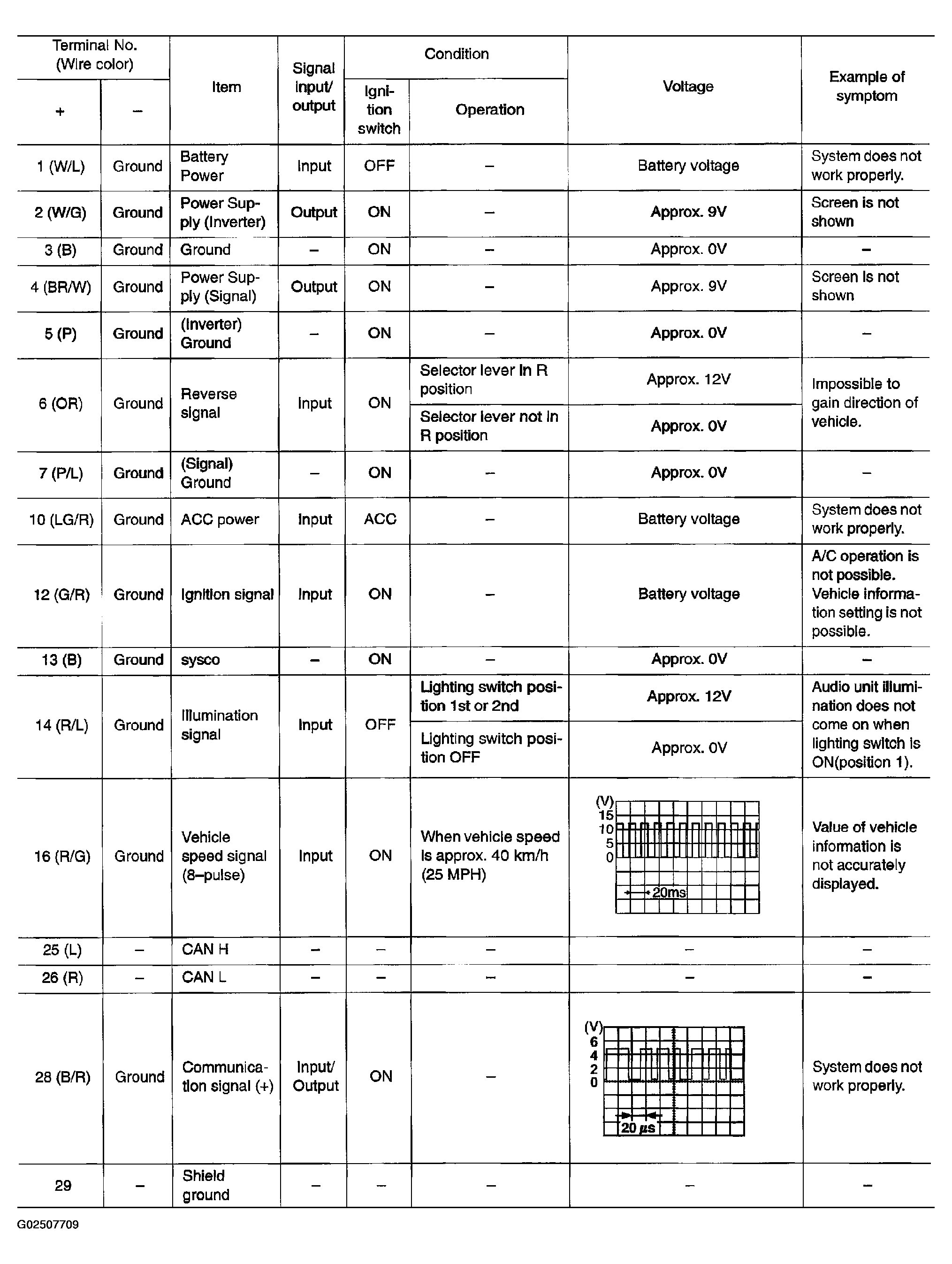

Fig 1: Terminals And Reference Value For Display Control Unit (1 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

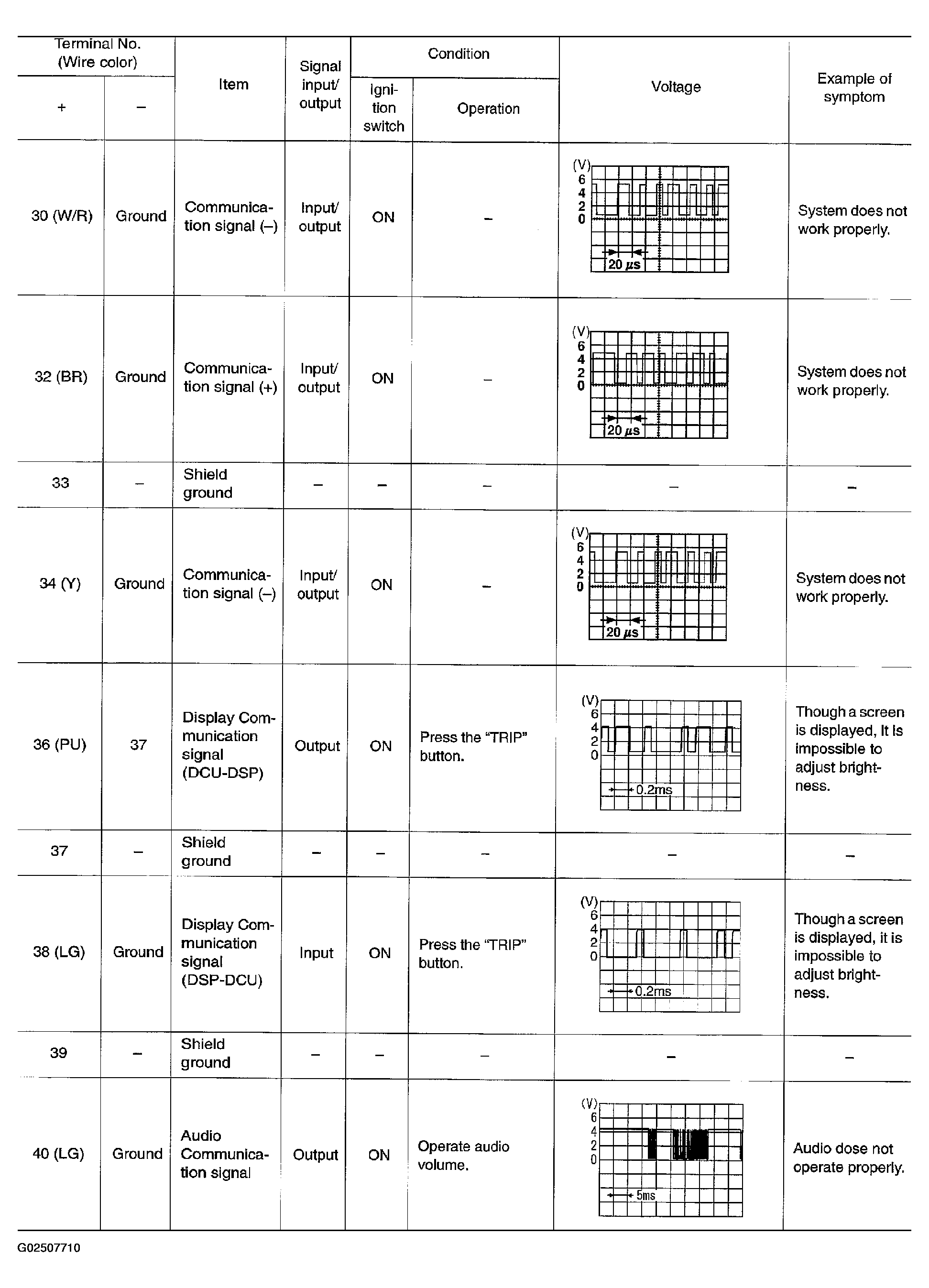

Fig 2: Terminals And Reference Value For Display Control Unit (2 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

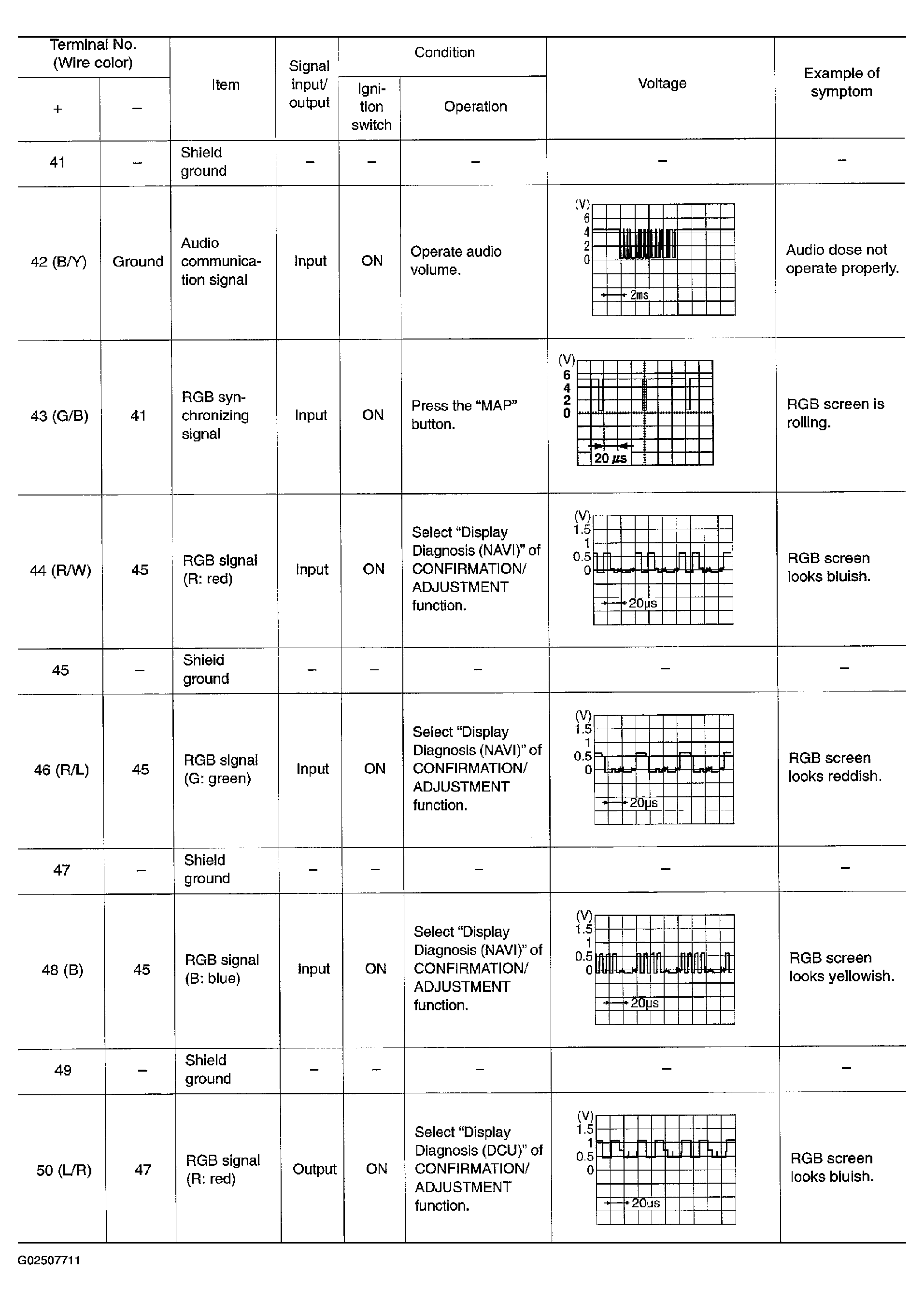

Fig 3: Terminals And Reference Value For Display Control Unit (3 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

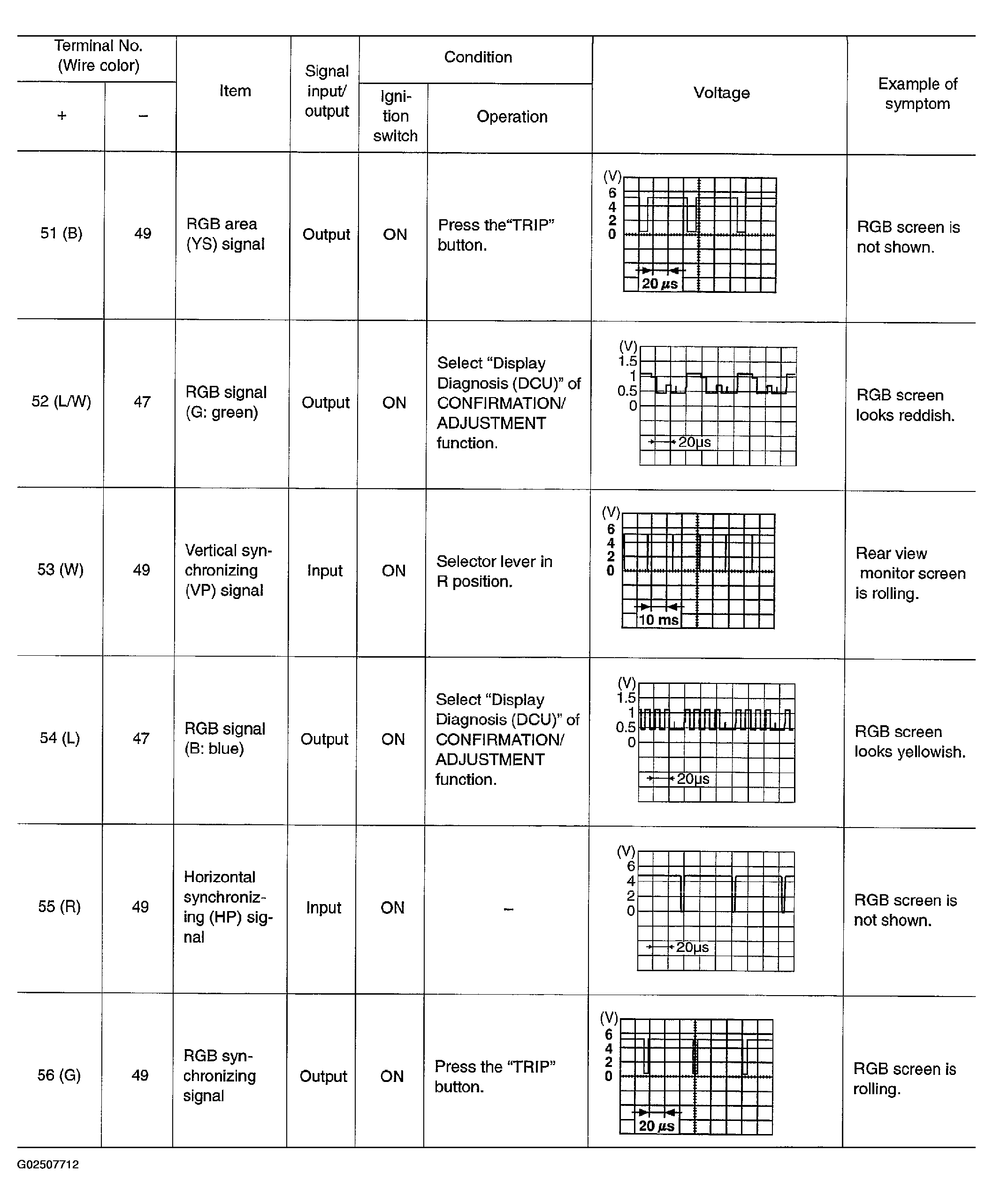

Fig 4: Terminals And Reference Value For Display Control Unit (4 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
