Terminals And Reference Value For Intelligent Key Unit

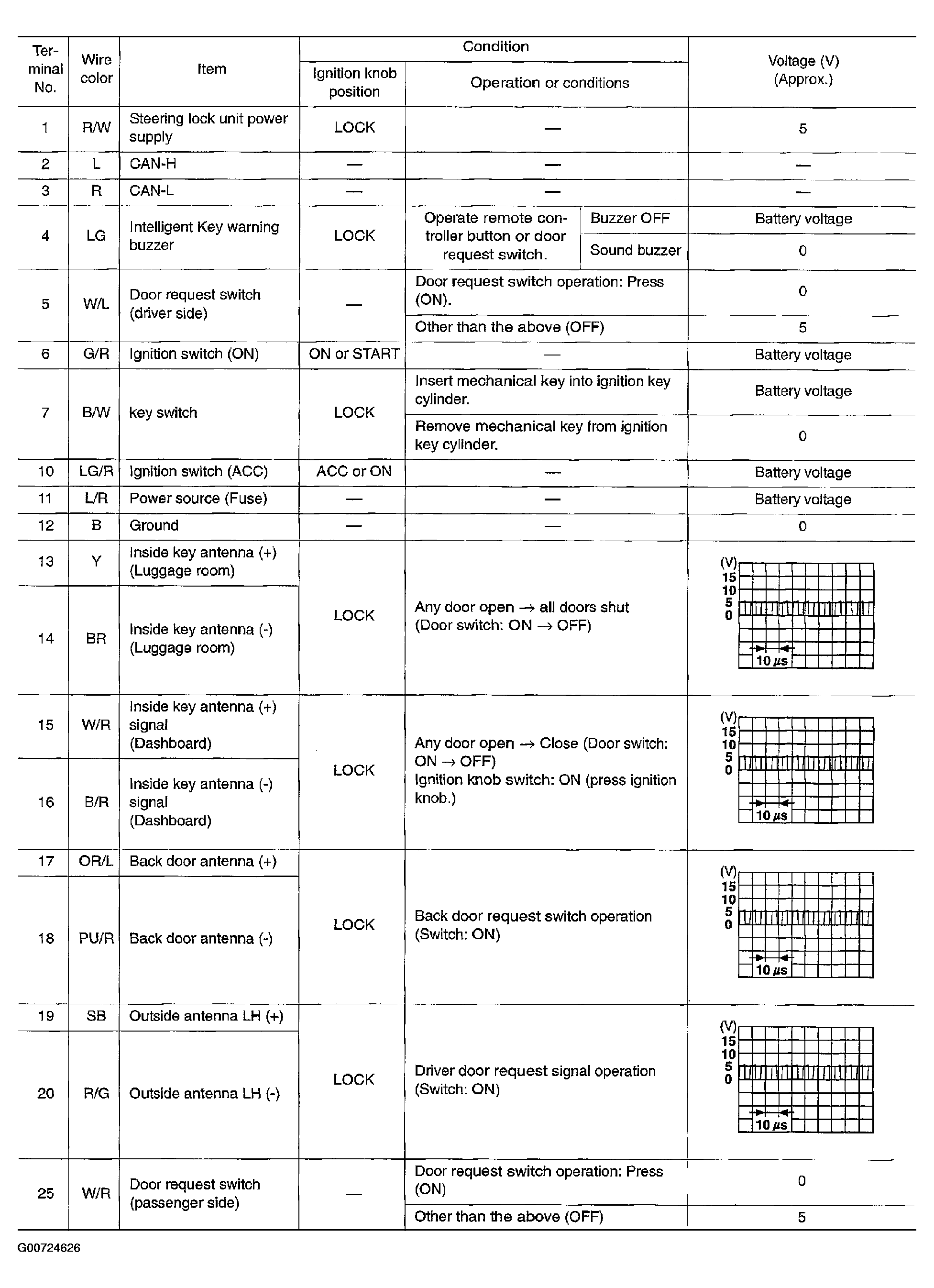

Fig 1: Terminals And Reference Value For Intelligent Key Unit (1-25)
G00724626Courtesy of NISSAN MOTOR CO., U.S.A.

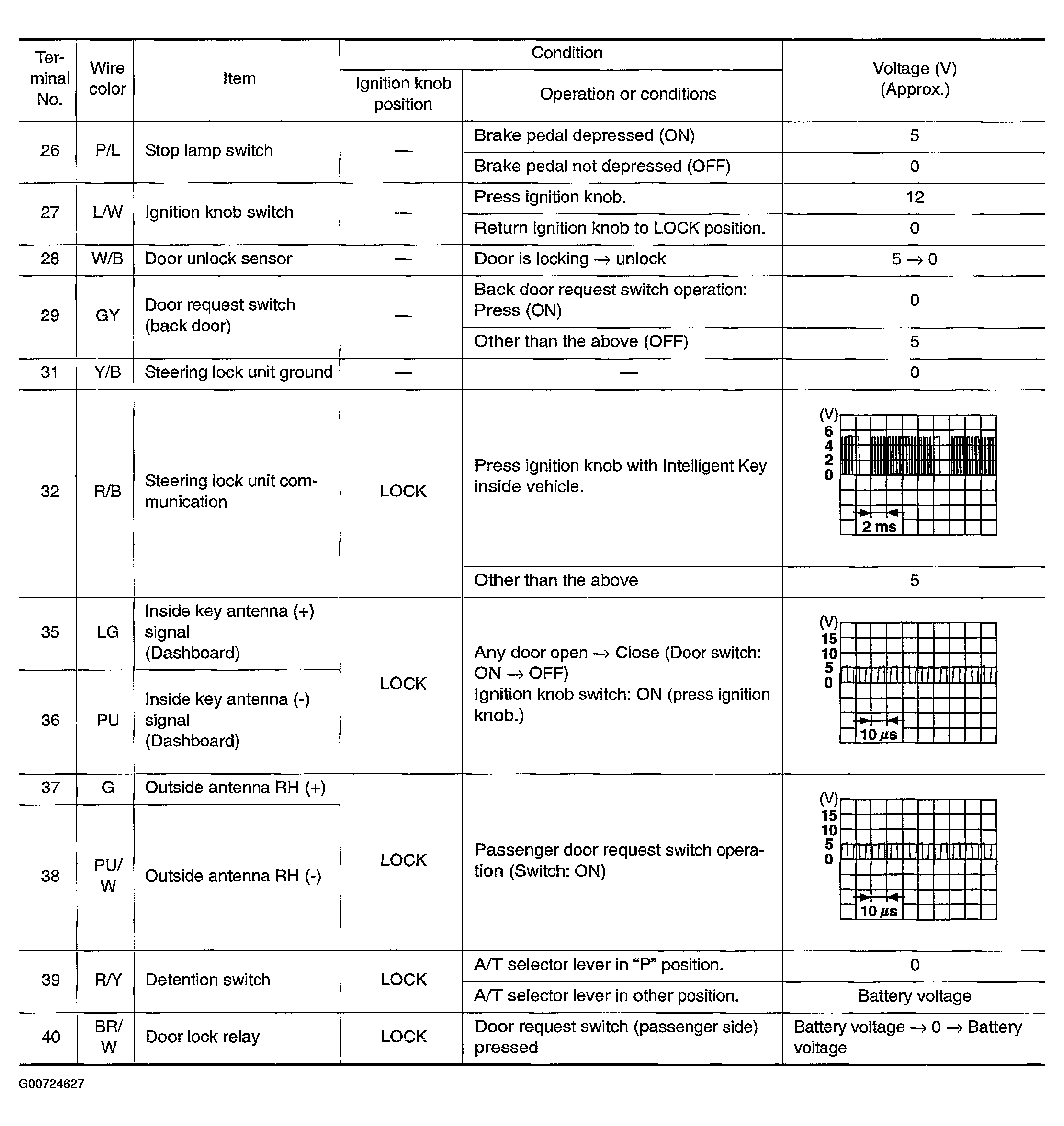

Fig 2: Terminals And Reference Value For Intelligent Key Unit (26-40)
G00724627Courtesy of NISSAN MOTOR CO., U.S.A.
